54 37 047 Removing and Installing/Replacing Trim Panel For Cover Flap

54 37 047 Removing And Installing/Replacing Trim Panel For Cover Flap







When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.







Necessary preliminary tasks:
- Open rear module partly and support it







NOTE: Shown removed here for purposes of clarity.

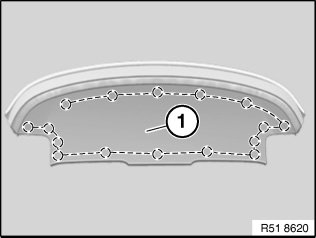

Release bolt of trim panel for cover flap (1) at the designated sites.

Tightening torque 54 37 27AZ .
