Removing and Installing/Replacing Right Coupling Fastener Hydraulic Cylinder

54 37 205 Removing And Installing/Replacing Right Coupling Fastener Hydraulic Cylinder







Necessary preliminary work:
- Remove side trim upper section







IMPORTANT:
- Hydraulic fluid may emerge from the disconnected lines and the open connections on the hydraulic cylinder.
- Protect components and work area with suitable materials (e.g. cloths).







NOTE:
- Hydraulic system must be at zero pressure.
- Open screw on hydraulic unit 1.5 turns.







Removing hydraulic cylinder:

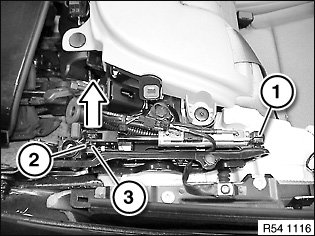

- Slide retaining clip (1) upwards.
- Detach ball socket at side.
- Remove retaining ring (2).
- Drive through bearing pin (3).
- Feed out hydraulic cylinder.







Replacing hydraulic cylinder:

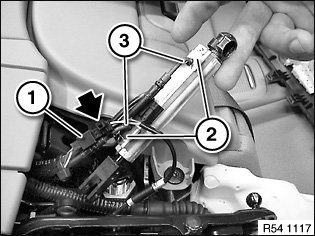

Unfasten plug connection (1) and disconnect.

Slide open retaining rings (2) with screwdriver.

Detach hydraulic lines (3).







NOTE:
- Carry out function test
- Check fluid level.
