Convertible Top Hinge: Service and Repair

54 37 067 Removing And Installing/Replacing Hinge







Necessary preliminary work:
- Remove hinge cover







Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing).
- Microencapsulated screws must not be retightened
- Thread of nut must be cleaned beforehand in event of repeated use







NOTE: A helper is required for the following operations.







IMPORTANT:

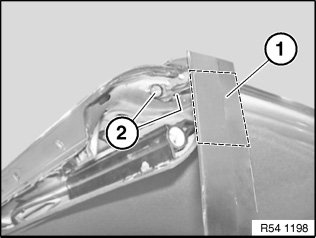

- Tape off cover (1) of roof hinge bracket in marked area.
- Risk of damage.

With a second person helping, secure roof shell at front against tilting.

Unfasten screws (2).

Installation note:
Replace microencapsulated screws.

Tightening torque 54 37 10AZ.

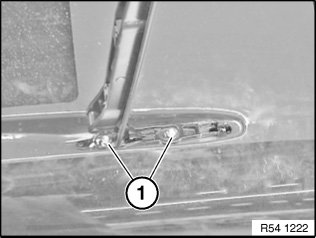

Release nuts (1) on roof hinge bracket.

Installation note:
Replace nuts.

Screw on bracket loosely.

Bracket should still be able to be slid in order to centre itself.

Close soft top.

Screw down rear nut and open soft top.

Screw down front nut.

Tightening torque: 54 37 10AZ.







Check gap dimensions for soft top.
