Convertible Top Deck Lid: Service and Repair

41 63 060 - Removing and installing convertible top compartment lid





Special tools required:
- 54 0 240 54 0 240 Installation Support for Rear Module






Necessary preliminary tasks:
- Connect charger.
- Open rear end module.

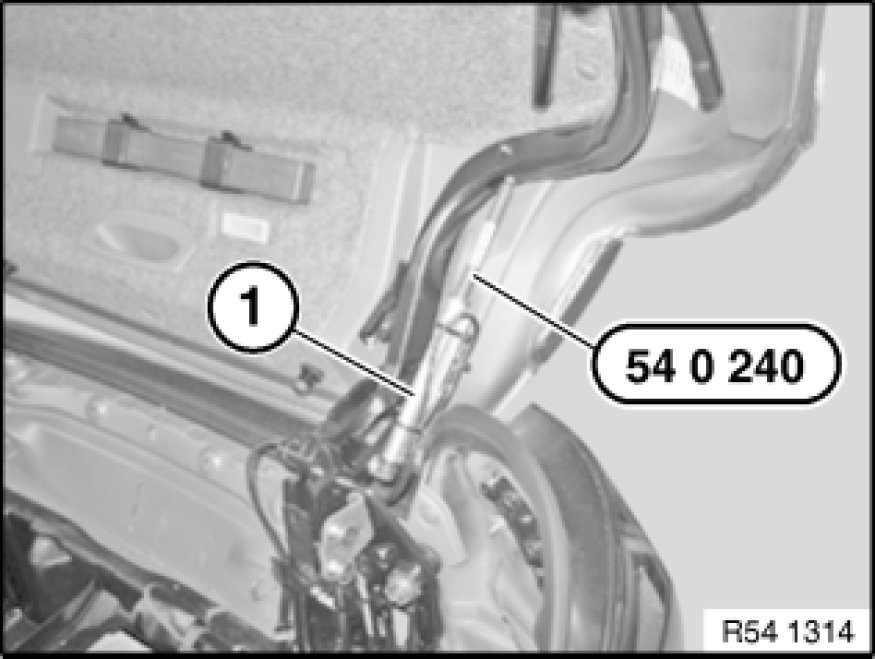

Clip special tool 54 0 240 54 0 240 Installation Support for Rear Module onto hydraulic cylinder on left and right.

Important!
- The opening in the assembly support must face towards the rear of the vehicle.
- Risk of damage!
Remove special tool after completing work.





Open rear lid with ignition key.






Important!
Risk of damage!

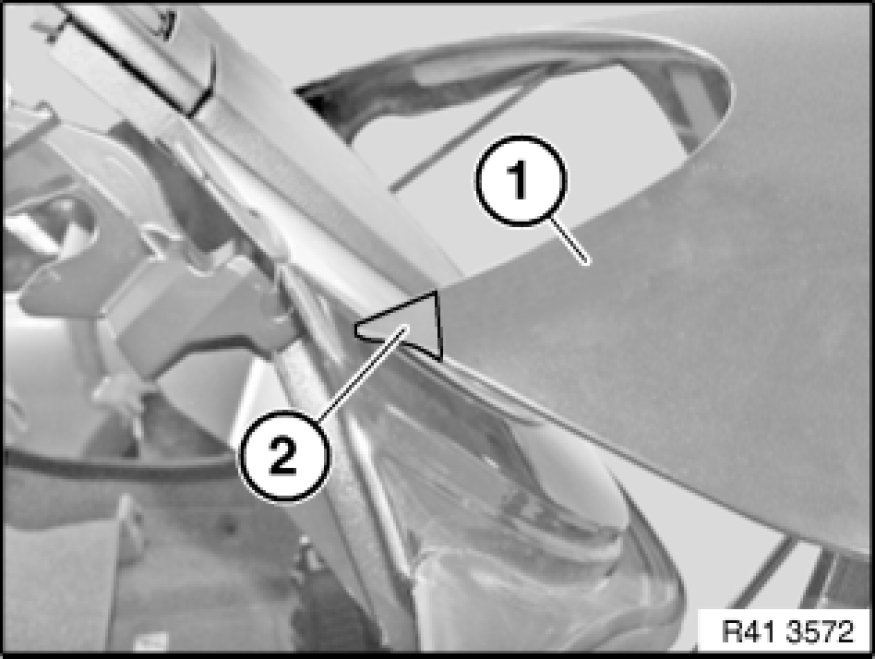

Tape off rear lid (1) in area shown (2) on both sides with plastic adhesive tape.





Carry over the work step shown symmetrically to the other side of the vehicle.
Pay attention to spacer plates.
Release screws (2). Tightening torque 41 63 1AZ 41 63 Convertible Top Compartment Lid.
Remove convertible top compartment lid (3).

Installation:
- To pre-adjust, mount the convertible top compartment lid at the screw impressions on the hinge.
Adjust convertible top compartment lid Adjustments.
