Convertible Top Deck Lid Seal: Service and Repair

51 71 ... - Replacing convertible top compartment lid seal

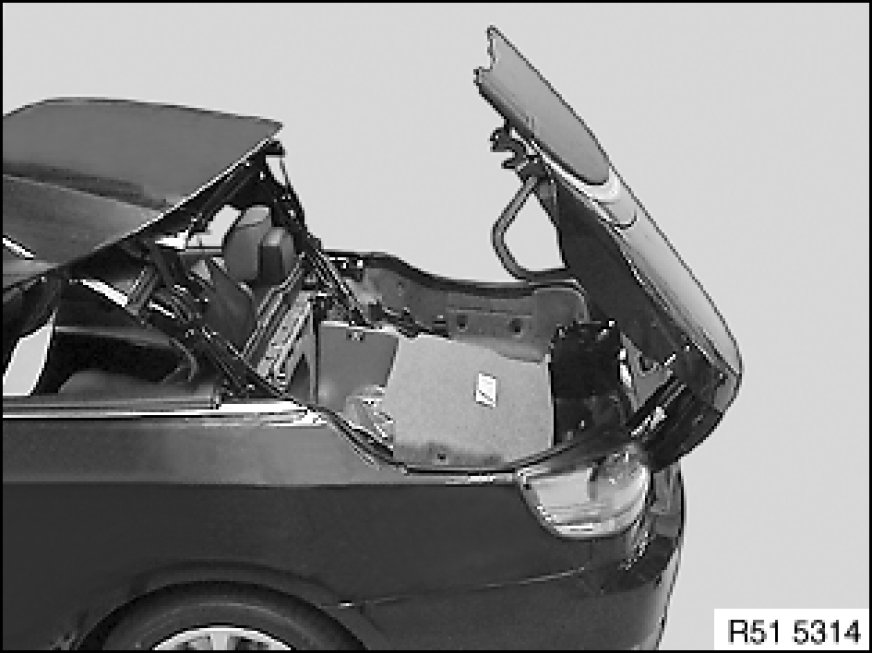

Open rear end module (see picture).





Release sheet screw (1) and thin sheet screw (2) on left and right.

Installation:
Make sure screws are installed in correct positions.





Retract folding roof fully and open rear end cover.

Important!
Do not stretch, kink or crush seal.

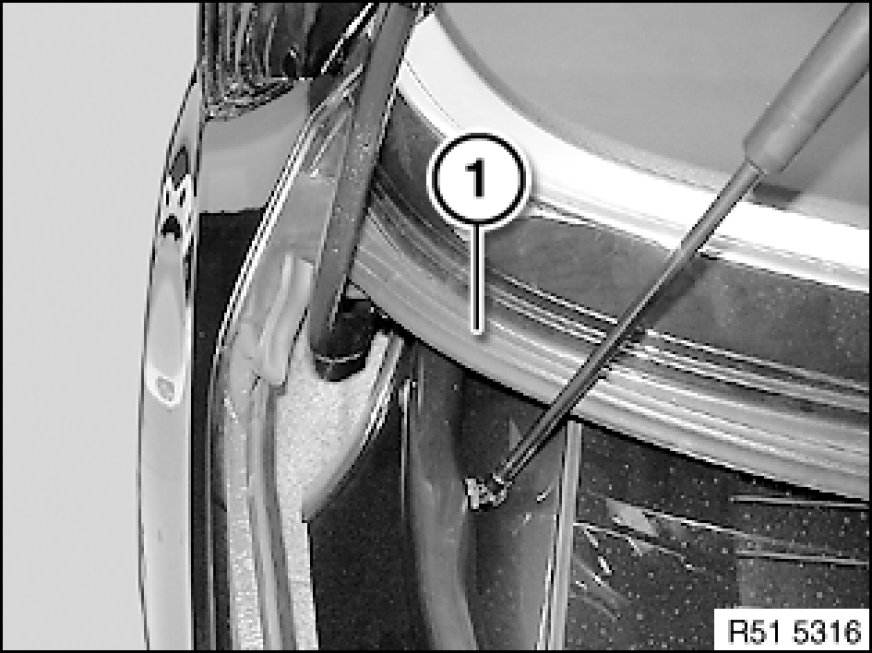

Pull off seal (1) from left to right.

Installation:
Moisten seal with soapy water.
Carry out installation from left to right (check screw fastening points).
