Power Mirror Motor: Service and Repair

67 13 001 - Replacing drive unit for electrically operated left or right door mirror





Necessary preliminary tasks:
- Remove mirror glass Replacing Mirror Glass for mirror

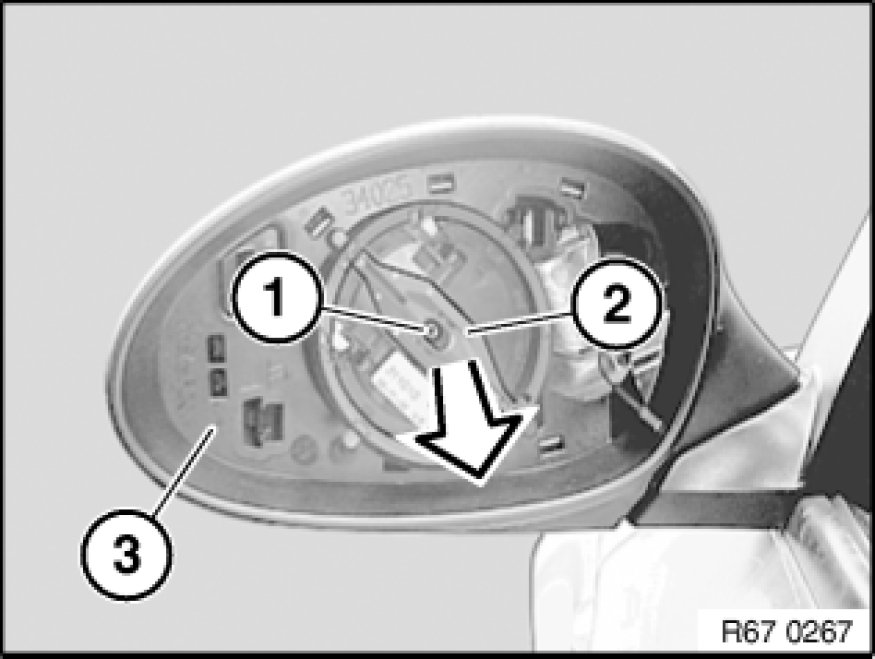

Release screw (1).
Remove drive for electrically operated door mirror (2) in direction of arrow from mirror housing (3).






Installation:

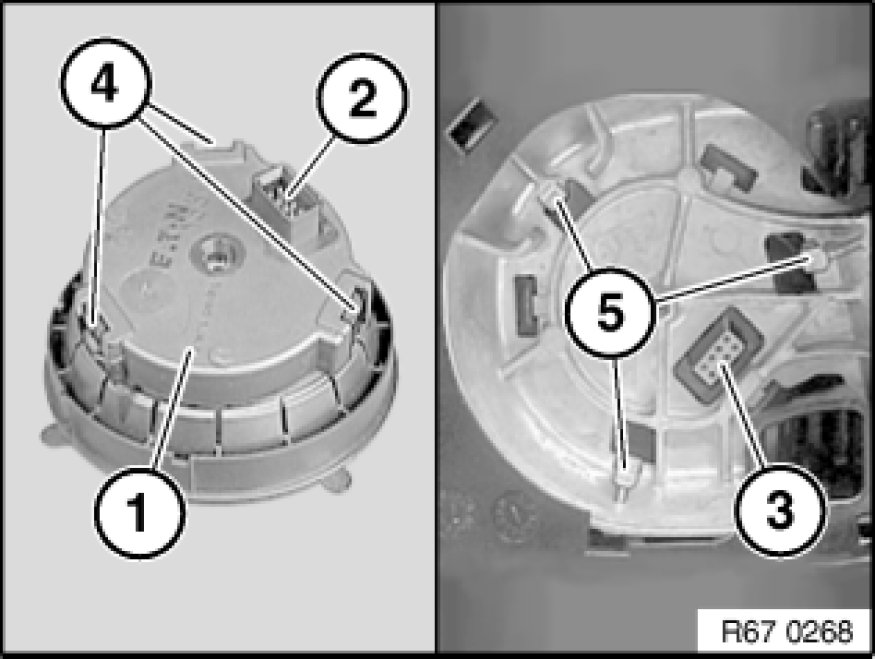

Fit drive for electrically operated door mirror (1) so that pin housing (2) engages exactly in plug housing (3) and locators (4) slide into guides (5).
