Removing and Installing/Replacing Storage Tray In Luggage Compartment on Left

51 47 ... - Removing and installing/replacing storage tray in luggage compartment on left





Necessary preliminary tasks:
- Remove luggage compartment trim on left side panel

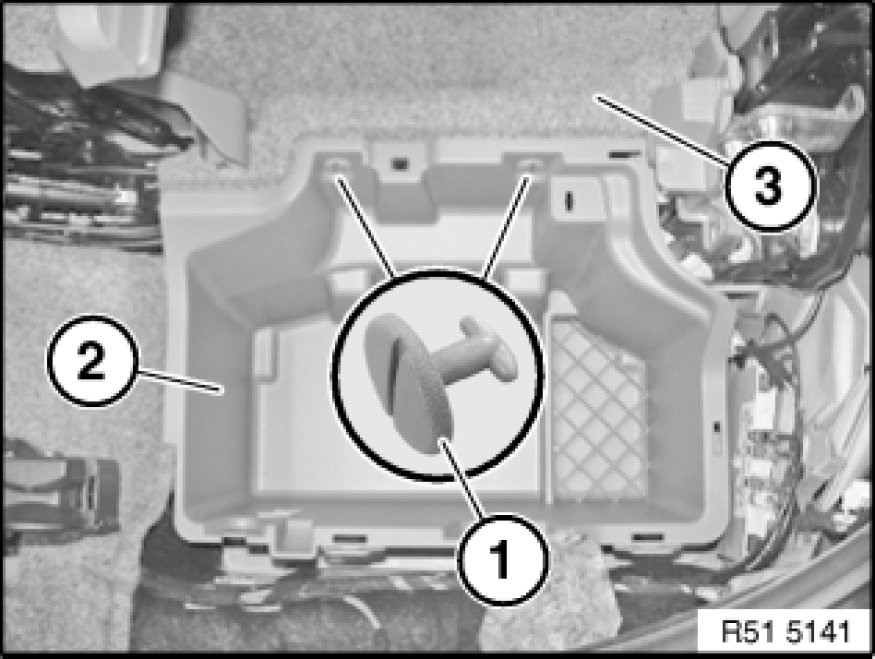

Release clips (1).
Remove storage tray (2).

Installation:
If necessary, replace faulty clips (1).
Make sure storage tray (2) is correctly seated on panel (3).
