Removing and Installing/Replacing Speaker Trim on Left or Right Side Trim Panel

51 43 018 - Removing and installing/replacing speaker trim on left or right side trim panel





Necessary preliminary tasks:
- Remove speaker in side trim panel 65 13 090 Removing and Installing/Replacing Speaker (Mid-Range Speaker, Rear Side Trim Panel)

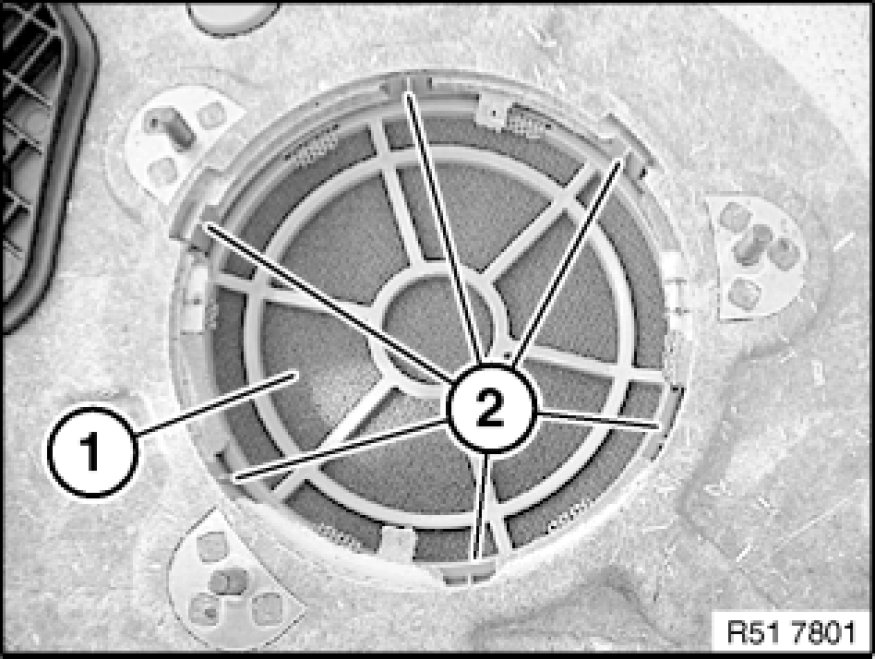

Carefully release speaker trim (1) at catches (2) and remove in outwards direction.

Note:
Catches (2) are held in position by installed speaker.

Installation:
Make sure catches (2) are in correct position. Speaker trim (1) can only be installed in one position.





Installation:

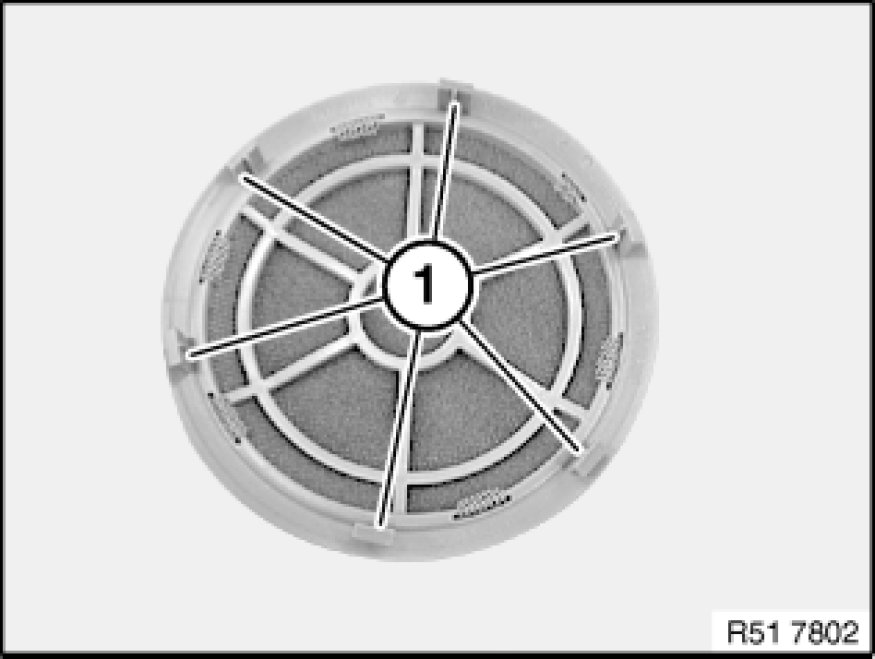

Catches (1) must not be damaged or missing.
