51 43 075 Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Right

51 43 075 Removing And Installing / Replacing Side Trim Panel, Footwell, On A-Pillar, Right

Special tools required:







Necessary preliminary tasks:
- Remove front entrance cover strip (inside)
- Remove trim for instrument panel, bottom left







Detach mucket (1) in area of side trim panel (2).

Unclip side trim panel (2) 00 9 317with special tool in direction of arrow at retaining points (3) and remove.







Installation:

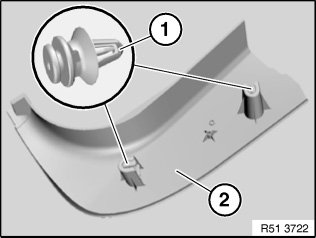

If necessary, lever out clips (1) remaining in bores.

If necessary, replace faulty clips (1).

Position side trim panel (2) preinstalled with clips (1) on associated bores and clip into place.
