51 47 065 Removing and Installing / Replacing Finishing Strip at Front Left or Right Entrance





51 47 065 Removing and installing/Replacing Finishing Strip At Front Left Or Right Entrance

Special tools required:







IMPORTANT:
- Risk of damage.
- Do not raise finishing strip (2) over entire length simultaneously.

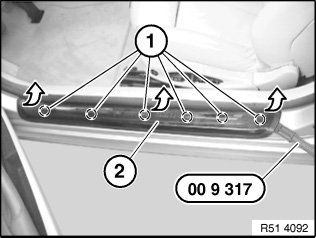

Unclip clips (1) for finishing strip (2) with special tool 00 9 317.

Remove finishing strip (2).







Installation:

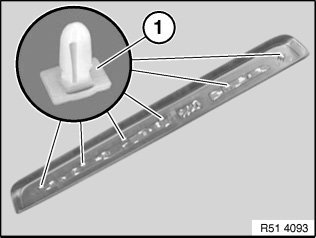

If necessary, replace faulty clips (1).
