51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip

51 47 000 - Removing and installing/replacing front (inside) left or right entrance cover strip





Important!
Risk of damage!
Risk of breakage to connecting lug on B-pillar trim panel.





Important!
Risk of damage!

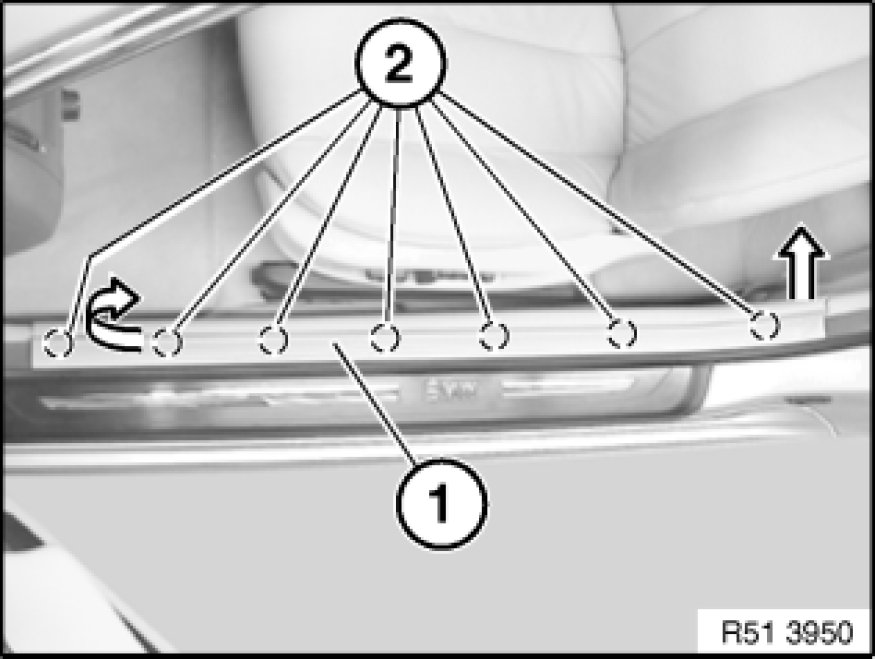

Do not raise entrance cover strip (1) over entire length simultaneously.

Detach entrance cover strip (1) at clips (2) from front to rear.
Detach entrance cover strip (1) from B-pillar trim panel at bottom in direction of arrow.
If necessary, lever out clips (2) from floor pan.

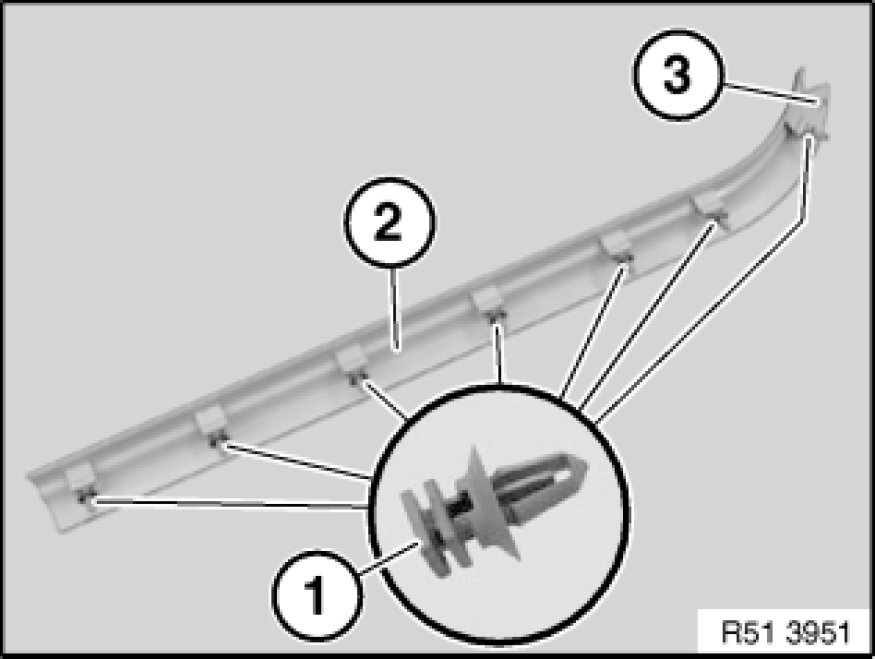

Installation Note:
Fit entrance cover strip (2) with preinstalled clips (1).
If necessary, replace faulty clips (1).
Connecting lug (3) of entrance cover strip (2) must not be damaged.
