Headliner: Service and Repair

51 44 150 - Replacing trim for front roofliner





Necessary preliminary tasks:
- Open convertible top or retractable hardtop.
- Remove front roofliner/roof switch centre trim insert Removing and Installing/Replacing Roof Switch Centre
- Remove both front mirror lights
- Remove both sun visors Service and Repair
- Remove both trims for front roof pillar Removing and Installing/Replacing Trim for Roof Pillar at Front (A-pillar), Left or Right





E93 only:

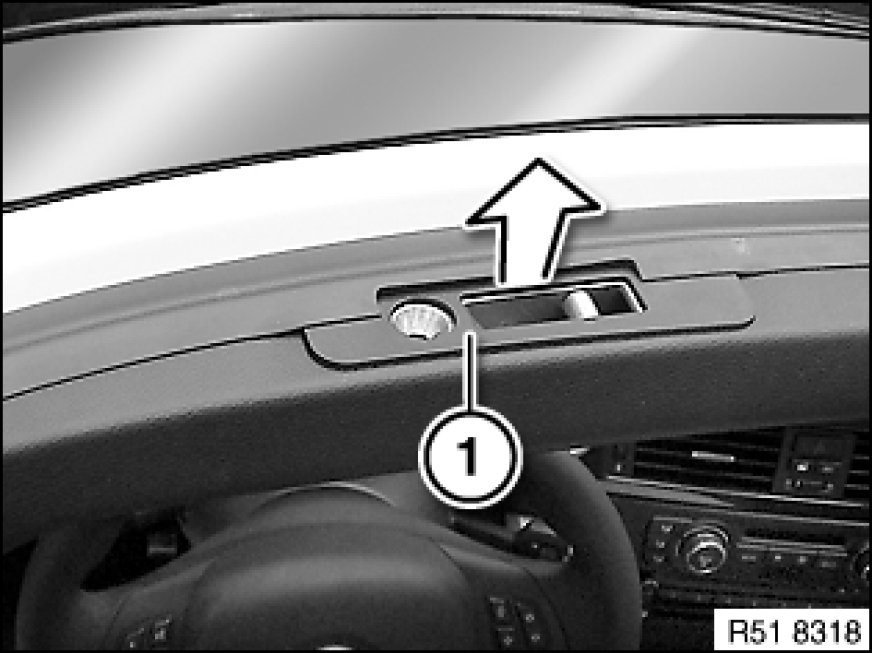

Unclip trim (1) on left/right towards top.

Installation:
Replace trim (1).

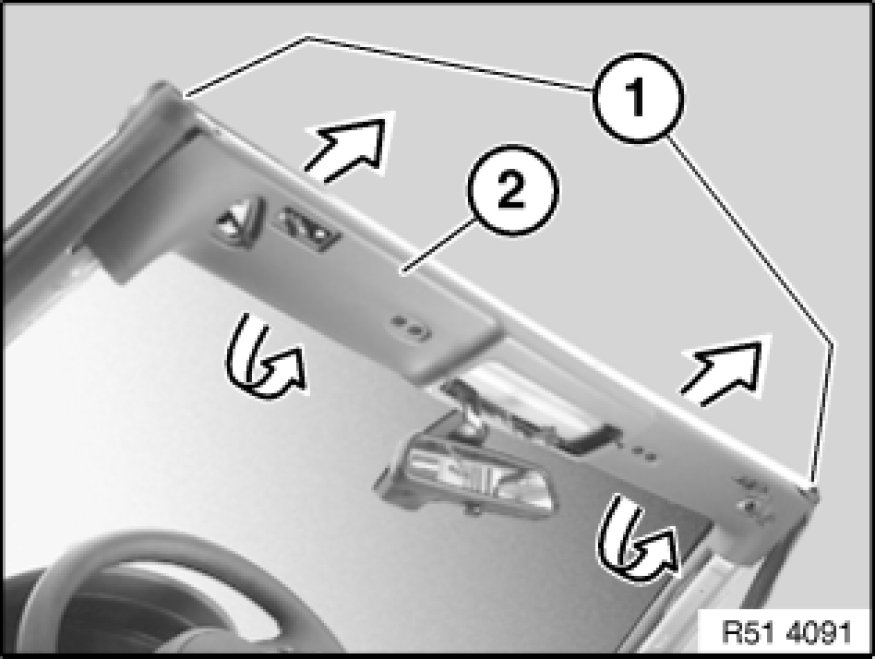

Detach mucket (1) in area of trim (2).
Pull back trim (2) in direction of arrow and remove.

Installation:
Make sure mucket (1) is correctly seated.
