Glove Compartment Lock Actuator: Service and Repair

67 11 590 Removing And Installing/replacing Actuator Drive For Glove Box Locking Mechanism







NOTE: For purposes of clarity, picture shows glove box removed.







Open glovebox.
Release locks.
Remove cover (1).







Remove circlip from damper (1).

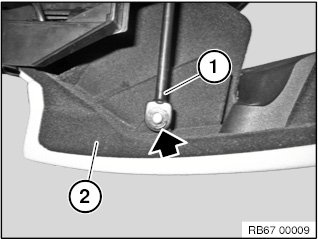

Detach damper (1) from glove box flap (2).

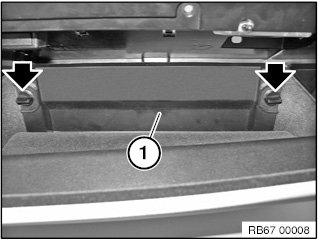

Reach through the opening that was exposed during the first work step and detach the stop pad (1) in the direction of the arrow from the glove box (2).

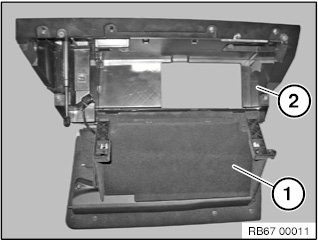

Detach flap (1) from glove box (2) as shown.

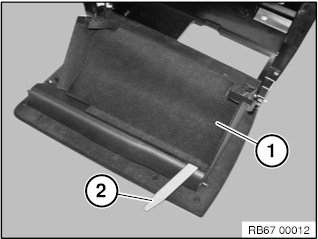

Unclip the cover inside (1) with a suitable tool (2).







Press the locks to the inside at the marked points and secure with suitable tool at point (1).







Example: Securing with pop rivet (1).

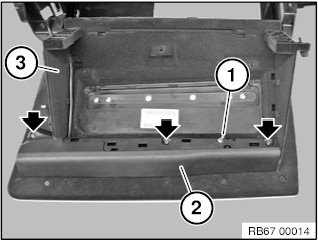

Release screws at marked points.

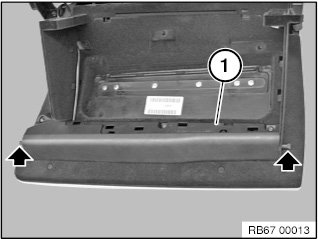

Detach lock unit (2) from glove box flap (3).

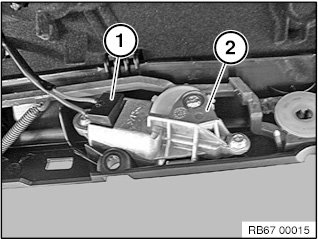

Release plug connection (1) at actuator drive (2) and disconnect.
Remove lock unit with actuator drive (2).







Removed lock unit with actuator drive (1).
