51 16 265 Removing and Installing/Replacing Rear Section of Rear Console Trim

51 16 265 - Removing and installing/replacing rear section of rear console trim





Special tools required:
- 00 9 317






Necessary preliminary tasks:
E92 only:

- Remove filler element from rear seat
E93 only:

- Remove armrest Removing and Installing Complete Armrest (Filler Element) For Rear Seat Backrest for rear seat backrest

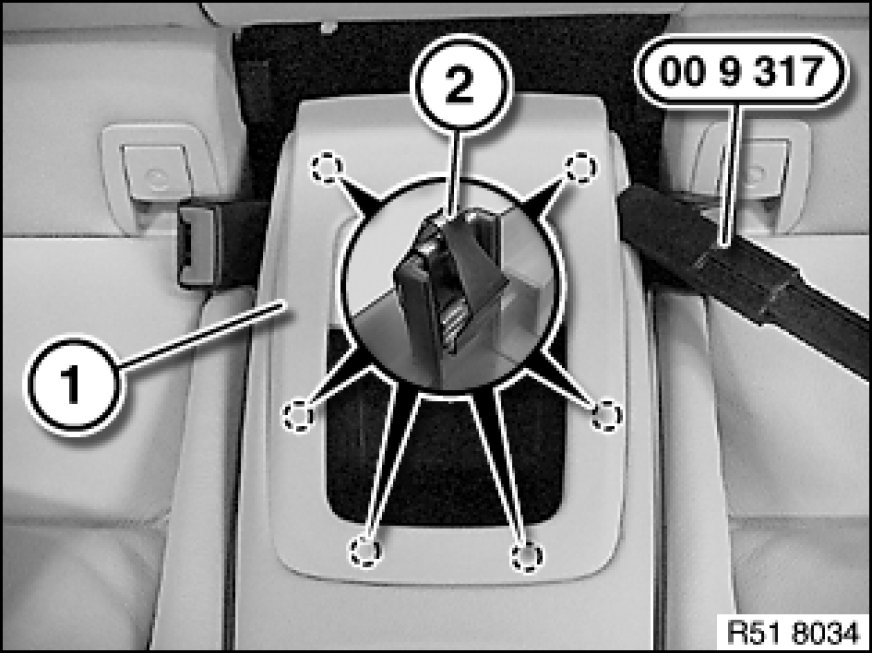

Apply special tool 00 9 317 at side and unclip trim (1) in upward direction from retaining clips (2).

Installation:
Clips (2) must not be damaged.





Replacement:

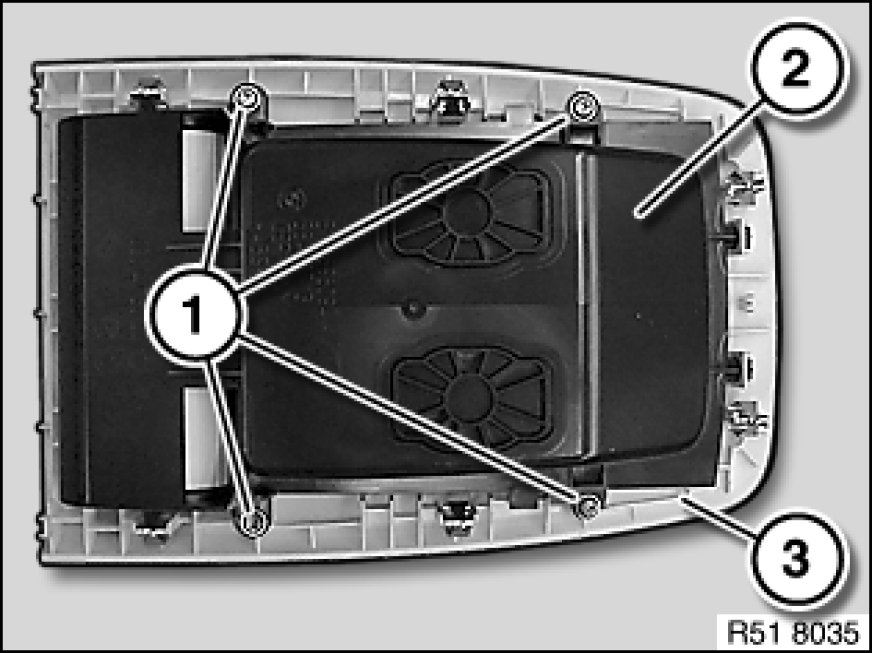

Release screws (1) and remove oddments tray (2) from trim (3).
