51 16 260 Removing and Installing/Replacing Front Section of Rear Console Trim

51 16 260 - Removing and installing/replacing front section of rear console trim





Special tools required:
- 00 9 317





Apply special tool 00 9 317 at side and unclip trim (1) in upward direction from retaining clips (2).

If necessary, disconnect plug connections and remove trim (1).

Installation:
Clips (2) must not be damaged.





Replacement:

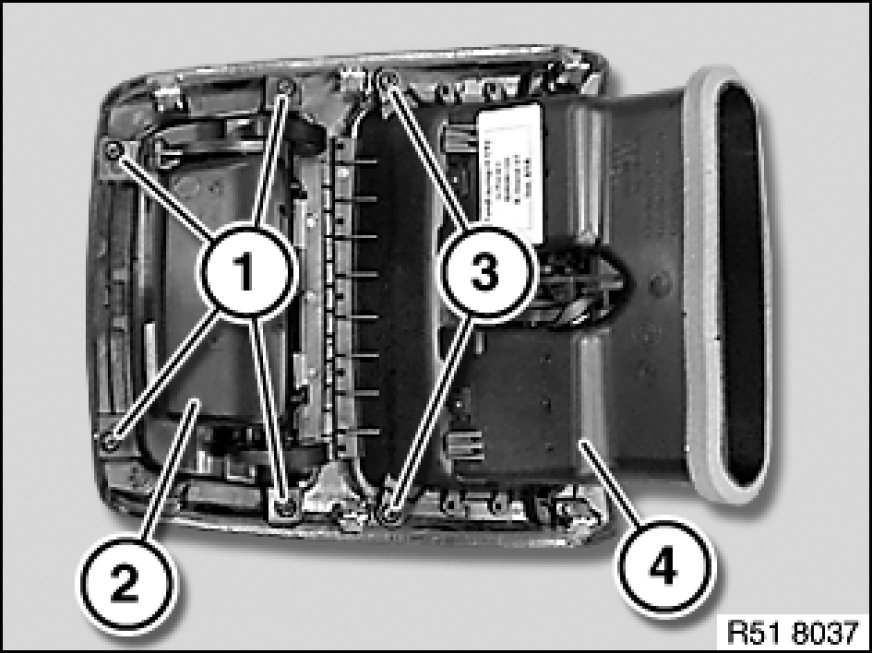

Release screws (1) and remove ashtray/oddments tray (2).

Release screws (3) and remove oddments tray/fresh-air grille (4).
