51 16 213 Replacing Trim for Storage Compartment

51 16 213 - Replacing trim for storage compartment





Necessary preliminary tasks:
- Remove trim for storage compartment 51 16 212 Removing and Installing Trim for Storage Compartment
- Modify insert for centre console 51 16 154 Removing and Installing/Replacing Insert For Centre Console
- M3: Modify switch block
Version with controller:
- Modify controller Removing and Installing/Replacing Front Controller
E93 only:
- Modify switch for convertible top operation Service and Repair





Version without controller:

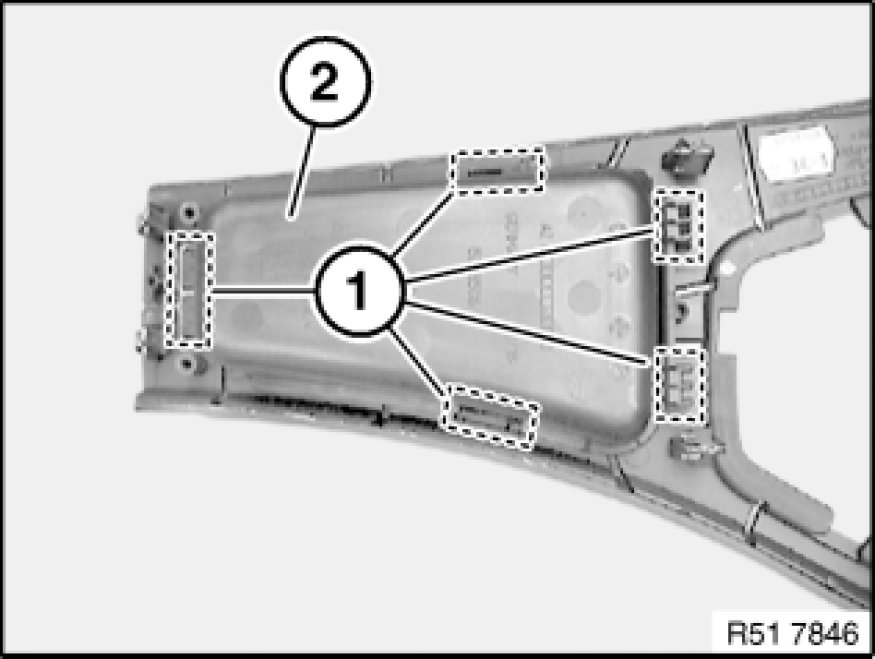

Carefully release catches (1) and remove storage tray (2).
