51 16 212 Removing and Installing Trim for Storage Compartment

51 16 212 - Removing and installing trim for storage compartment





Special tools required:
- 00 9 317






Necessary preliminary tasks:
Version with manual transmission:

- Remove gaiter for gear lever 25 11 081 Replacing Shift Lever Cover
Version with automatic transmission:

- Remove finisher for preselector lever 51 16 210 Removing and Installing/Replacing Trim For Preselector Lever

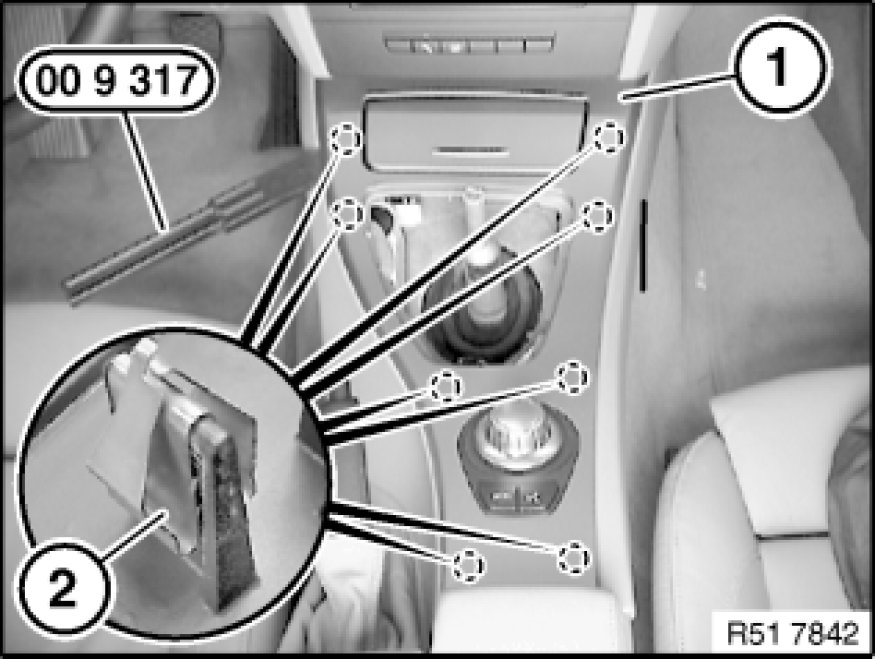

Release trim (1) with special tool 00 9 317 from retainers (2).

If necessary, disconnect plug connections and remove trim (1) towards top.





Installation:

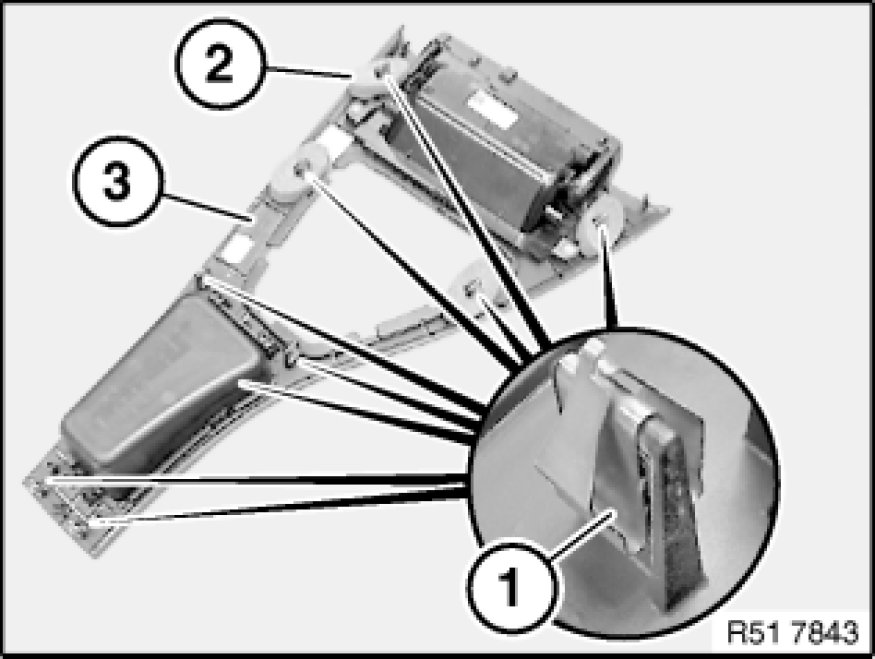

Following parts on trim (3) must not be damaged or missing:

(1) - Clips
(2) - 4 x foam material
