51 16 206 Removing and Installing / Replacing Centre Armrest

51 16 206 - Removing and installing / replacing centre armrest





Necessary preliminary tasks:
- Move both front seats forwards
- Remove rear console 51 16 270 Removing and Installing/Replacing Rear Console





Note:
Open centre armrest otherwise spring (1) will be under too much tension.

Disengage spring (1) with screwdriver (2).

Installation:
Make sure spring (1) is correctly seated.

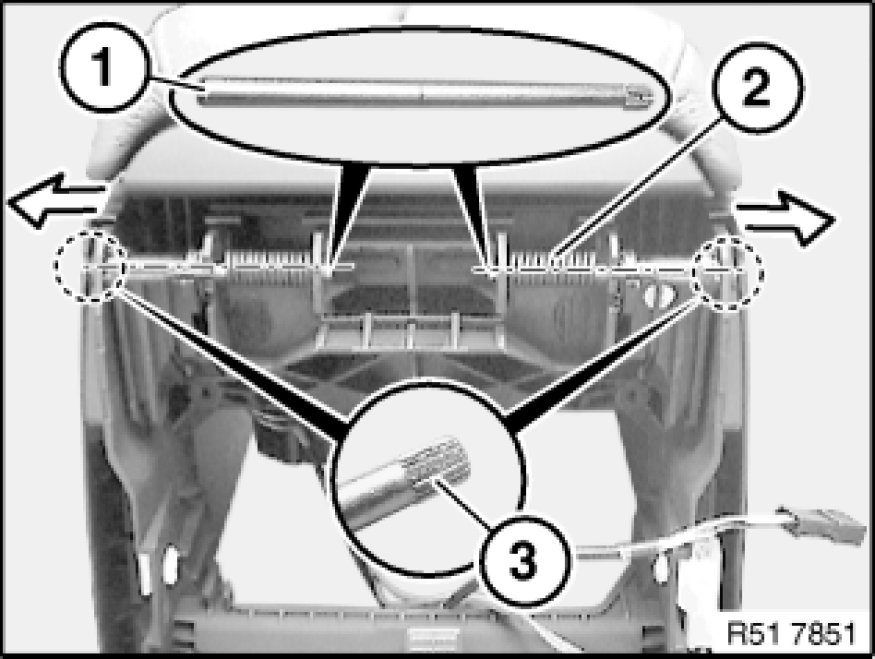

Drive out hinge shafts (1).

Note:
Hinge shafts (1) are secured on the outside with toothing (3).

Remove spring (2), open centre armrest and feed out of storage compartment.
