51 71 382 Removing and Installing/Replacing Rear Tensions Struts

51 71 382 Removing And Installing/Replacing Rear Tensions Struts







IMPORTANT:
- Observe safety instructions for raising the vehicle
- Driving without the tension strut is not permitted.

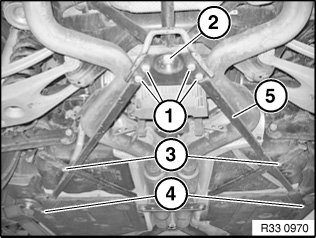

Release screws (1, 2, 3, 4).

Installation:
Make sure screws are installed in correct positions.
- Screws (1) M10x25
Tightening torque 51 71 33AZ .

- Screw (2) M12x1.5x50
Tightening torque 51 71 34AZ .

- Screw (3) M8x25
Tightening torque 51 71 32AZ .

- Screw (4) M12x1.5x35
Tightening torque 51 71 35AZ .
