51 61 018 - Removing and installing/replacing diagonal strut, front end, right

51 61 018 - Removing and installing/replacing diagonal strut, front end, right





Warning!
Scalding hazard!
Only perform work after engine has cooled down.





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Driving without the diagonal strut is not permitted!





Necessary preliminary tasks:
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection
- If necessary, remove radiator seal Removing and Installing/Replacing Radiator Seal





Important!
Diagonal strut on right side must be installed in direction of travel ahead of diagonal strut on left side.

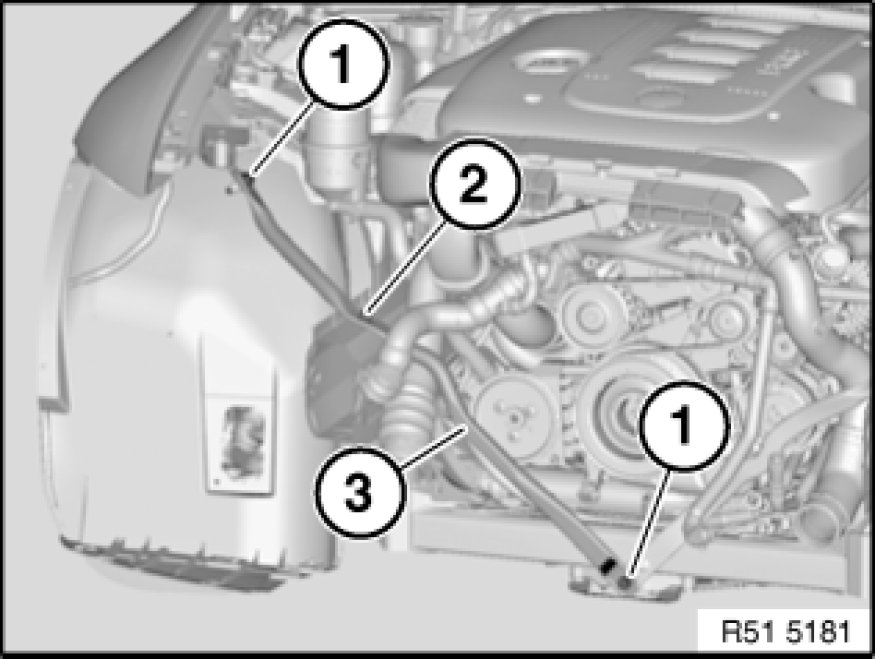

Release screws (1) and nuts (2).

Feed out diagonal strut (3) towards top.

Installation Note:
Replace screws.
Replace self-locking nut.
Tightening torque 51 71 11AZ Specifications.
