51 71 038 Removing and Installing/Replacing Front Left or Right Wheel Arch Cover (Front Section)

51 71 038 - Removing and installing/replacing front left or right wheel arch cover (front section)





Necessary preliminary tasks:
- If necessary, remove front wheel 36 10 300 Removing or Installing Front or Rear Wheel

Note:
Work shown on 320d by way of example, deviations in detail are possible in other models.

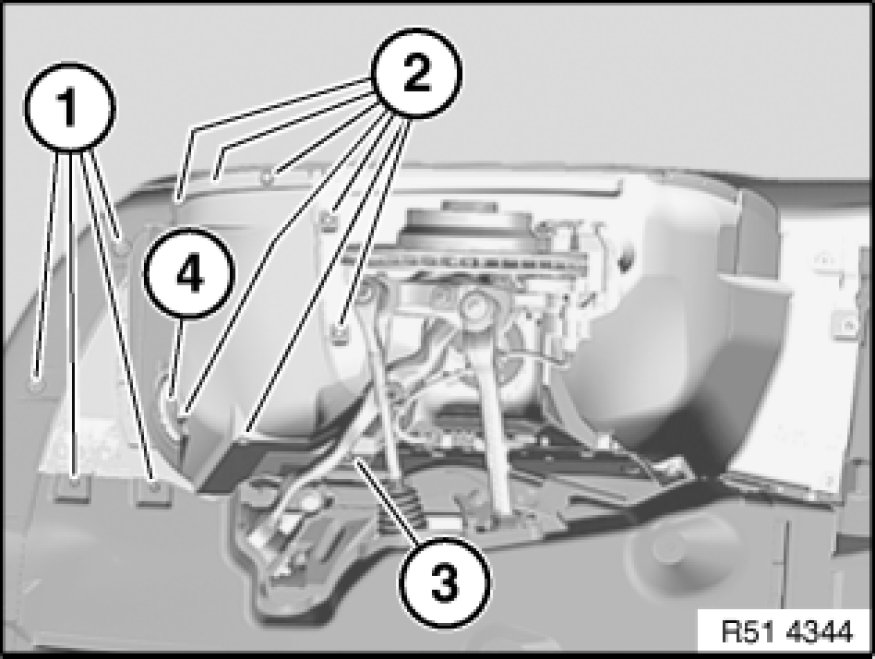

Release screws (1 and 2).
Unscrew nut (3).
Remove wheel arch cover and disconnect plug connection at trigger transmitter.

Installation:
Make sure rear wheel arch cover and air guide (4) are correctly seated.

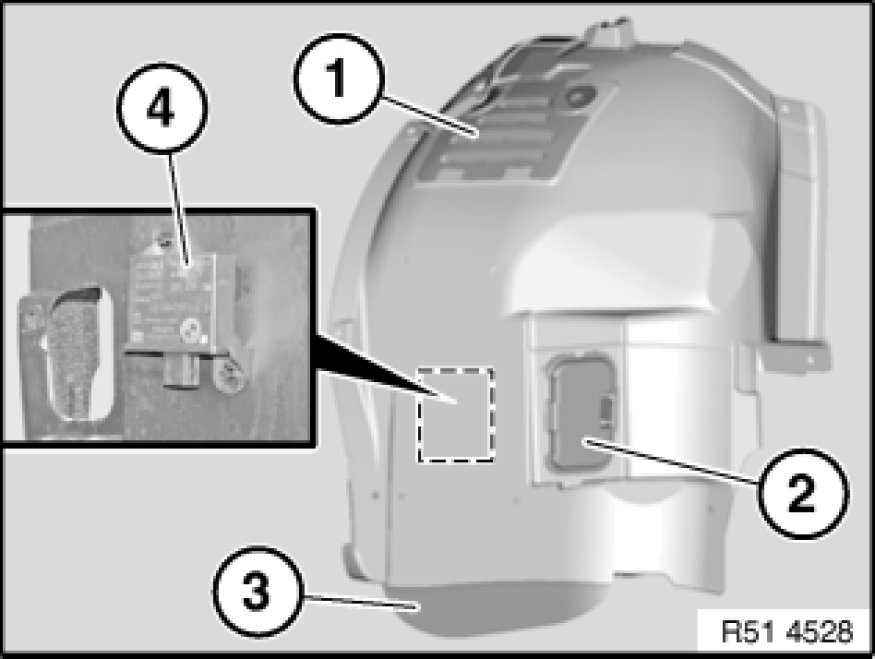

Replacement:
Modify covers (1 and 2).
Modify air guide (3).
Version with Tyre Pressure Control:
Modify trigger transmitter (4) 36 11 121 Removing and Installing/Replacing an RDC Trigger Transmitter (Front).

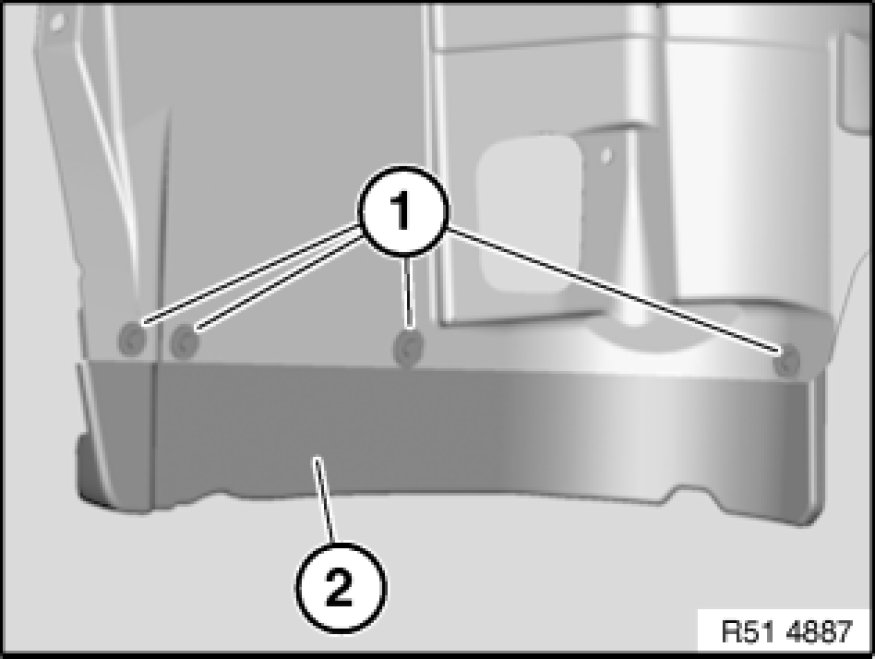

Version with M Technic aerodynamic kit:
Release screws (1).
Remove lower section of cover (2).
