License Plate Bracket: Service and Repair

51 11 ... Installing/Replacing Number/License Plate (Without Base)







NOTE: To obtain drilling template also refer to SI 00 11 09 (603).







Initial fitting:

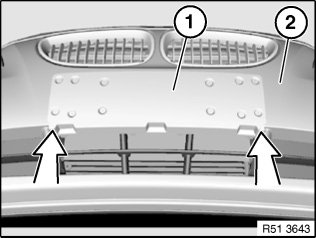

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ.

Fit protective caps.

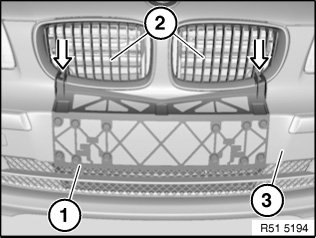

Place drilling hole template (1) on radiator grille (2) and bumper (3).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to car registration number plate specifications.

Remove template (1) and secure car registration number plate with screws provided.

Tightening torque 51 11 3AZ.

Fit protective caps.







Thread repair:

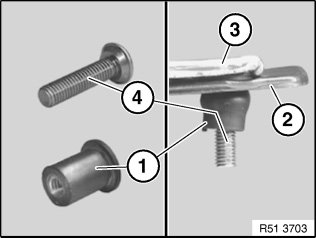

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1)*.

Secure car registration number plate (3) with car registration number plate (4)*.

Tightening torque 51 11 4AZ.

NOTE: * Sourcing reference: BMW Parts Department
