51 13 116 Removing and Installing Cowl Panel Cover

51 13 116 - Removing and installing cowl panel cover





Necessary preliminary tasks:
- Remove windscreen wiper arm Service and Repair on left/right
- Remove microfilter housing 64 31 092 Removing and Installing/Replacing Microfilter Housing (Lower Section)





Important!
Danger of water ingress via fan into vehicle interior if cowl panel cover and sealing strip are not correctly fitted.

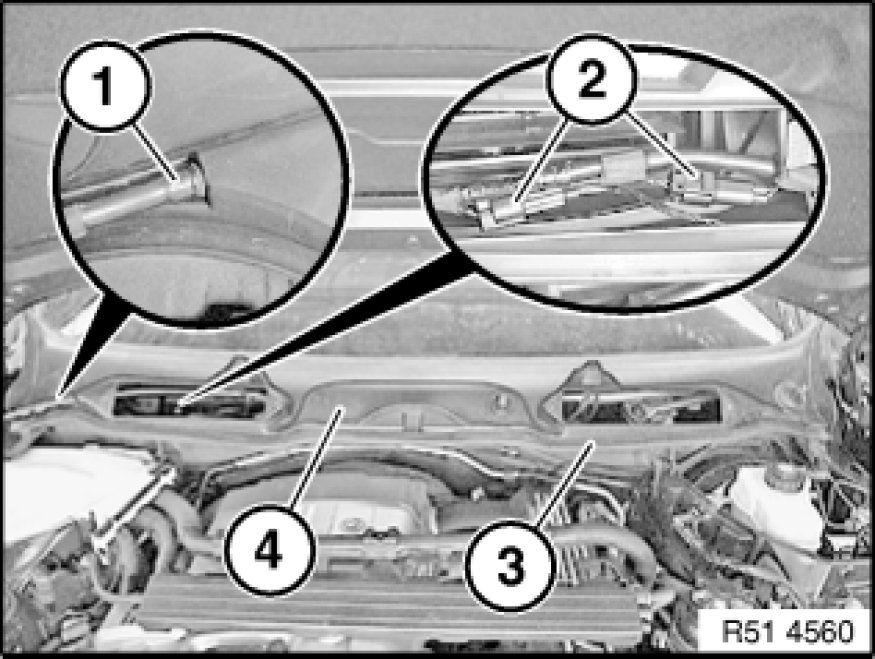

Pull off hose (1).
Disconnect plug connections (2).
Detach mucket (3).
Take off cover (4).

Installation:
Make sure cover (4) is correctly seated.





Installation:

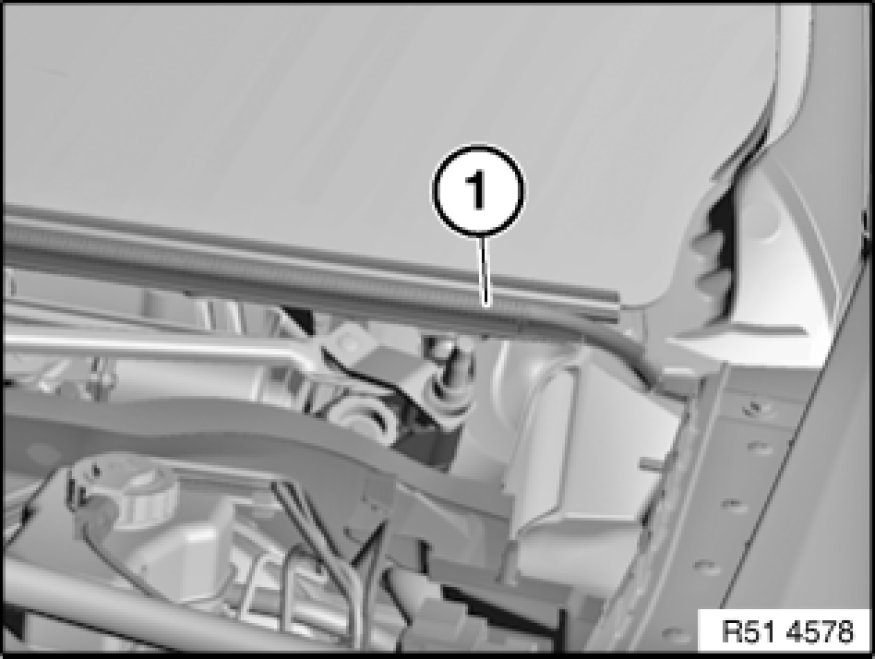

Sealing strip (1) must be fitted (water ingress)
If necessary, retrofit sealing strip (1).





Installation:

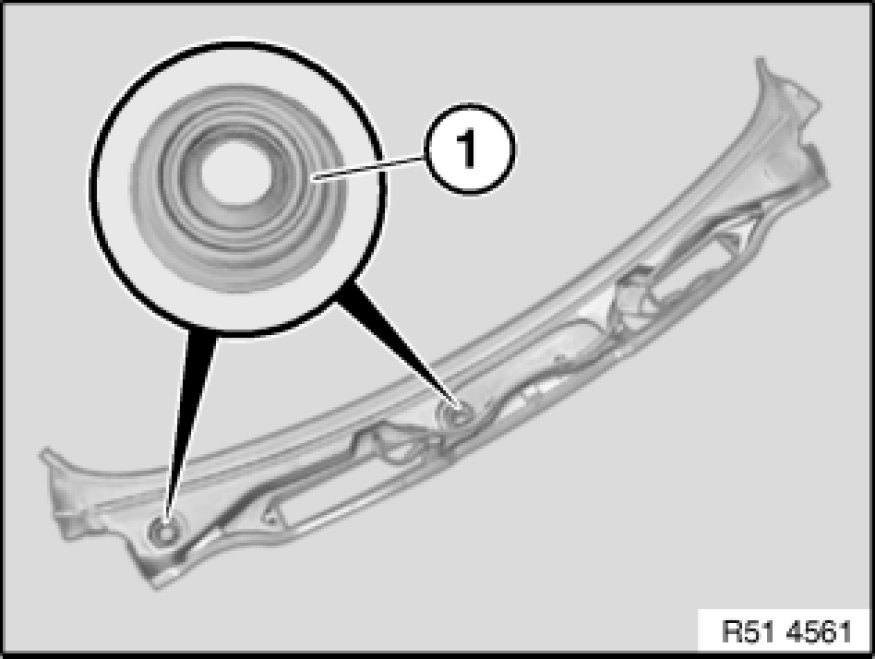

Make sure grommets (1) are correctly seated on wiper pivots.
Grommets (1) for wiper pivots must not be damaged.
If necessary, replace grommets (1).





E90/E91 only:

Installation:

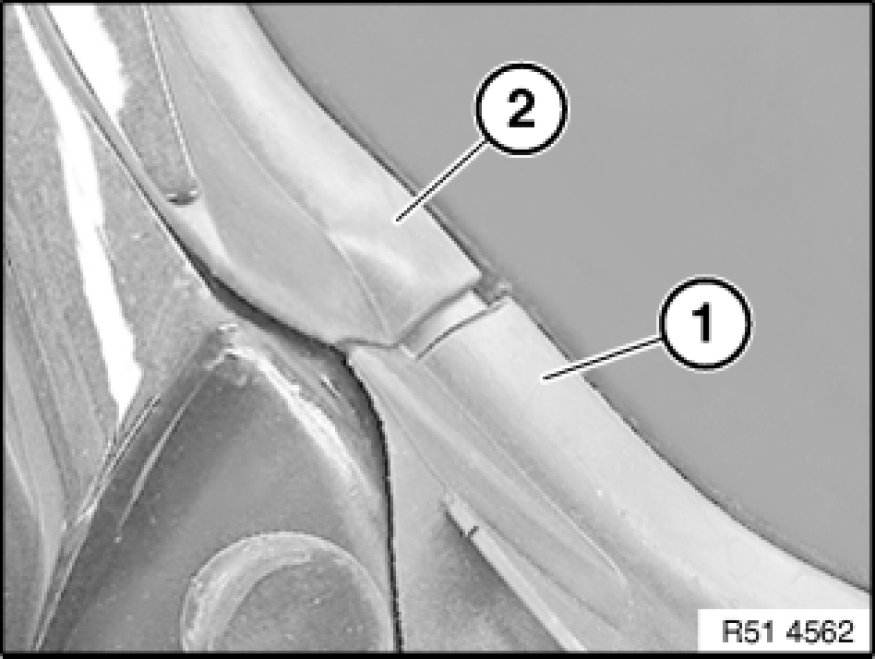

Cowl panel cover (1) must be correctly guided on right and left under windscreen cover (2).





E92/E93 only:

Installation:

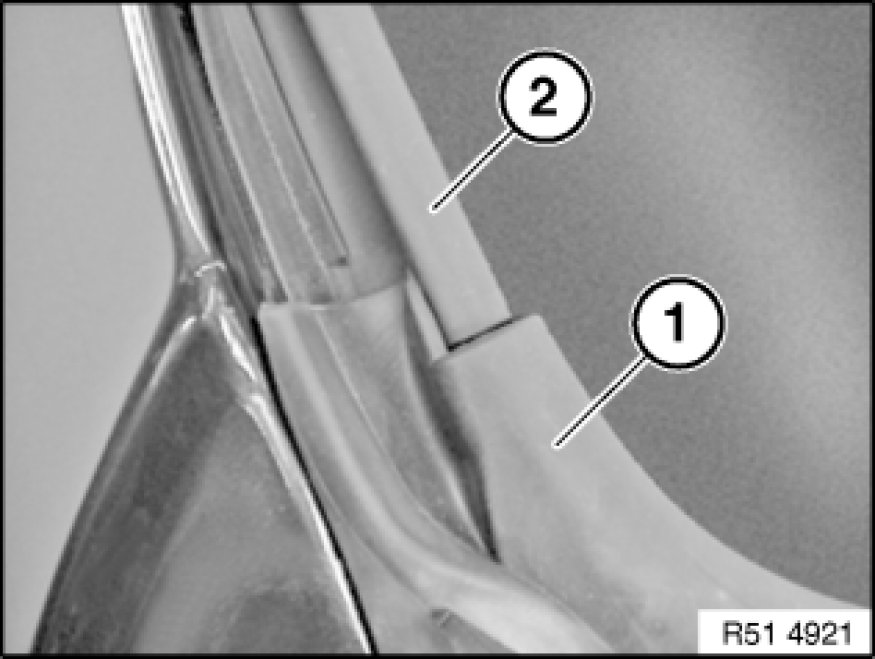

Cowl panel cover (1) must be correctly guided on right and left under windscreen cover (2).
