51 14 110 Removing and Installing/Replacing Rear Model Designation

51 14 110 - Removing and installing/replacing rear model designation





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

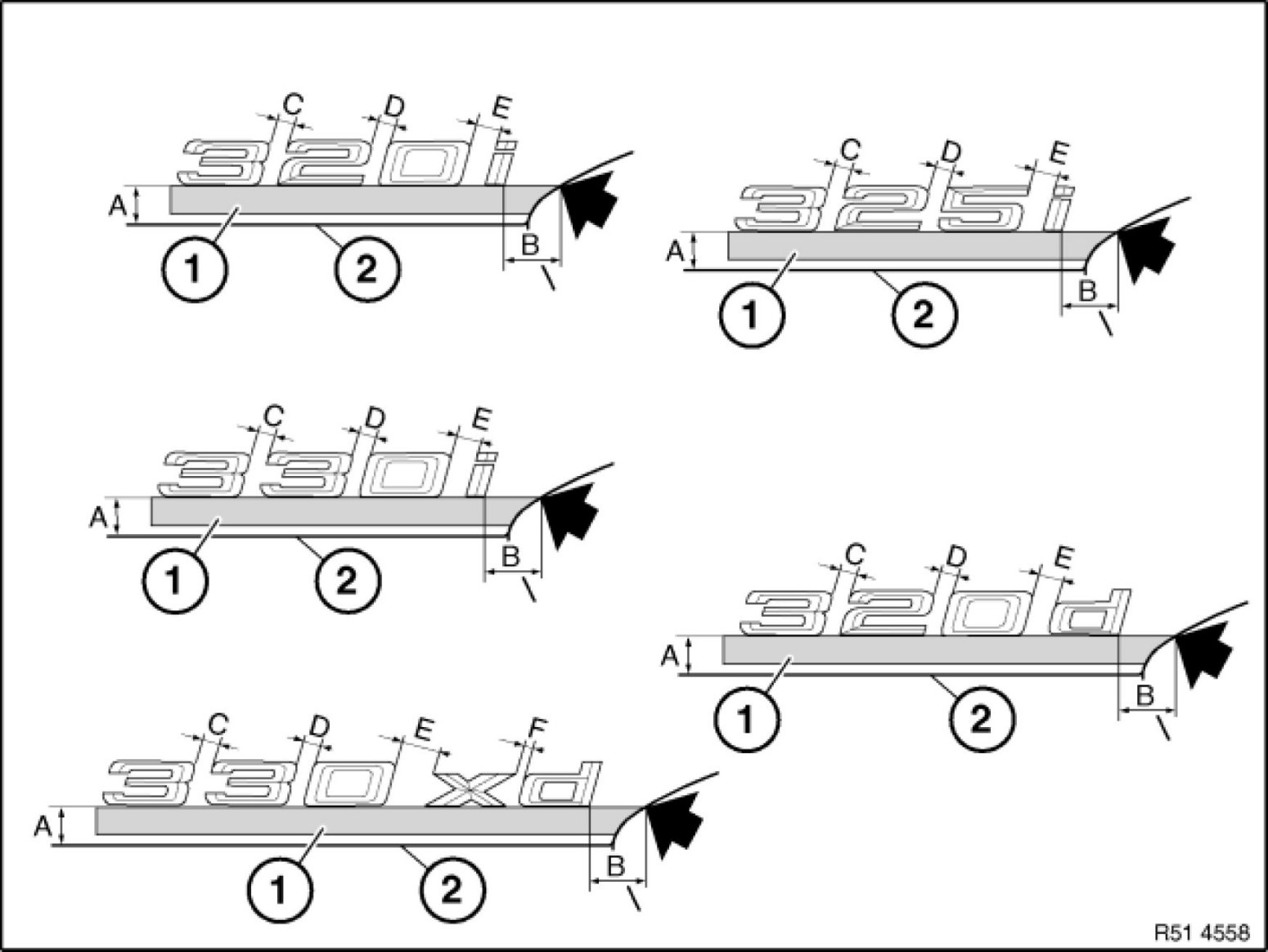

Fitting dimensions (E90/E91/E92/E93):





Attach adhesive tape (1) between edge of rear lid (2) and top edge "A". Mark out measurement "B" from top edge "A" to outer edge of rear lid on adhesive tape (1).

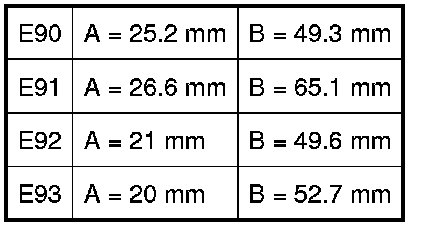

Dimensions:





Note:
Measurements C, D and E are for information purposes only, as determined by carrier film.

316 i, 318 i, 318 d: C = 4.8 mm, D = 7.2 mm, E = 11.6 mm

320i...335i: C = 7.2 mm, D = 7.2 mm, E = 11.6 mm

320 d...330 d: C = 7.2 mm, D = 7.2 mm, E = 11.6 mm

320 si, 325 xi, 330 xi, 330 xd: C = 7.2 mm, D = 7.2 mm, E = 10.6 mm, F = 4.8 mm

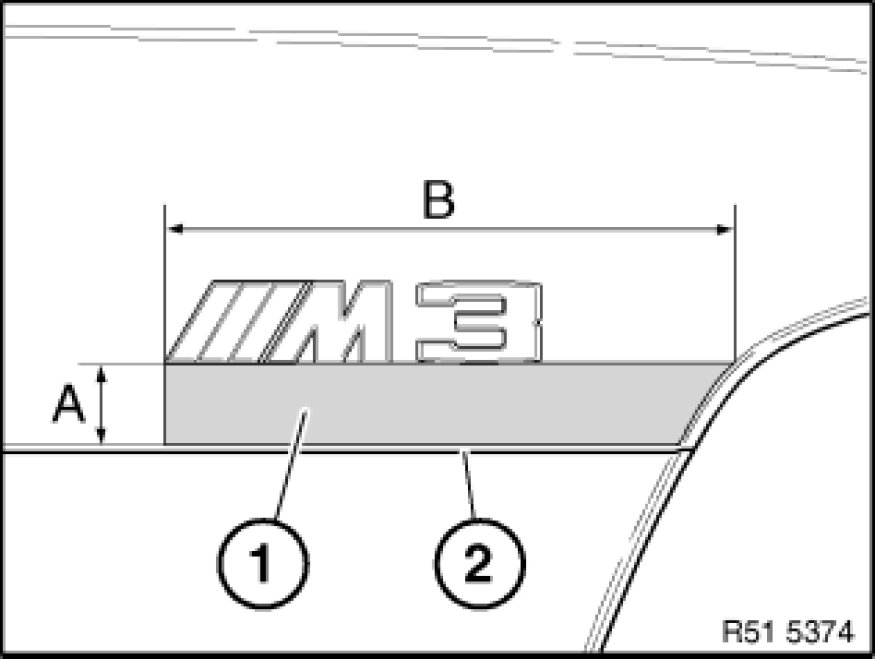

M3 only:
Attach adhesive tape (1) between edge of rear lid (2) and measurement "A".
Mark out measurement "B" at top edge of adhesive tape (1) to outer edge of rear lid.
E90:
A = - 21 mm
B = - 147 mm
E92/E93:
A = - 21 mm
B = - 139 mm

Note:
Measurement "C" is for information purposes only, as it is determined by carrier film.
C = - 5.9 mm
