51 14 011 Replacing Rear BMW Badge

51 14 011 Replacing Rear BMW Badge

Special tools required:







IMPORTANT:
- The Instructions on component cementing with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.
- The BMW badge must be replaced after it is removed.







Removing badge:

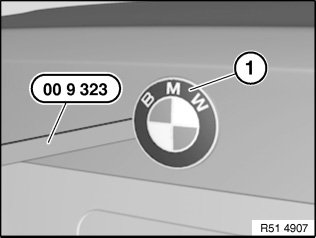

Heat BMW badge (1) with hot air blower and carefully lever out with special tool 00 9 323.







Fitting badge:

Installation:

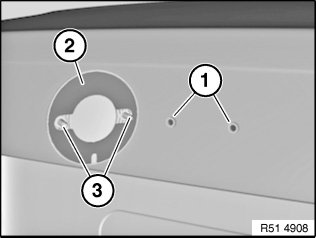

Grommets (1) must not be damaged.

Pull liner* off adhesive tape (2), position badge over guide pins (3) and press down firmly.

* Liner is the protective film on a new badge.
