Removing and Installing/Replacing Right Engine Hood/Bonnet Lock

51 23 100 - Removing and installing/replacing right engine hood/bonnet lock





Necessary preliminary tasks:
- Remove front intake duct

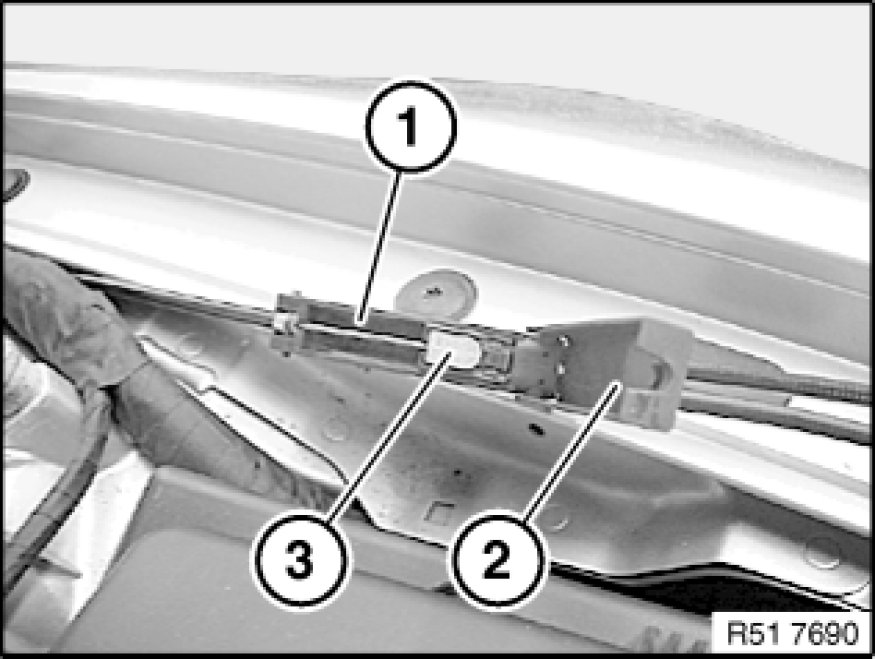

Unclip coupling (1) from side panel.
Lever out cover (2) at coupling (1).
Lever Bowden cable (3) out of coupling (1).

Note:
The operation "Disconnect cable for hood/bonnet locks" ends here.





Release screws (1) on bumper trim (2).





Release Bowden cable (1) from holder (2).

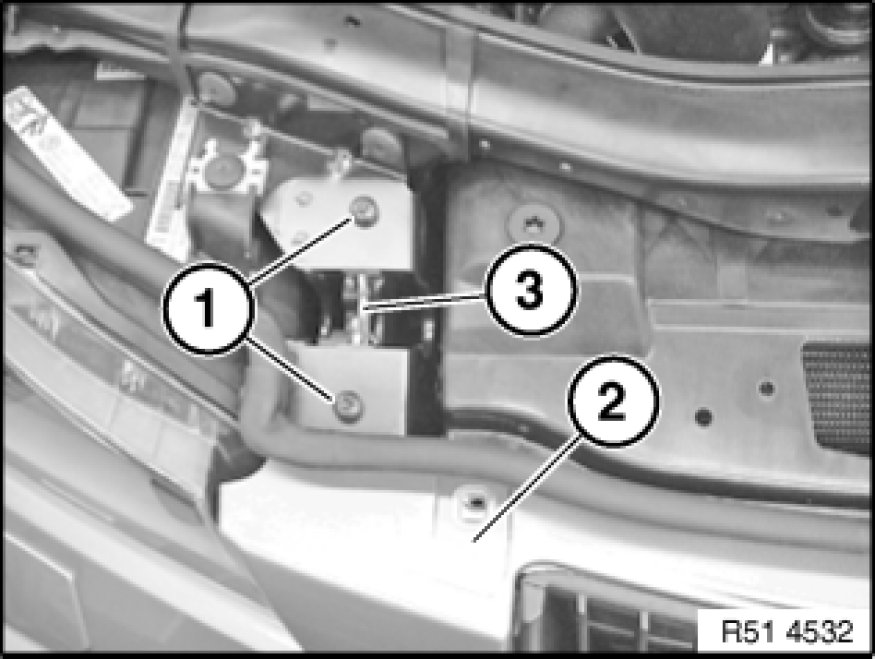

Release screws (1).
Tightening torque 51 23 2AZ [1][2][3]51 23 Hood/Bonnet Locks.

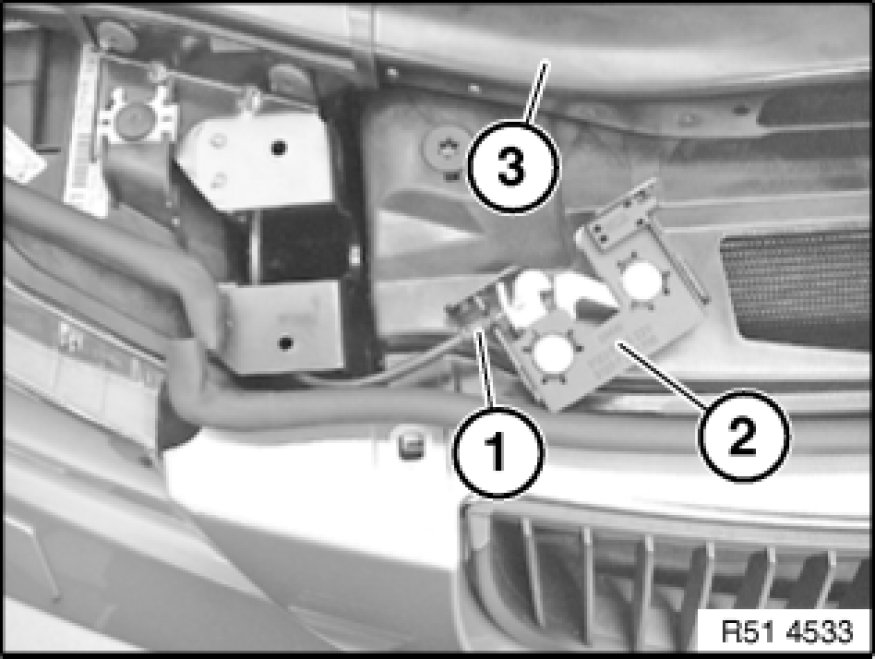

Carefully pull bumper trim (2) forwards and feed out hood/bonnet lock (3) with cable.





Disengage cable (1) from hood/bonnet lock (2).
When replacing cable for hood/bonnet locks:
Feed cable (1) out of front wall (3).
