Removing and Installing/Replacing Left Hood/Bonnet Lock

51 23 110 - Removing and installing/replacing left hood/bonnet lock





Unclip coupling (1) from side panel.
Lever out cover (2) at coupling (1).
Lever cable (3) out of coupling (1).

Note:
The operation "Disconnect cable for hood/bonnet locks" ends here.

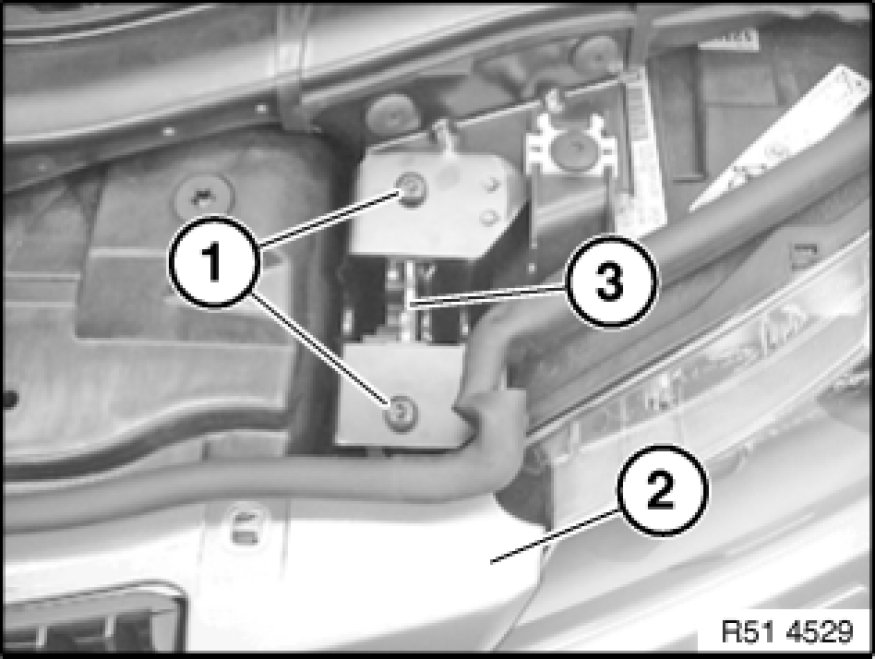

Release screws (1).





Release screws (1).
Carefully pull bumper (2) forwards and feed out hood/bonnet lock (3) with cable.
Tightening torque 51 23 2AZ [1][2][3]51 23 Hood/Bonnet Locks.

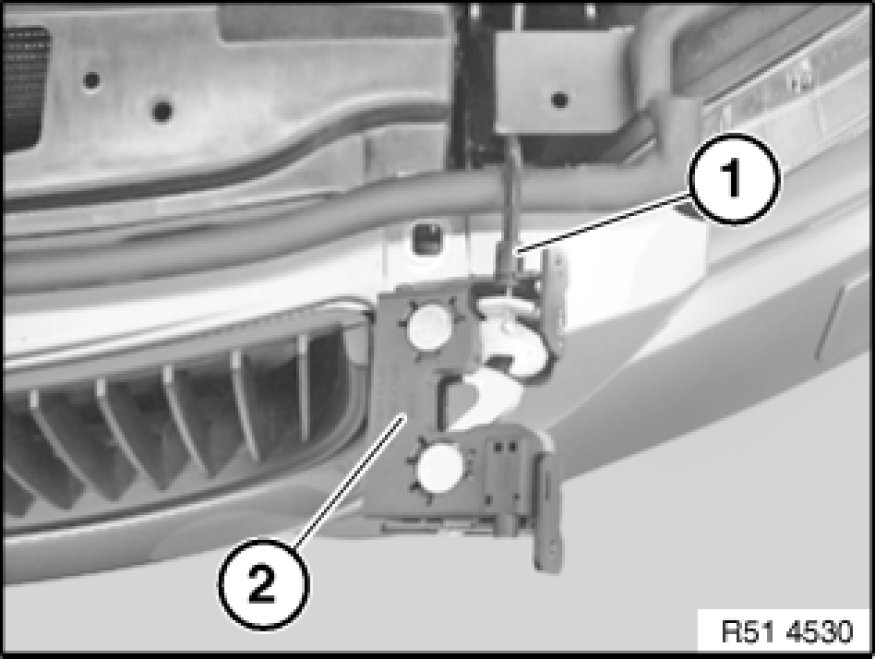

Disengage cable (1) from hood/bonnet lock (2).
When replacing cable for hood/bonnet locks:
Feed cable (1) out of front wall.
