Removing and Installing/Replacing Arrester Hook on Engine Hood

51 23 160 Removing And Installing/Replacing Arrester Hook On Engine Hood







Raise bonnet/hood lid.

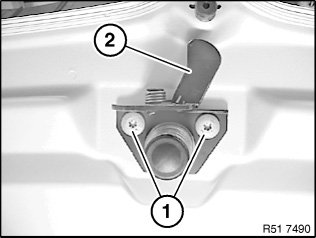

Release screws (1) and remove arrester hook (2).

Tightening torque 51 23 1AZ.
