Rear Bumper Reinforcement: Service and Repair

51 12 050 - Removing and installing/replacing carrier for rear bumper trim





Important!

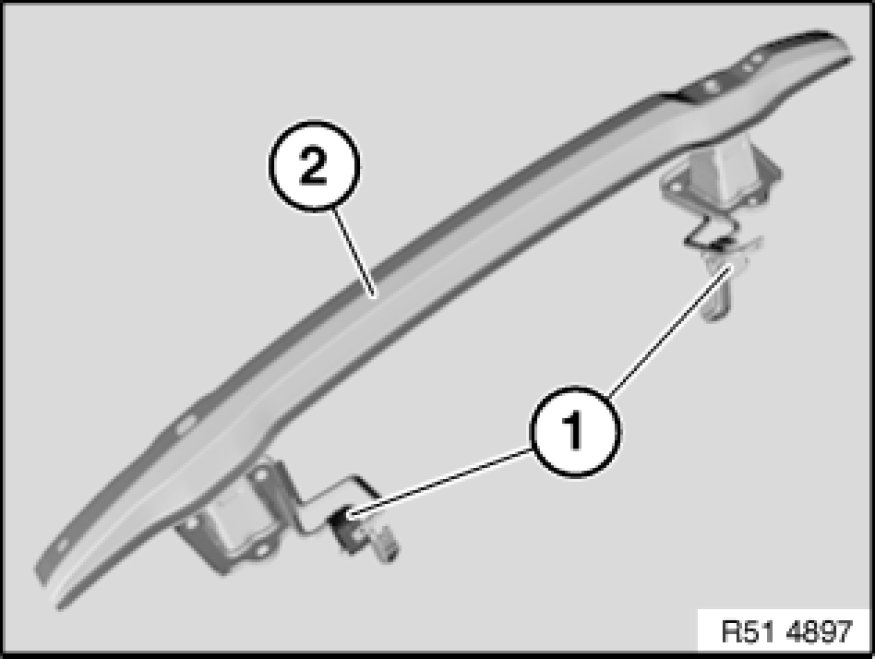

During replacement, all the cavities of the carrier (1) and the crashbox (2) must be sealed with cavity sealant.





Necessary preliminary tasks:
- Remove bumper trim

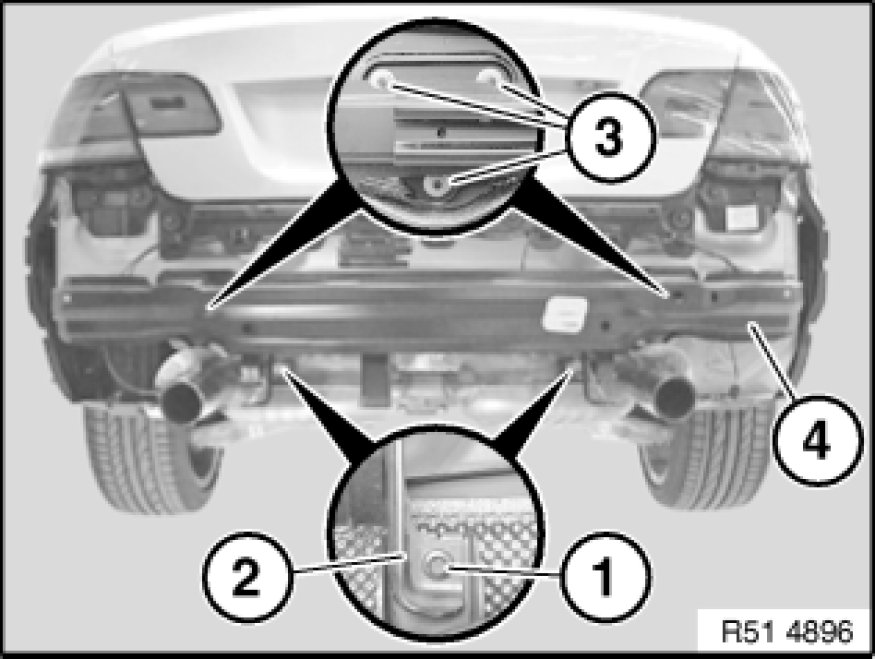

If necessary, release screws (1) and feed out suspension (2) from rear muffler.
Unscrew nuts (3).
Remove carrier (4).
Tightening torque 51 12 1AZ Specifications.





Replacement:
If necessary, release rubber mount (1) on carrier (2).
