51 12 821 Replacing Both Holders for Rear Bumper

51 12 821 - Replacing both holders for rear bumper





Necessary preliminary tasks:
- Remove rear bumper trim

Note:
The operation is described on the left side; proceed in the same way for the right side.





E93 only:

Release antenna holders (1 and 2) from holder (3).

Installation:
If necessary, replace faulty antenna holders (1 and 2).





If necessary, disconnect plug connection at trigger transmitter.

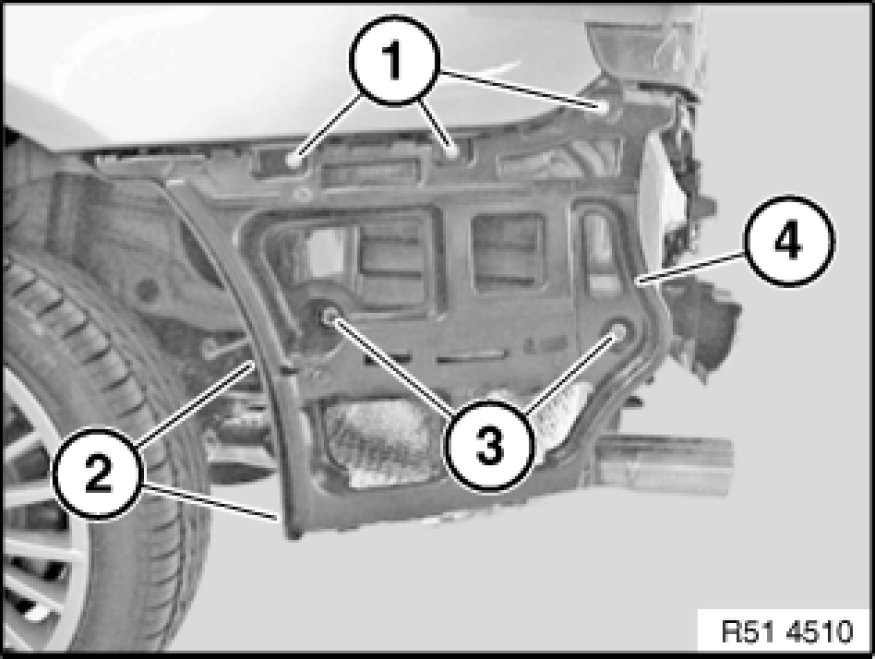

Release screws (1 and 2).

Release nut (3) and remove holder (4).





Installation:

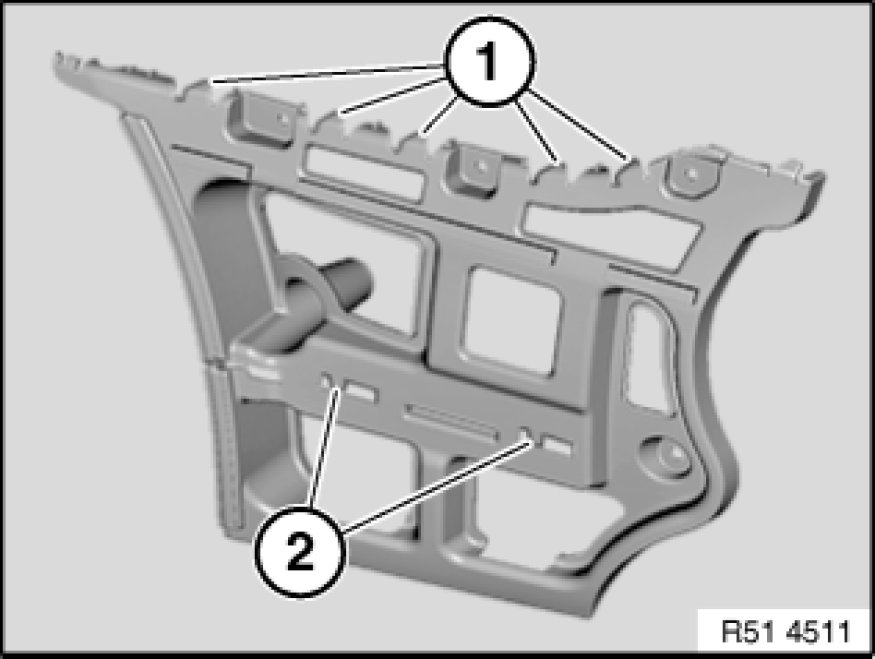

Catches (1) must not be damaged or missing.

E90/E91 only:

Catches (2) must not be damaged or missing.

Replacement:

If necessary, remove RDC trigger transmitter 36 11 523 Removing and Installing/Replacing an RDC Trigger Transmitter (Rear).
