51 11 157 Replacing Front Bumper Trim

51 11 157 - Replacing front bumper trim





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim
- Remove front grille centre section Service and Repair
- Remove license plate holder Service and Repair
- Remove middle grille
- Remove side grille
- Remove cover cap for tow lug
Version with fog lamps:
- Remove fog lamps 63 17 070 Removing and Installing/Replacing Left Front Fog Lamp
Version with Park Distance Control (PDC):
- Remove ultrasonic transducer





Remove seal (1) towards top.

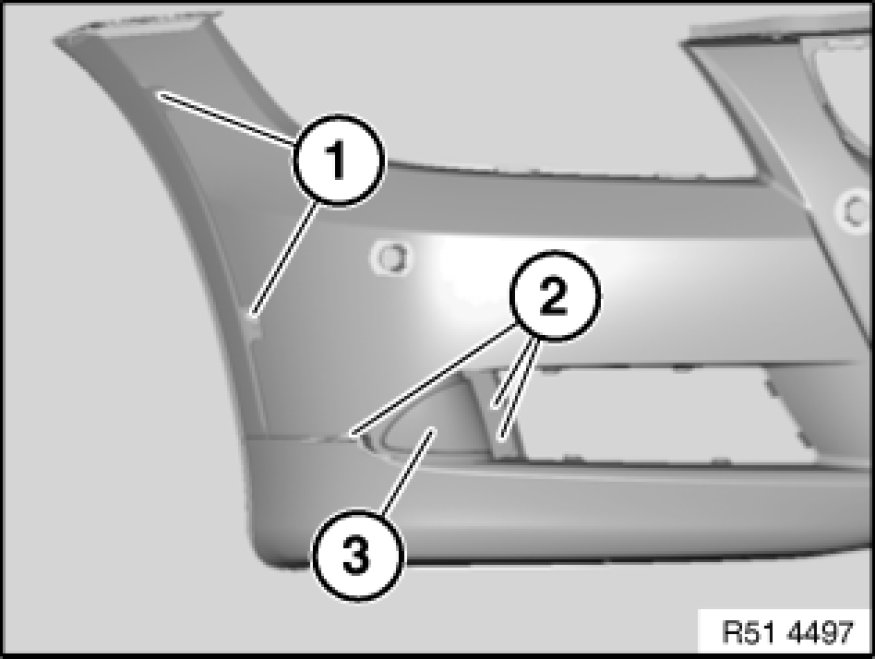

Detach sheet metal nuts (1) on right/left.
Version without fog lamps:
Release screws (2) and remove cover (3).
Remove sheet metal nuts on right/left below cover (3).





E90/E91 only:
Press down catches (1) an insert (2) and remove insert (2) in direction of arrow.





E92/E93 only:

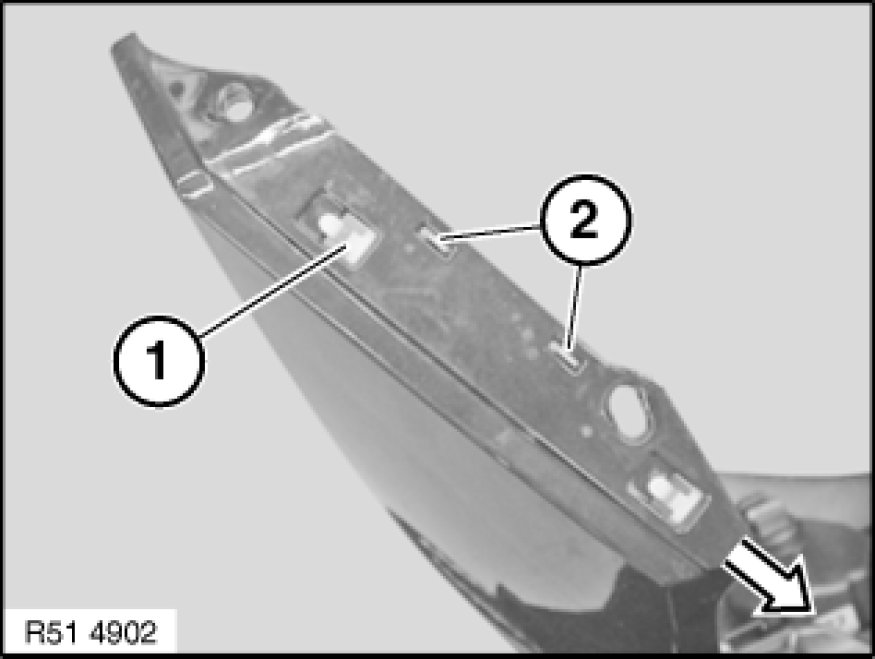

Press down catches (2) on insert (1) and remove insert (1) in direction of arrow.





Version with M Technic aerodynamic kit:

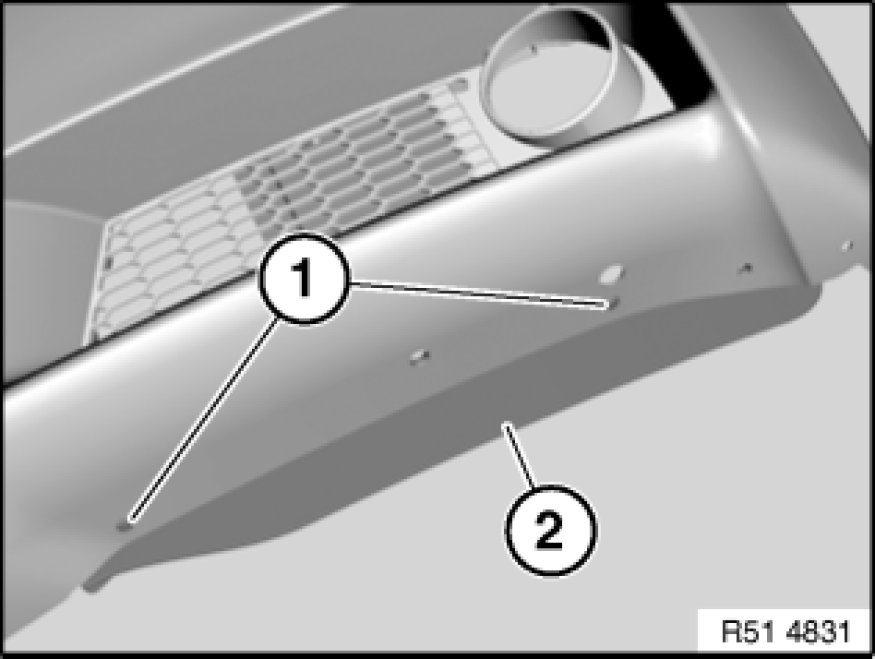

Release expander rivets (1) and remove lip (2).
