Voice Activation Microphone: Service and Repair

84 31 541 - Removing and installing/replacing hands-free microphone on steering column





Necessary preliminary tasks:
- Remove upper section of steering column trim 32 31 003 Removing and Installing/Replacing Upper Section of Steering Column Trim

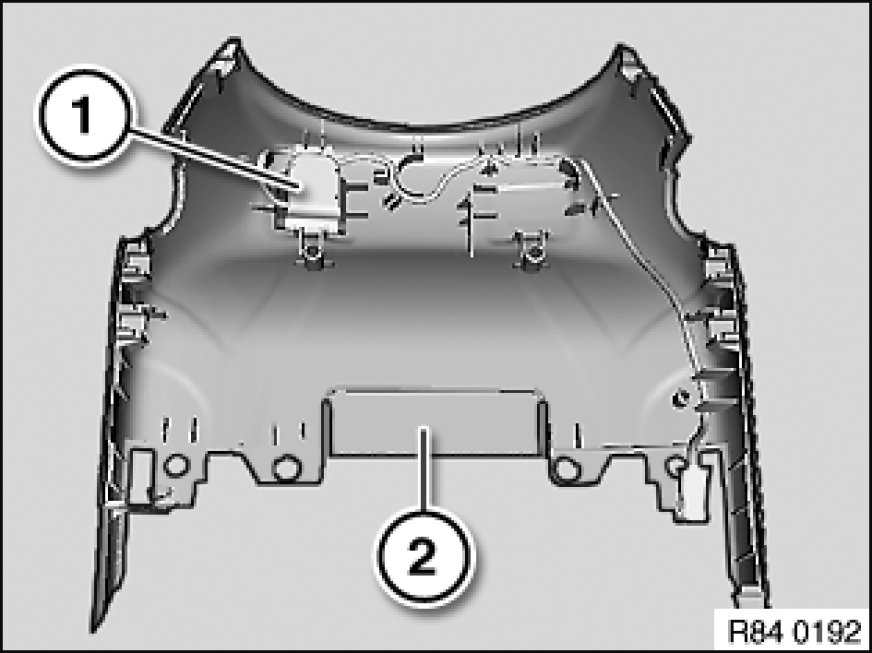

Unclip hands-free microphone (1) from steering column trim (2) and feed associated wiring harness out of steering column trim (2).

Installation:
Make sure wiring harness is correctly laid.
Catches for hands-free microphone (1) must not be damaged or missing.
Make sure hands-free microphone (1) is correctly engaged on steering column trim (2).
