CD Changer: Service and Repair

65 11 072 - Removing and installing/replacing CD changer





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
Follow instructions for handling optical fibres 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove luggage compartment trim on left.

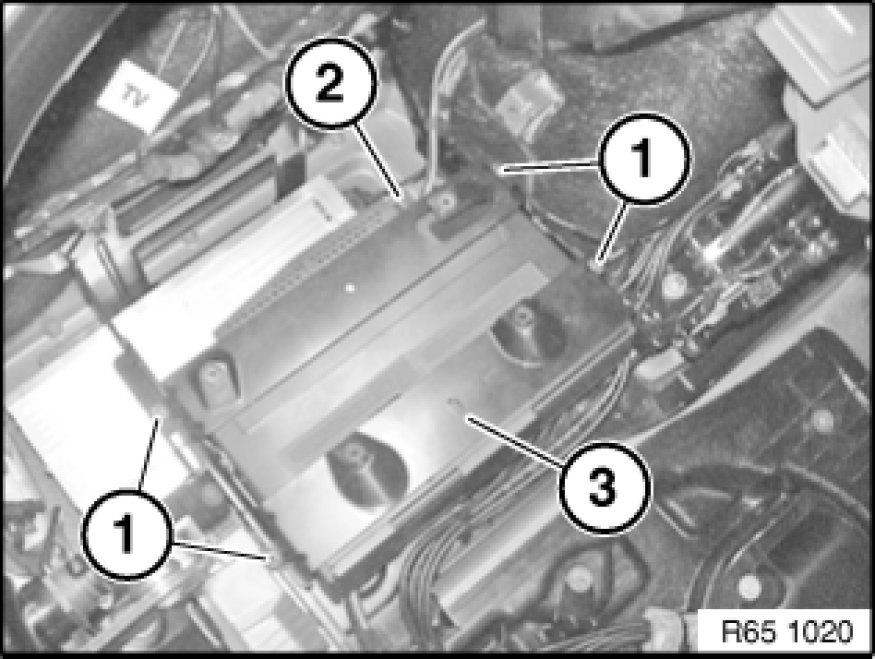

Release screws (1).
Disconnect plug connections (2).
Remove CD changer (3) complete with holder.





Replacement:

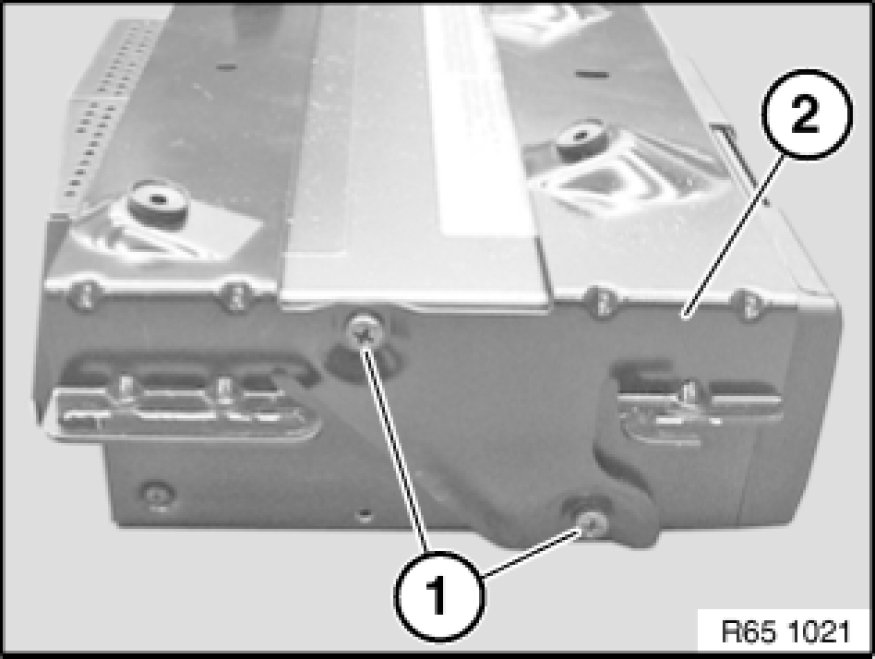

Release screws (1) on both sides and remove bracket (2) from CD changer.
