65 12 070 Removing and Installing/Replacing Amplifier (HiFi System, With CD Changer)

65 12 070 - Removing and installing/replacing amplifier (HiFi system, with CD changer)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove luggage compartment trim on left .
- Remove CD changer Service and Repair

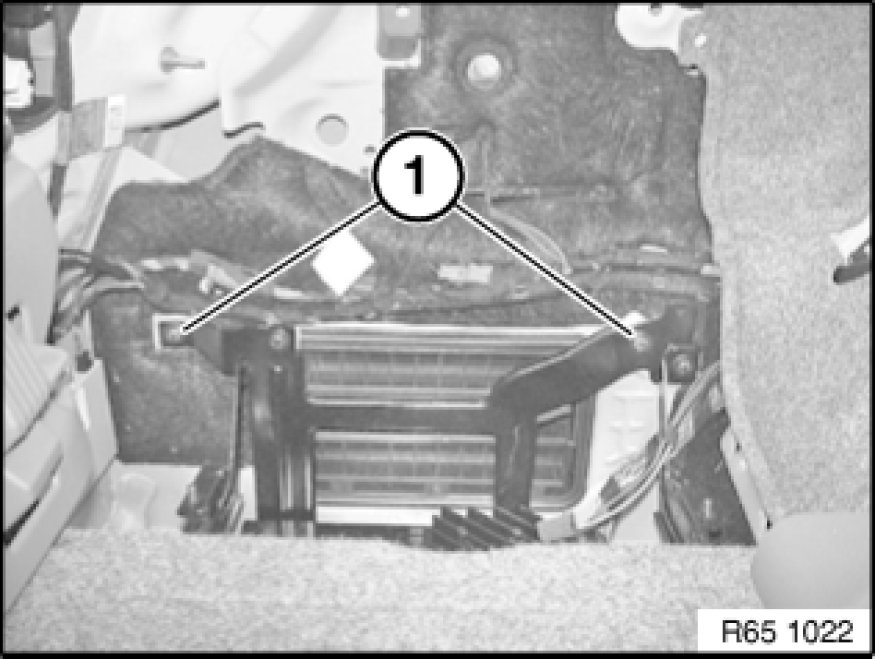

Release screws (1).

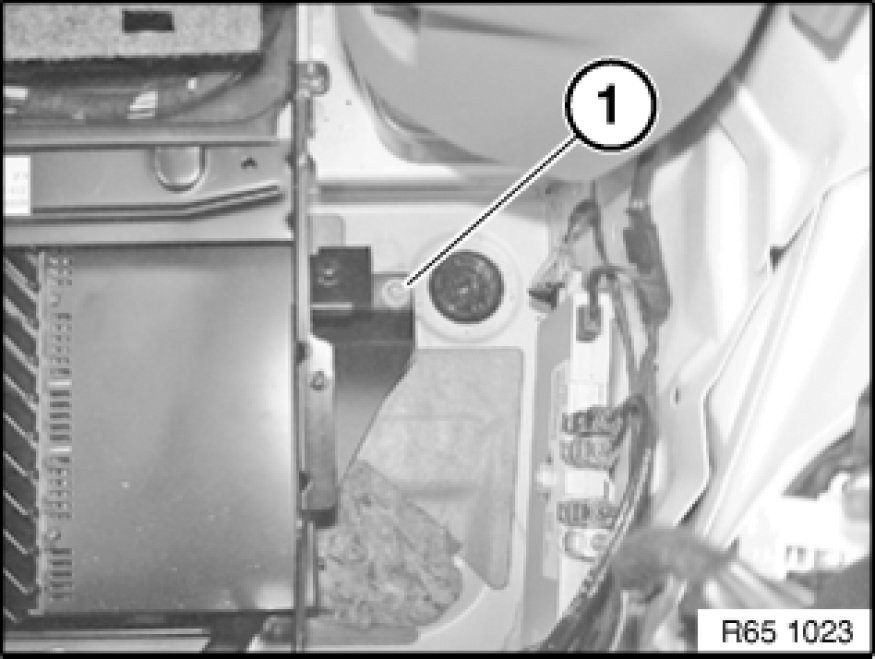

Release screw (1).

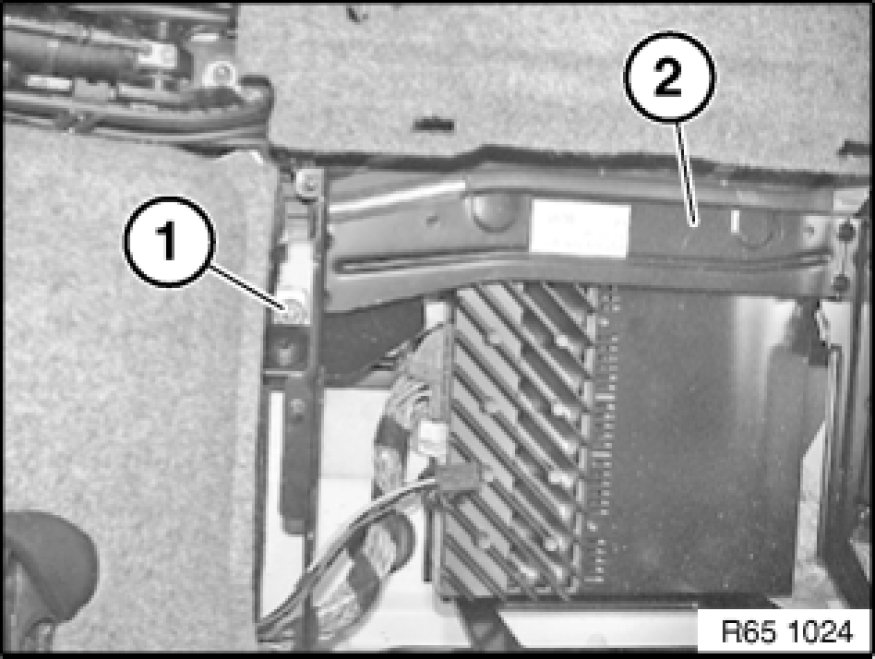

Release screw (1) and remove complete amplifier (2) with bracket.





Replacement:

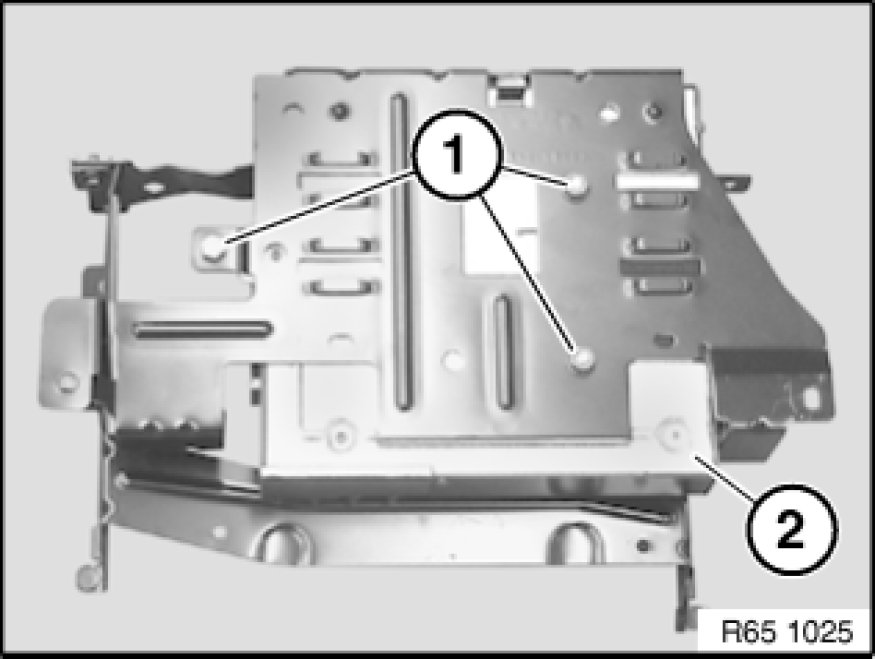

Release screws (1) and remove amplifier (2) from bracket.
