65 12 070 Removing and Installing/Replacing Amplifier (HiFi System)

65 12 070 - Removing and installing/replacing amplifier (HiFi system)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove luggage compartment trim on left .

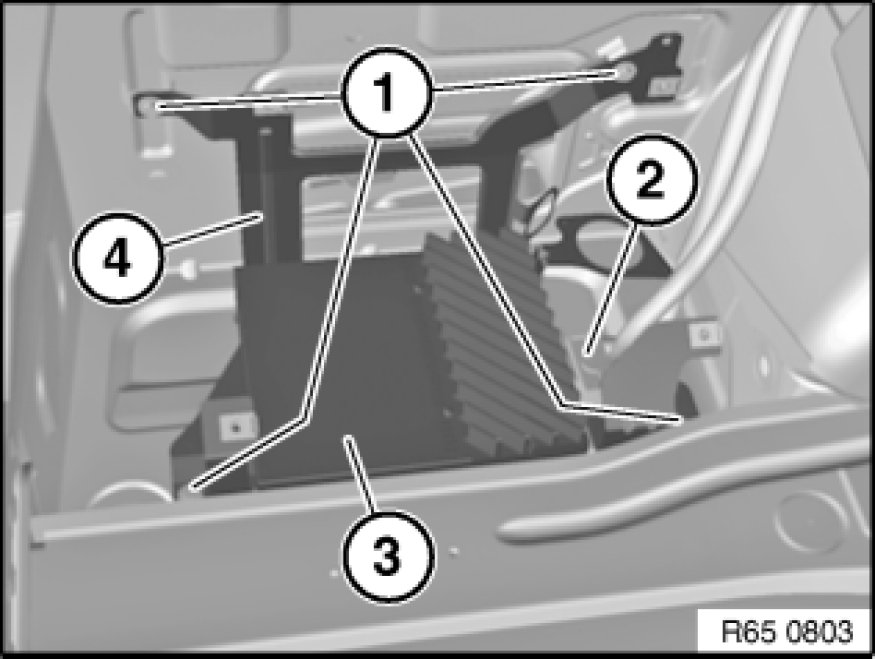

Disconnect plug connection (2).
Release screws (1).
Remove amplifier (3) complete with holder (4).

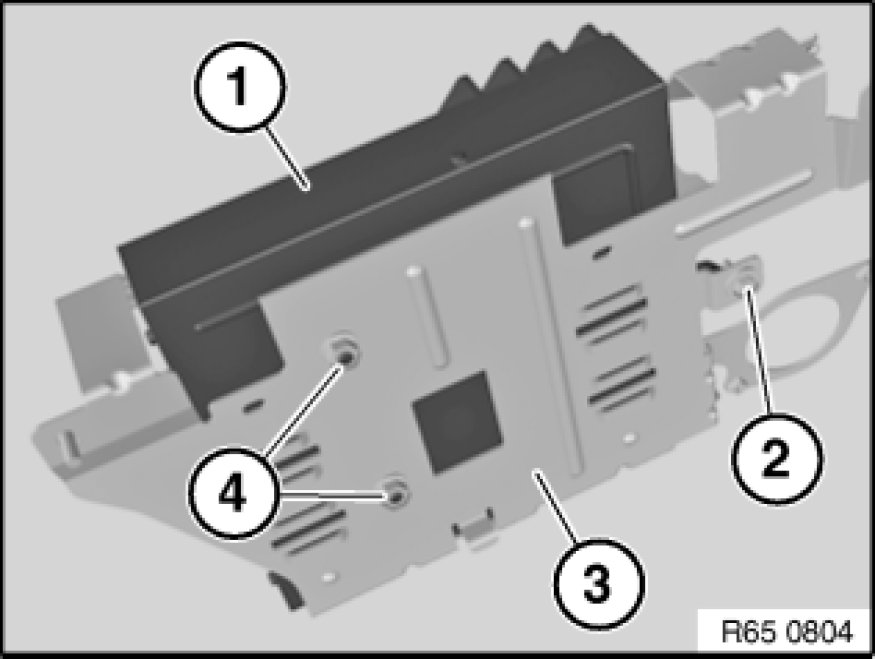

Replacement:
Release bolt (2).
Unscrew nuts (4).
Remove amplifier (1) from holder (3).
