Home >> BMW >> 2011 >> 335is Convertible (E93) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Diagrams >> Electrical Diagrams >> Navigation System, Japan

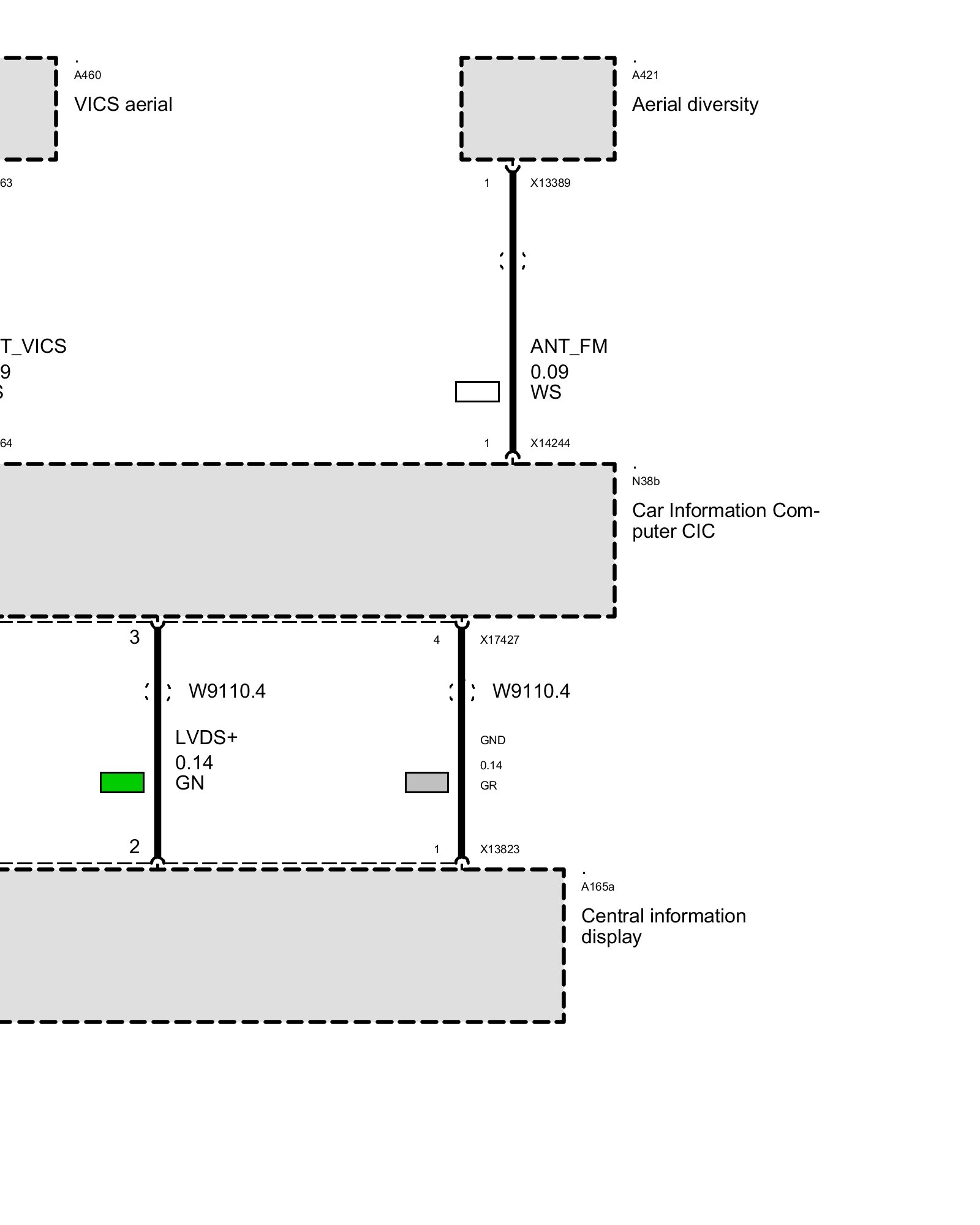

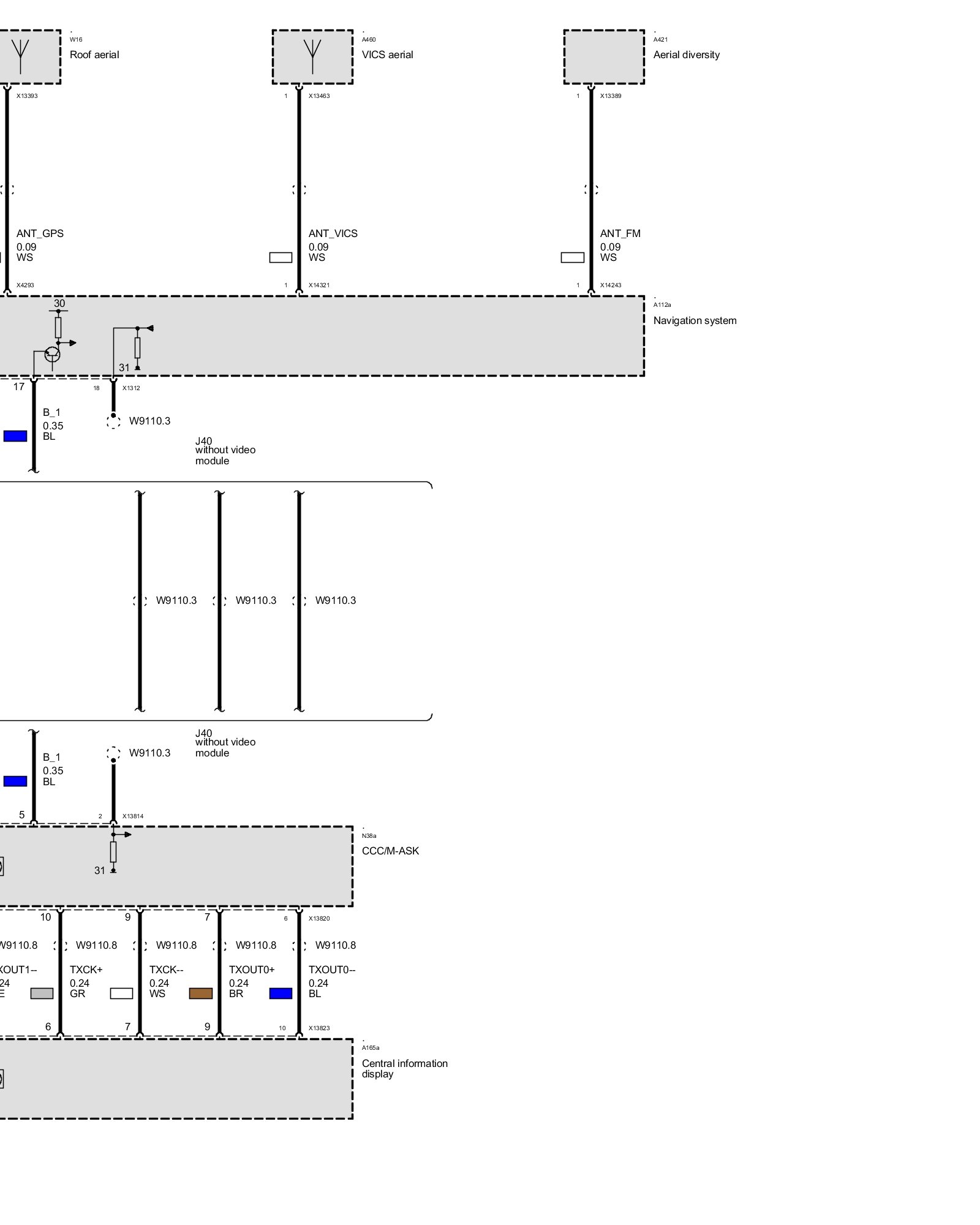

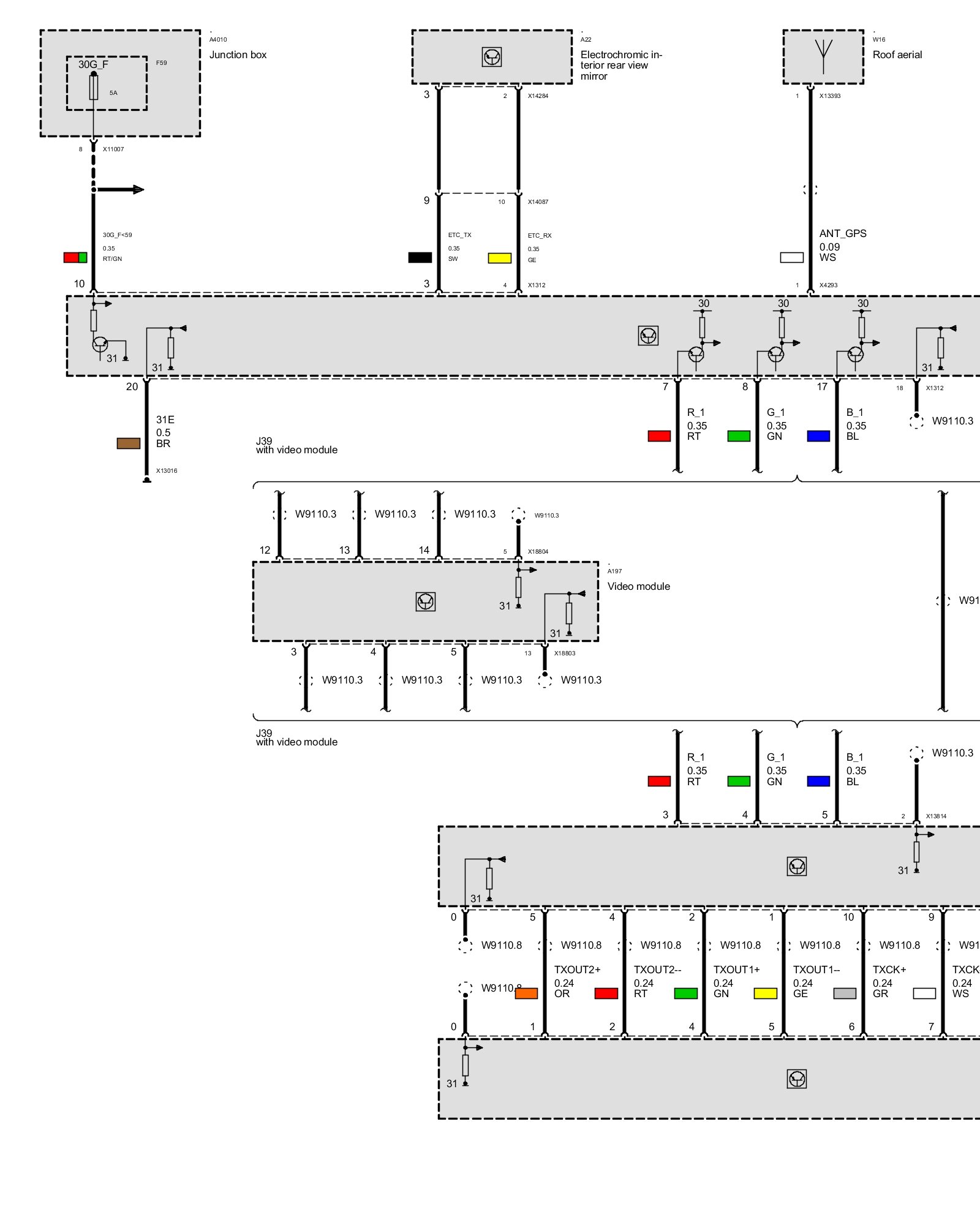

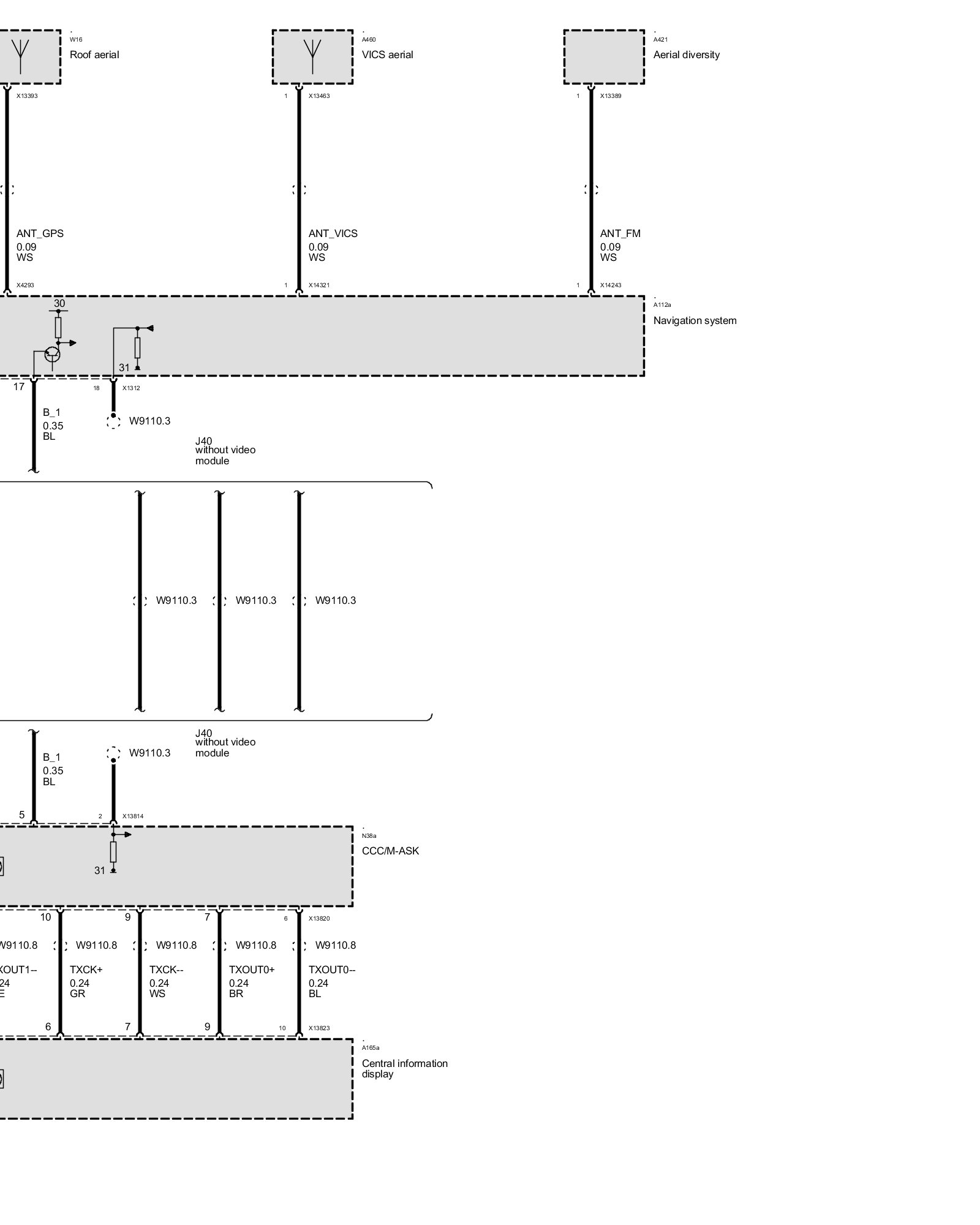

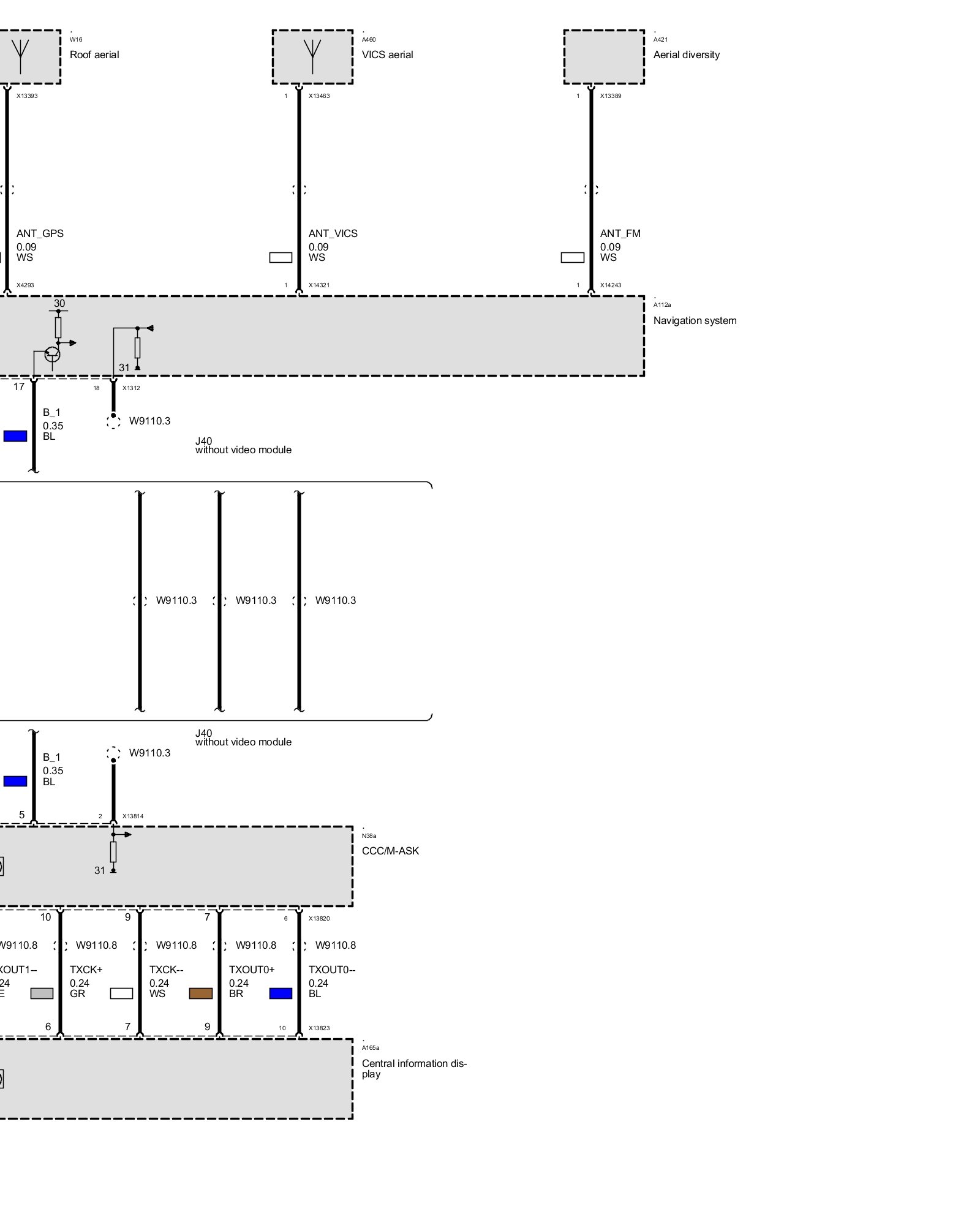

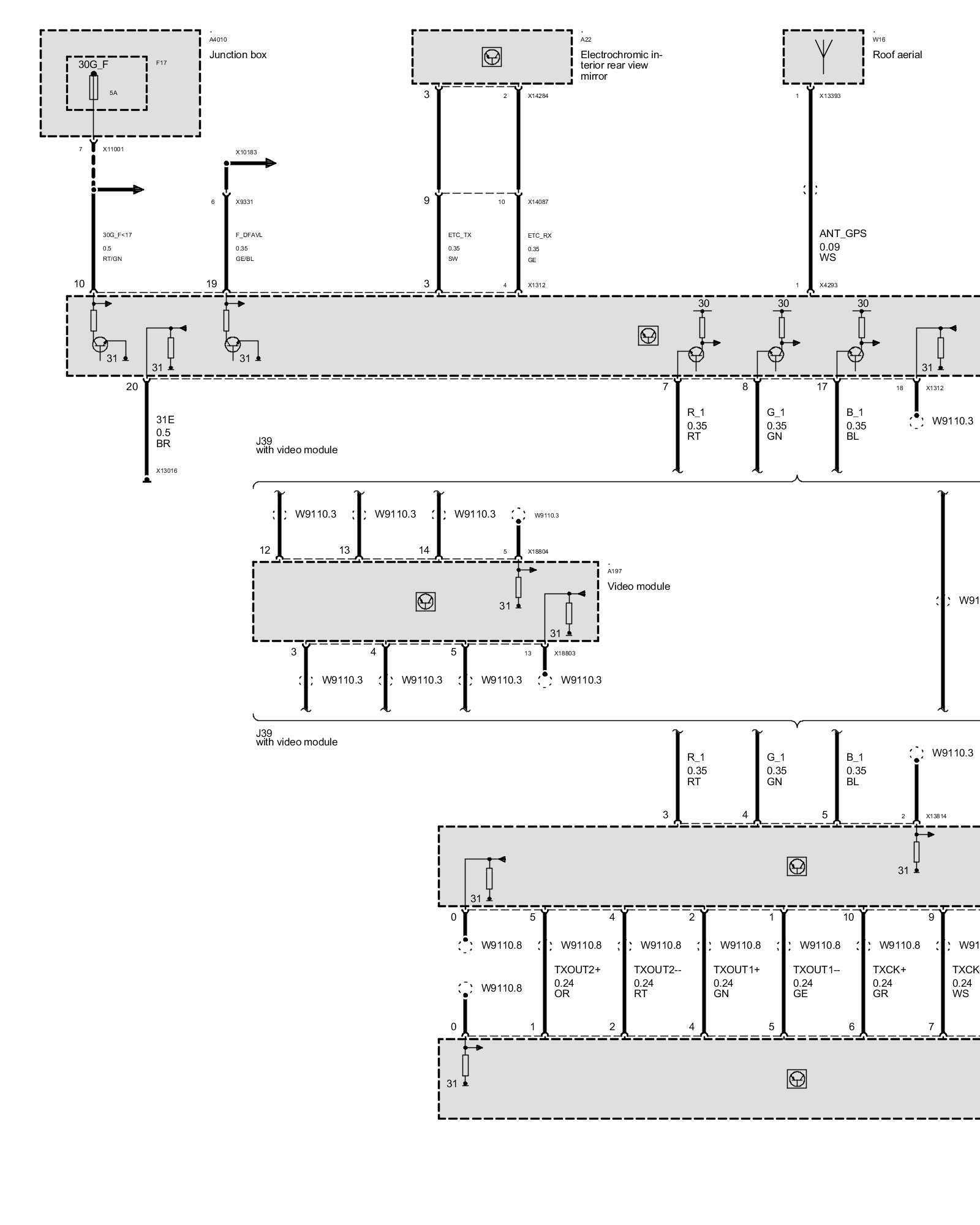

Navigation System, Japan



Navigation Japan


Up to 03/06








As of 03/06 Up to 03/07








As of 03/07 Up to 09/07








As of 09/07 Up to 09/08








As of 09/08
