Global Positioning System Antenna: Service and Repair

65 20 780 - Removing and installing/replacing aerial of Global Positioning System (GPS)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove roof switch cluster Removing and Installing/Replacing Roof Switch Centre

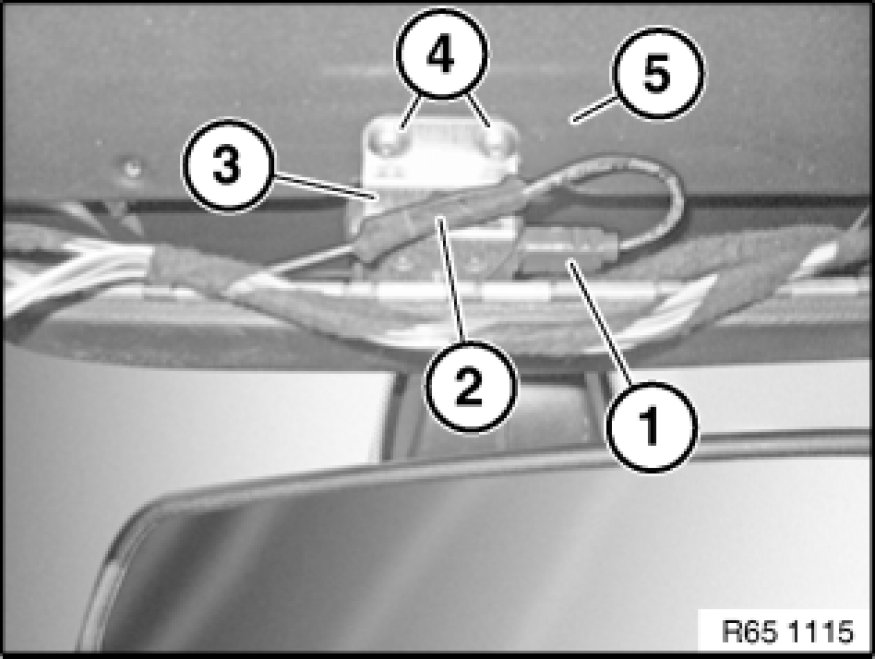

Disconnect plug connection (1).
Unclip cable holder (2) from aerial holder for Global Positioning System (3).
Release screws (4).
Remove aerial of Global Positioning System (3) from cowl panel (5).
