Entertainment System Control Module: Service and Repair

65 50 011 - Removing and installing (replacing) video module for on-board monitor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove luggage compartment floor panel 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel





Note:
Follow instructions for handling optical fibres 61 00 ... Notes on Handling Optical Fibers.

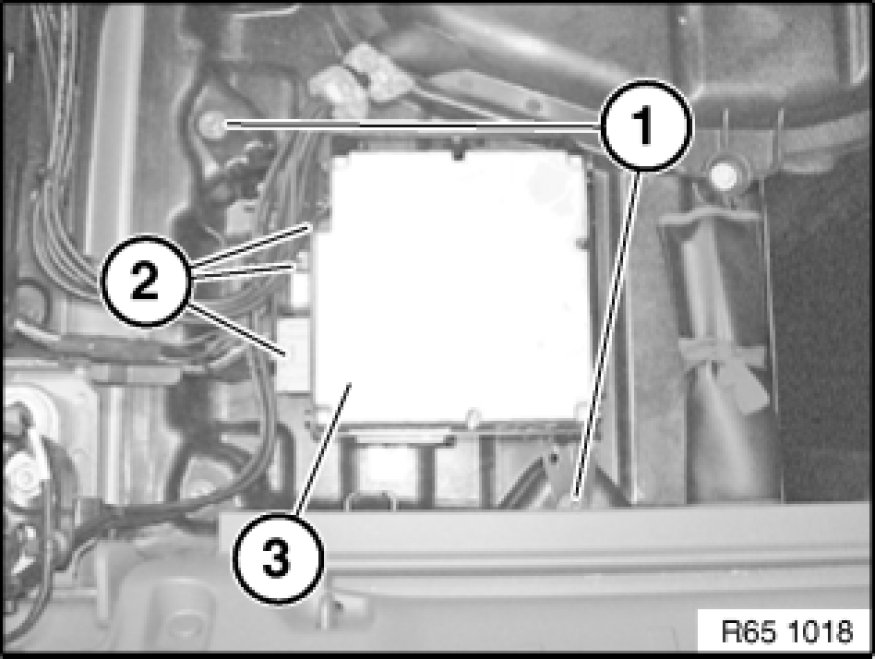

Release screws (1).
Disconnect plug connections (2) and remove bracket (3) with video module.

Installation Note:
Ensure correct cable routing.





Replacement:

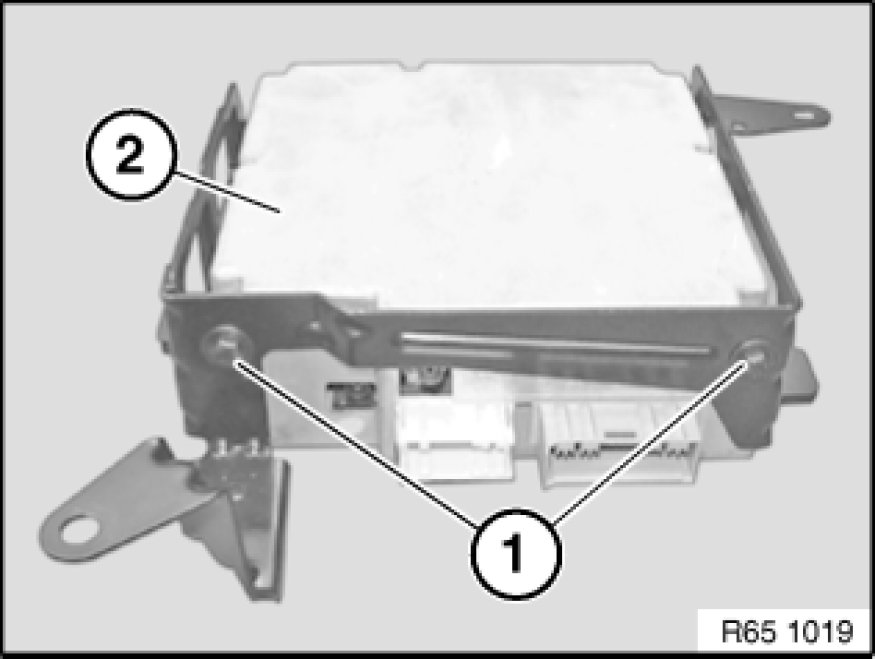

Release screws (1) on both sides and remove video module (2) from bracket.





Replacement:
Carry out programming/coding Programming and Relearning.
