Home >> BMW >> 2011 >> 335is Convertible (E93) L6-3.0L Turbo (N54T) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Diagrams >> Electrical Diagrams >> Radio With Hands-Free Function

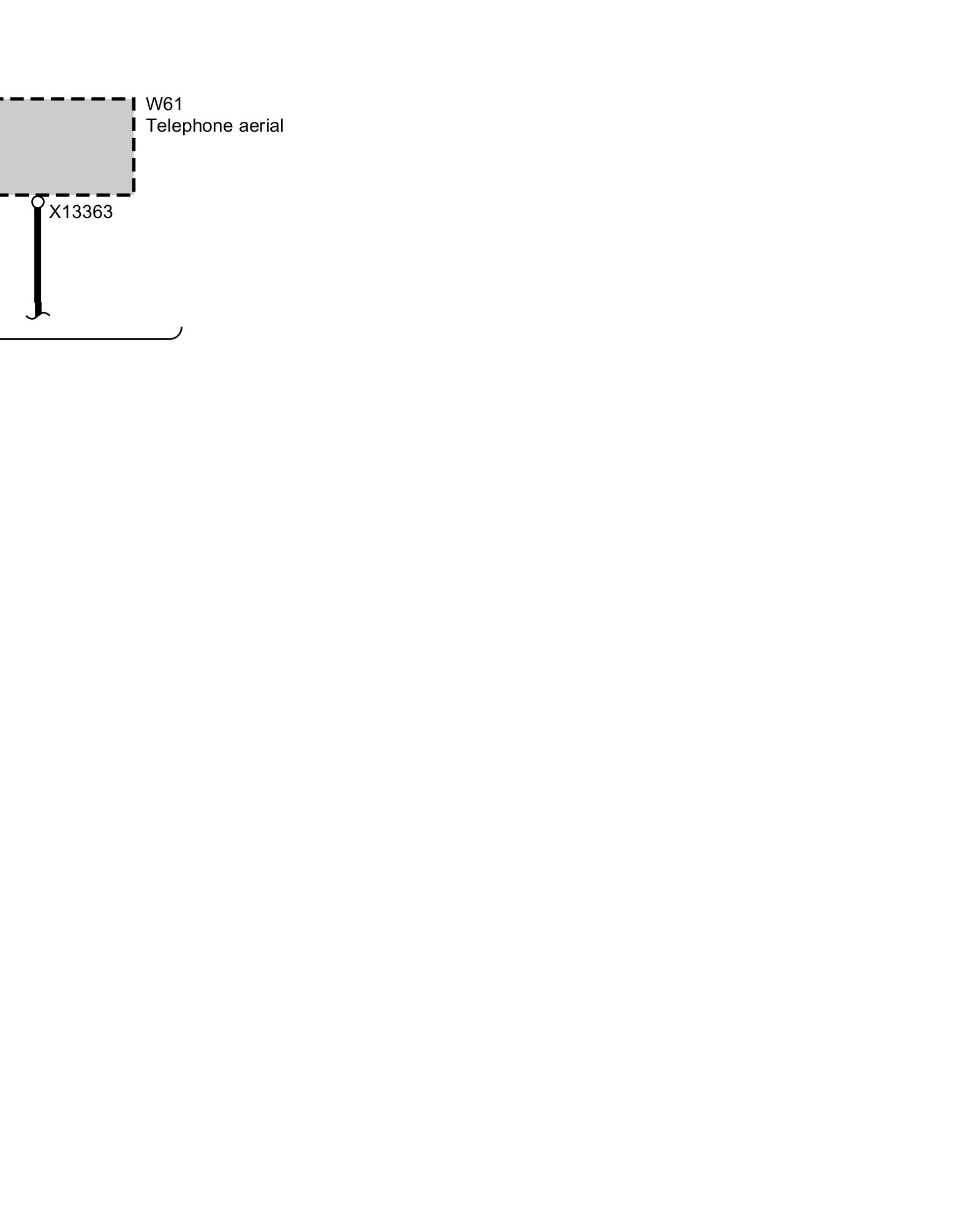

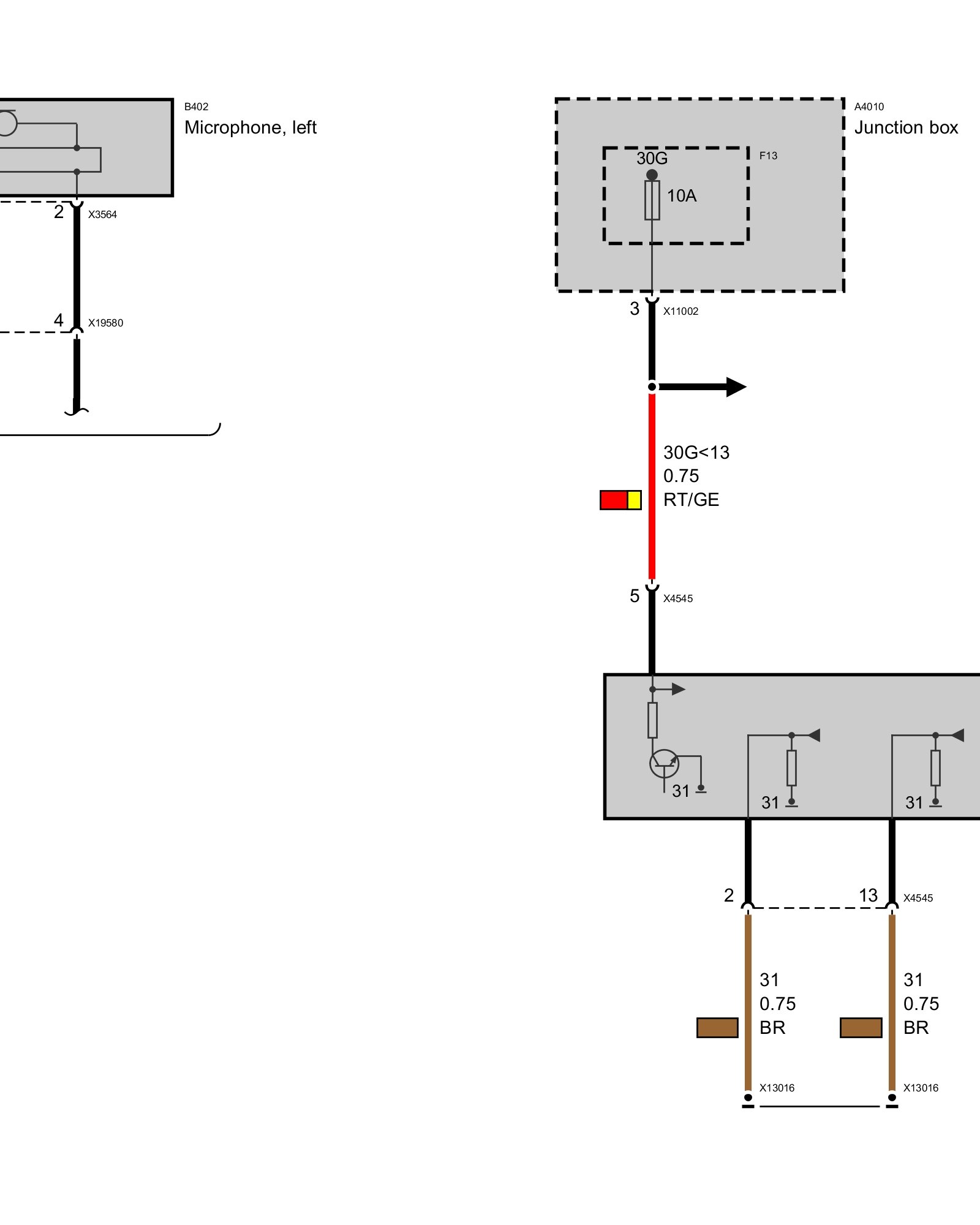

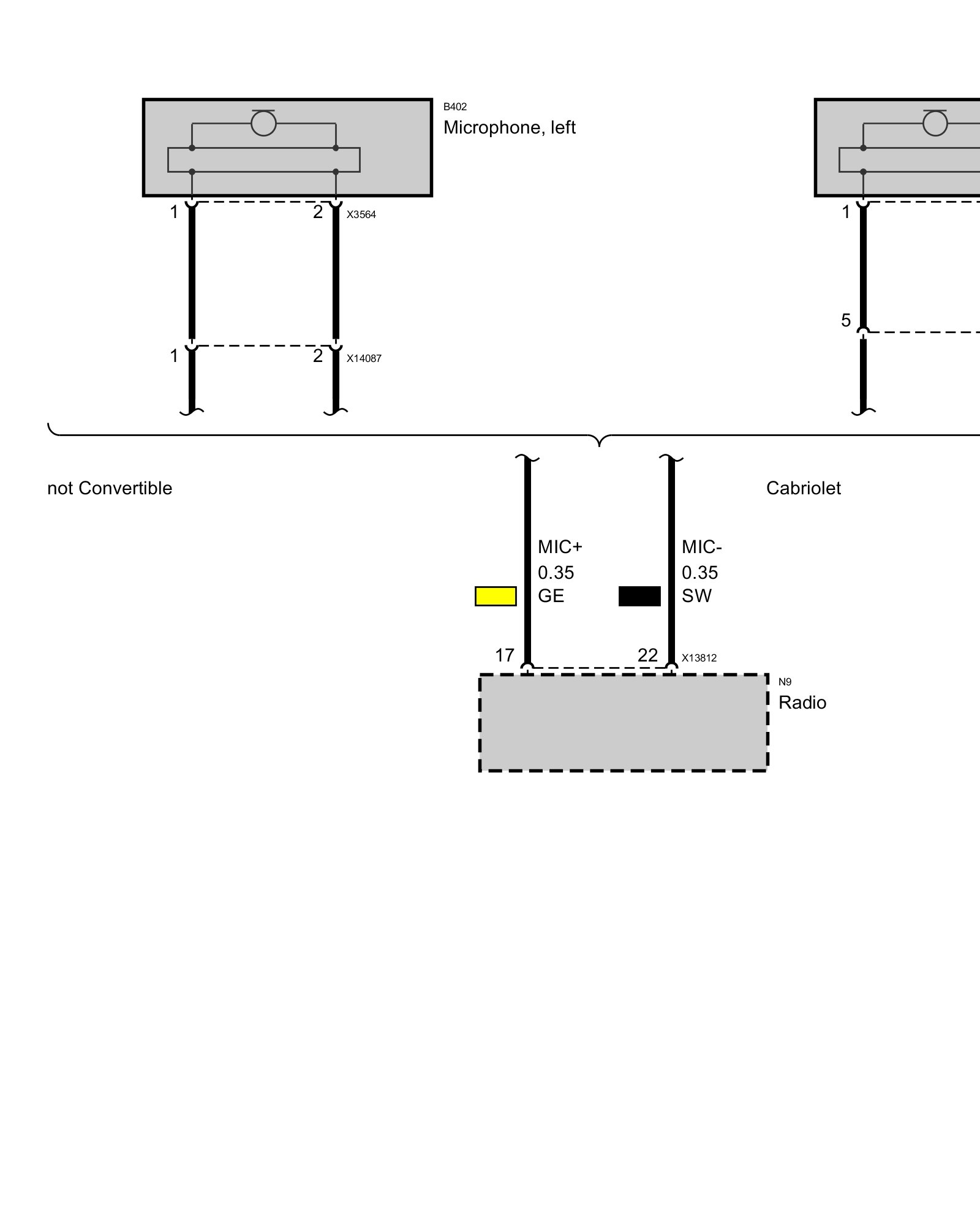

Radio With Hands-Free Function

Radio With Hands-Free Function
