11 61 365 Replacing Left Charge-Air Duct

11 61 365 Removing And Installing/Replacing Front Left Charge Air Duct (N55)







Necessary preliminary tasks:
- Remove fan cowl.
- Remove front underbody protection.
- Loosen hose clamp (4) from rear charge air duct.

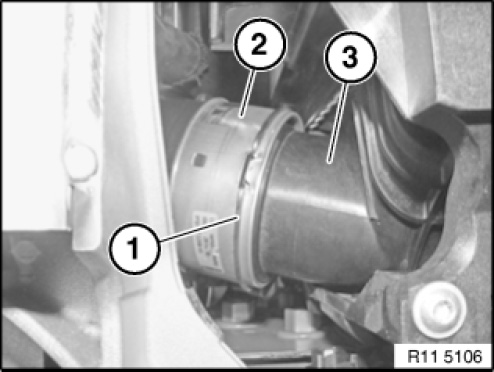

Unlock snap fastener (1).
Detach charge air duct (2) from charge air cooler connection (3).

Installation note:
The seal inside the snap fastener must be coated with anti-friction agent.
Charge air duct (2) must snap audibly into place.







Assemble engine.
