13 .. ... Removing Intake Duct
13 .. ... Removing intake duct (N55)

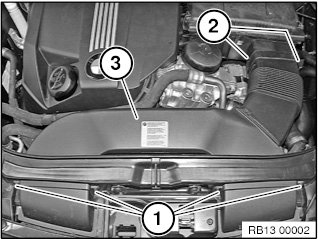

Release screws (1).
Tightening torque 13 71 1AZ.
Unlock intake port on side clamps (2) and pull off the air filter housing.
Remove intake port (3).
:¤:
Release screws (1).
Tightening torque 13 71 1AZ.
Unlock intake port on side clamps (2) and pull off the air filter housing.
Remove intake port (3).
