Replacing Right Engine Support Arm

22 11 100 Replacing right engine support arm (N55)

Necessary preliminary work:
- Secure engine in installation position.
- Remove front underbody protection.

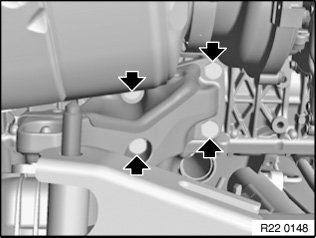

Release screws.

Remove engine support arm from engine.

Tightening torque 22 11 3AZ.

Note:
Graphic, N54 engine.

F?:
