Replacing Left Engine Support Arm

22 11 110 Replacing left engine support arm (N55)





Necessary preliminary work:
- Secure engine in installation position
- Remove charge air duct.

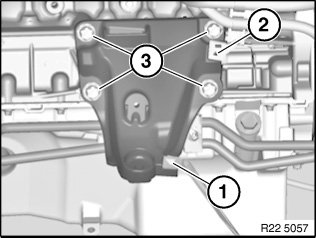

Release earth strap (1) from engine support arm.

Release screw (2) and remove holder.

Release screws (3).

Remove engine support arm.

Tightening torque 22 11 3AZ.

Graphic, N54 engine.
