Replacing Left Engine Mount

22 11 011 Replacing left engine mount (N55)





Necessary preliminary work:
^ Remove left engine support arm
^ Remove stiffening strut

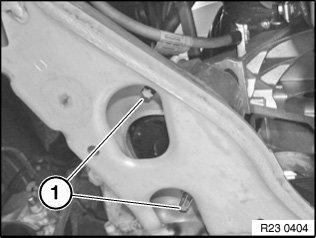

Release screws (1) and remove engine mount.

Tightening torque 22 11 1AZ.

Installation note:

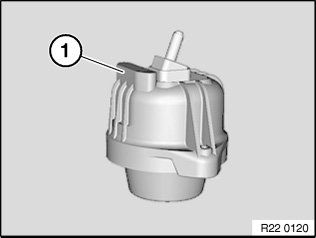

Rubber part (1) of engine mount must point to centre of vehicle.

Engine mount identification:





Right engine mount
- Even component number

Left engine mount
- Odd component number
