Home >> BMW >> 2011 >> 335Cic Convertible (E93) L6-3.0L Turbo (N55) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Diagnostic Module, Fuel Tank Leakage

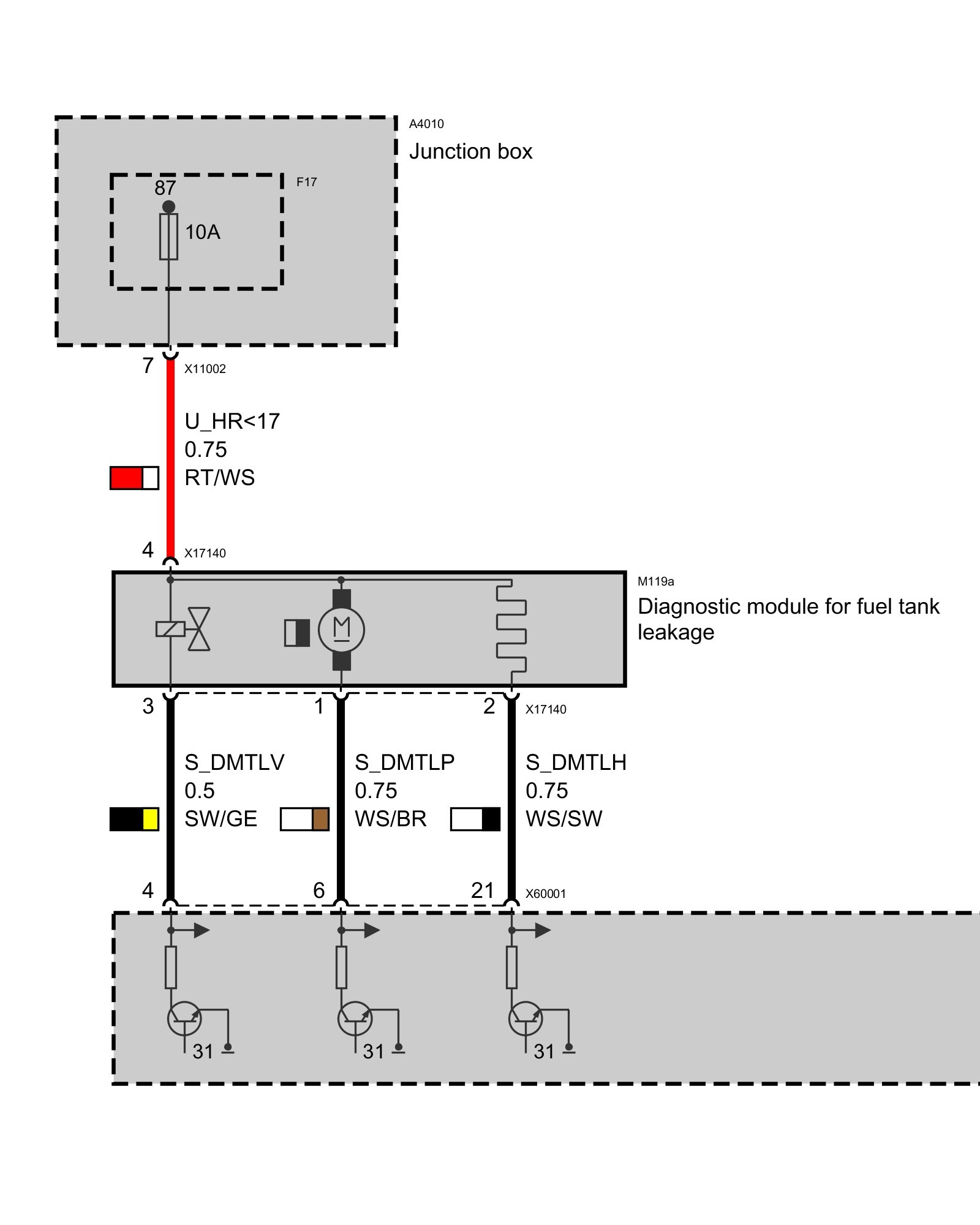

Diagnostic Module, Fuel Tank Leakage



Diagnostic Module, Fuel Tank Leakage
