65 20 240 Removing and Installing/Replacing Telephone Antenna




65 20 240 - Removing and installing/replacing telephone antenna





Necessary preliminary tasks:
- Remove front wheel arch trim

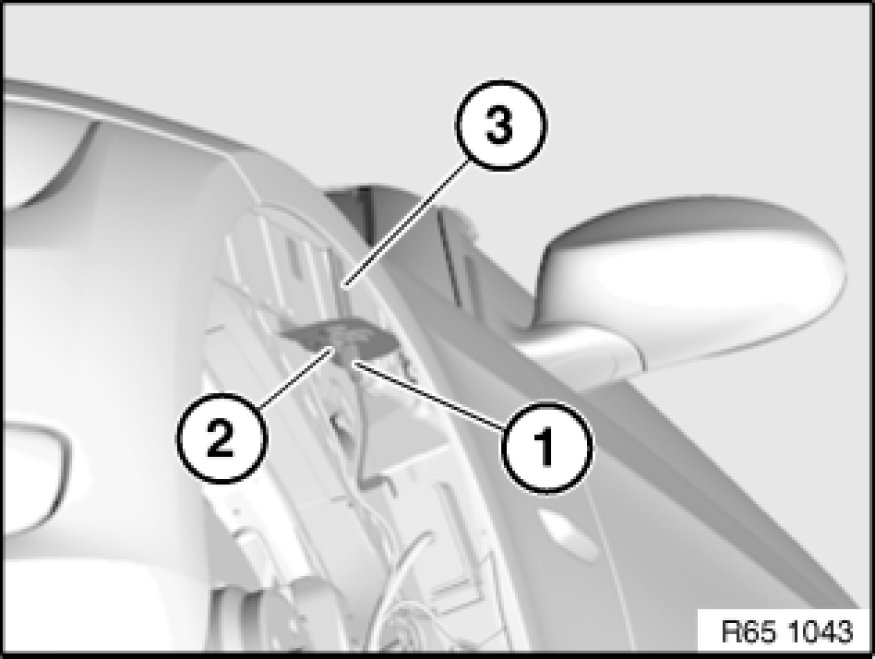

Disconnect plug connection (1).
Release nut (2), turn telephone antenna (3) and feed out.
