Home >> BMW >> 2011 >> 328xi Coupe AWD (E92) L6-3.0L (N52K) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning Functions (IHKA Integrated Automatic Heating/Air Conditioning) >> As 0F 09/07

As 0F 09/07

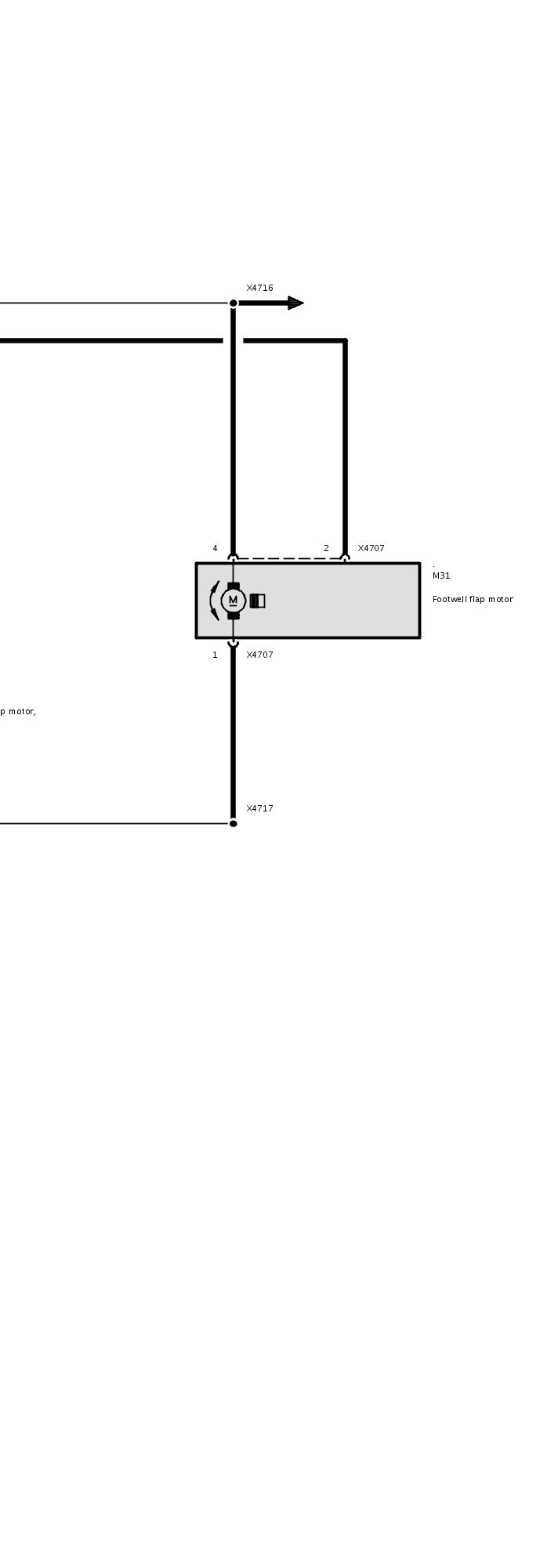

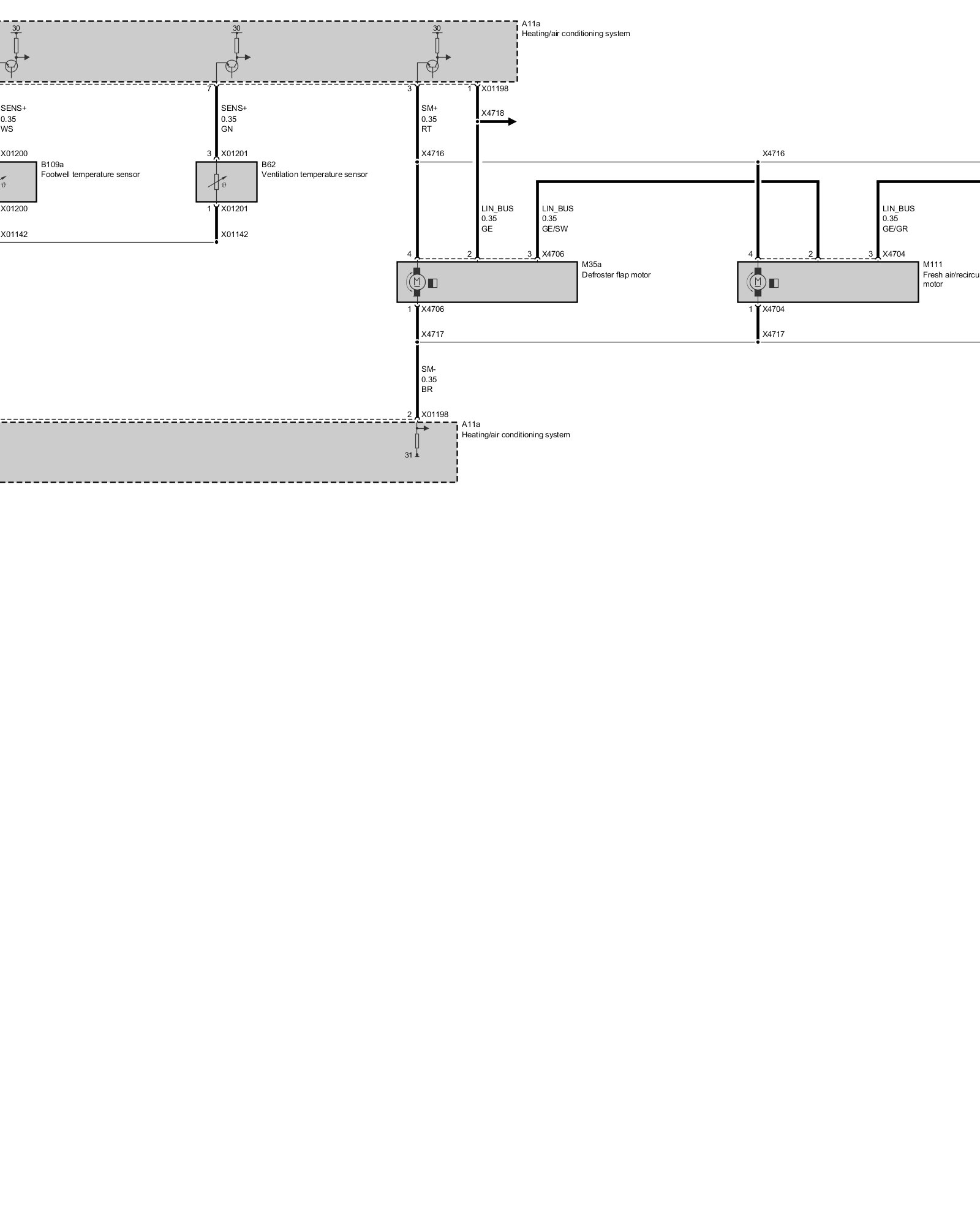

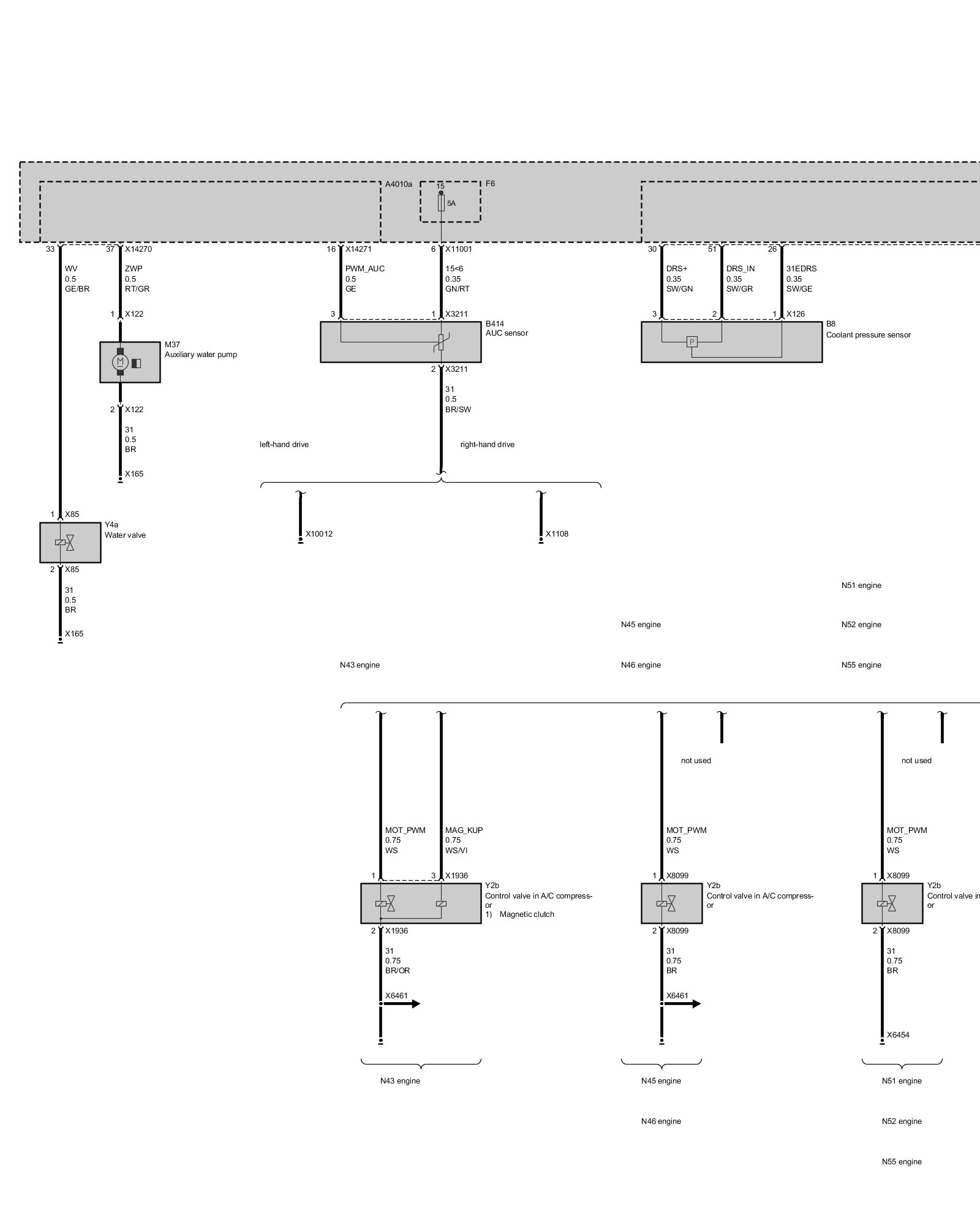

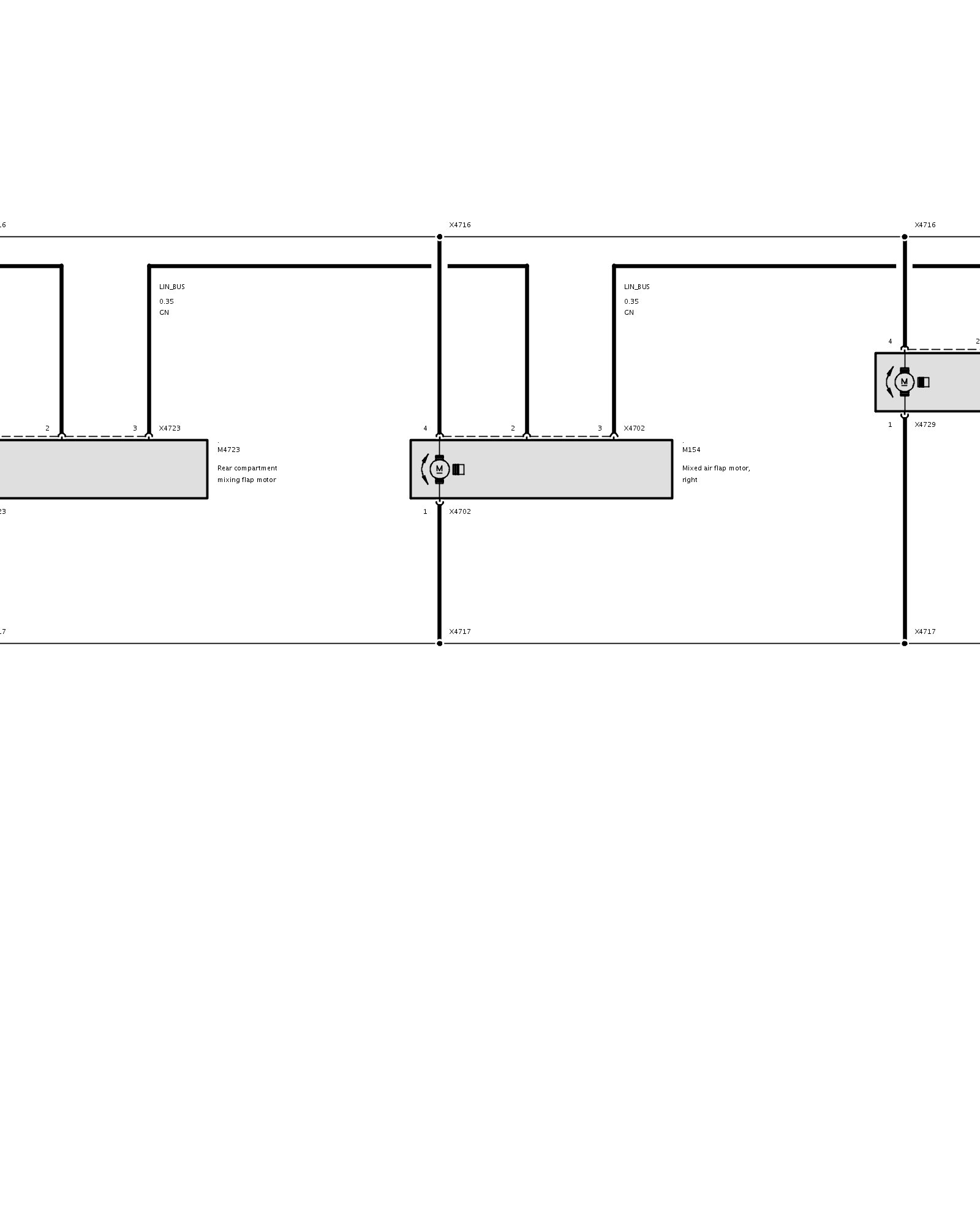

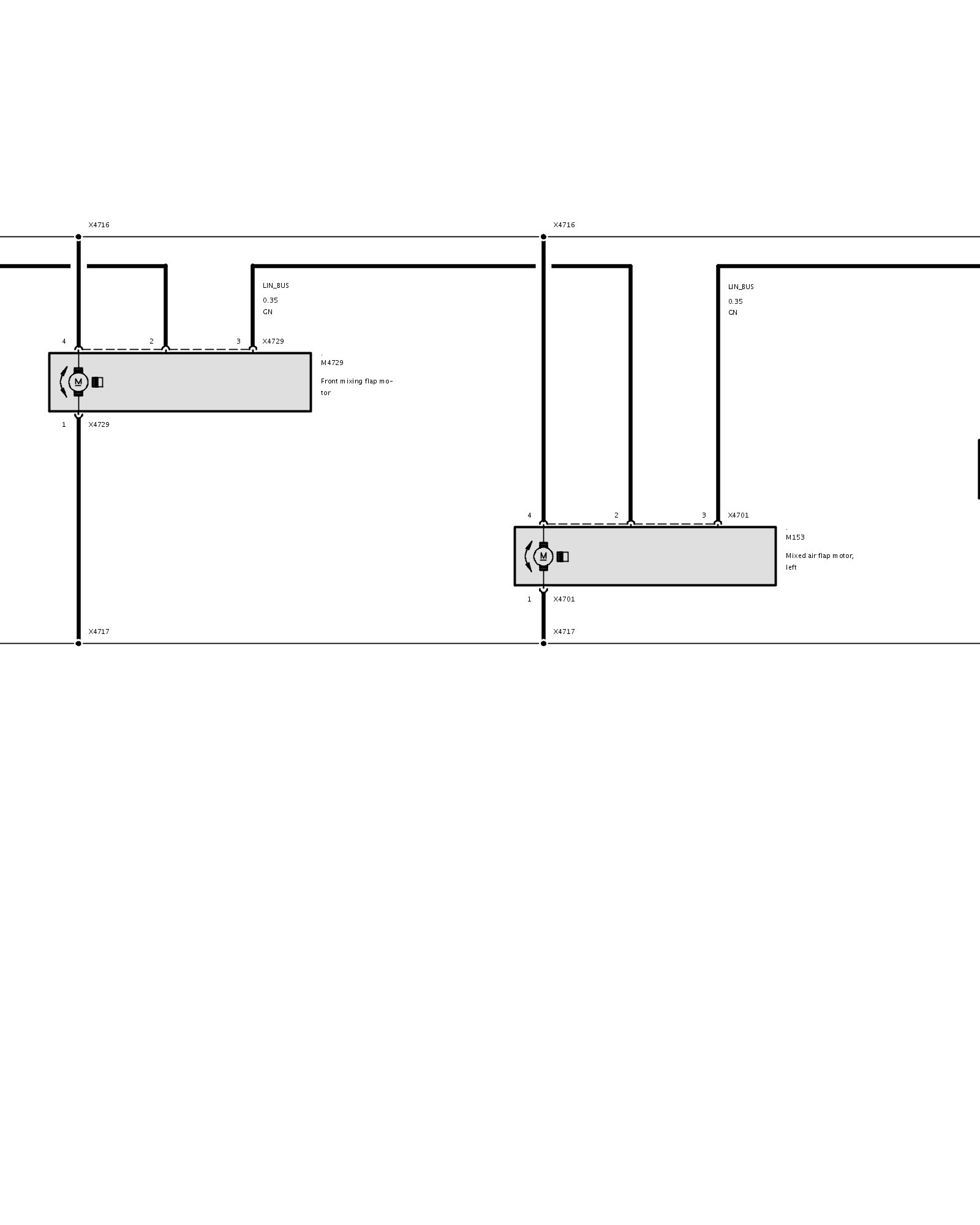

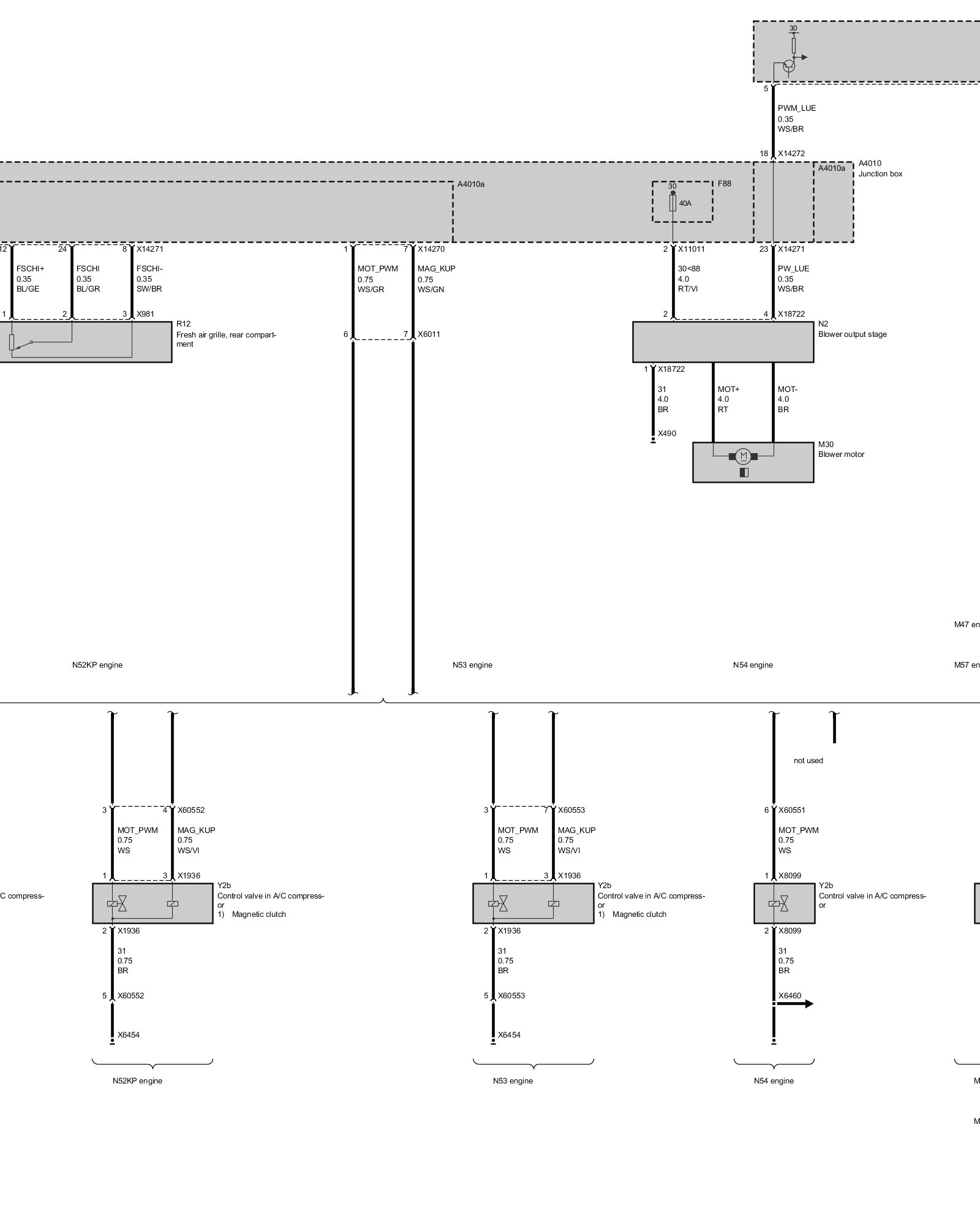

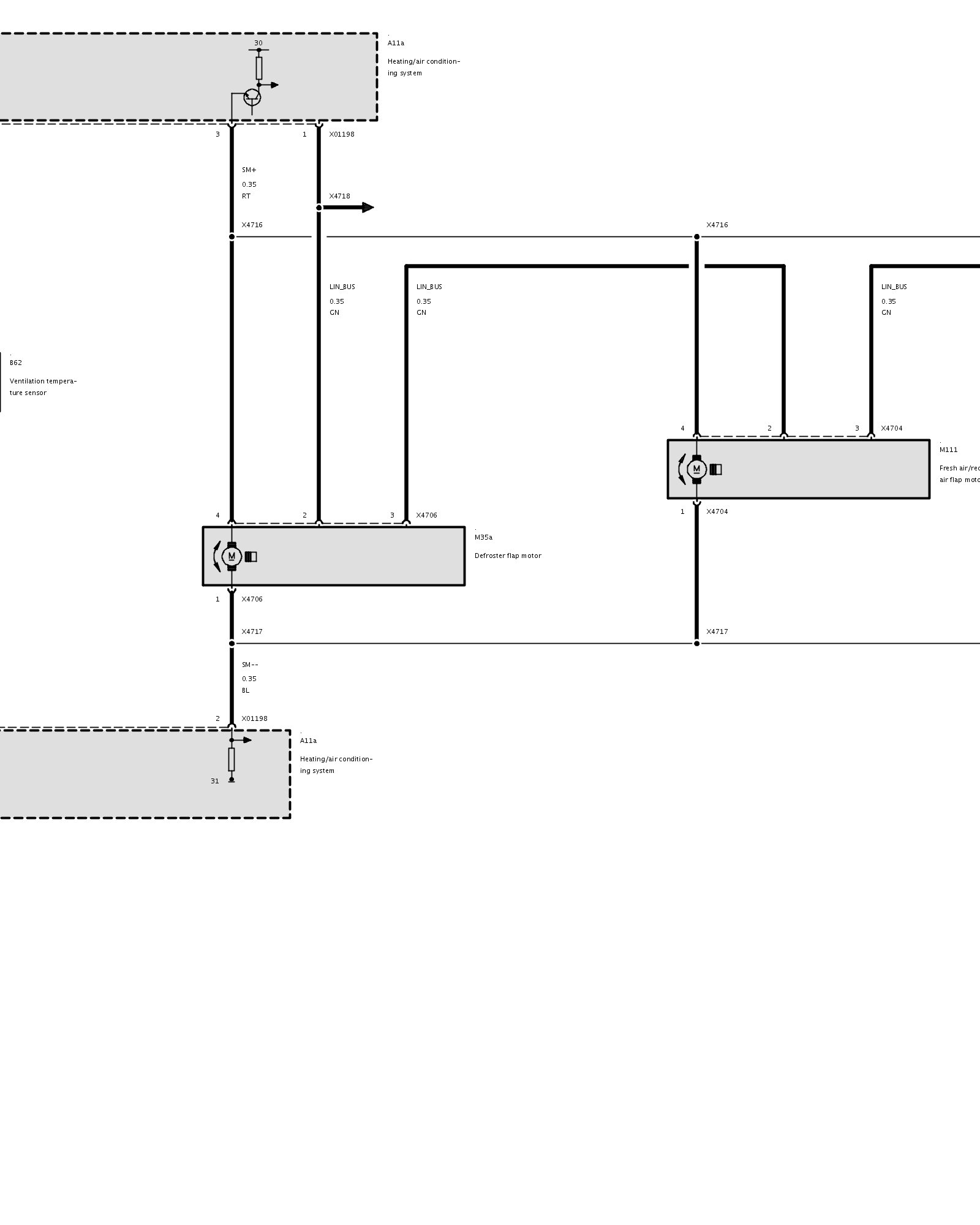

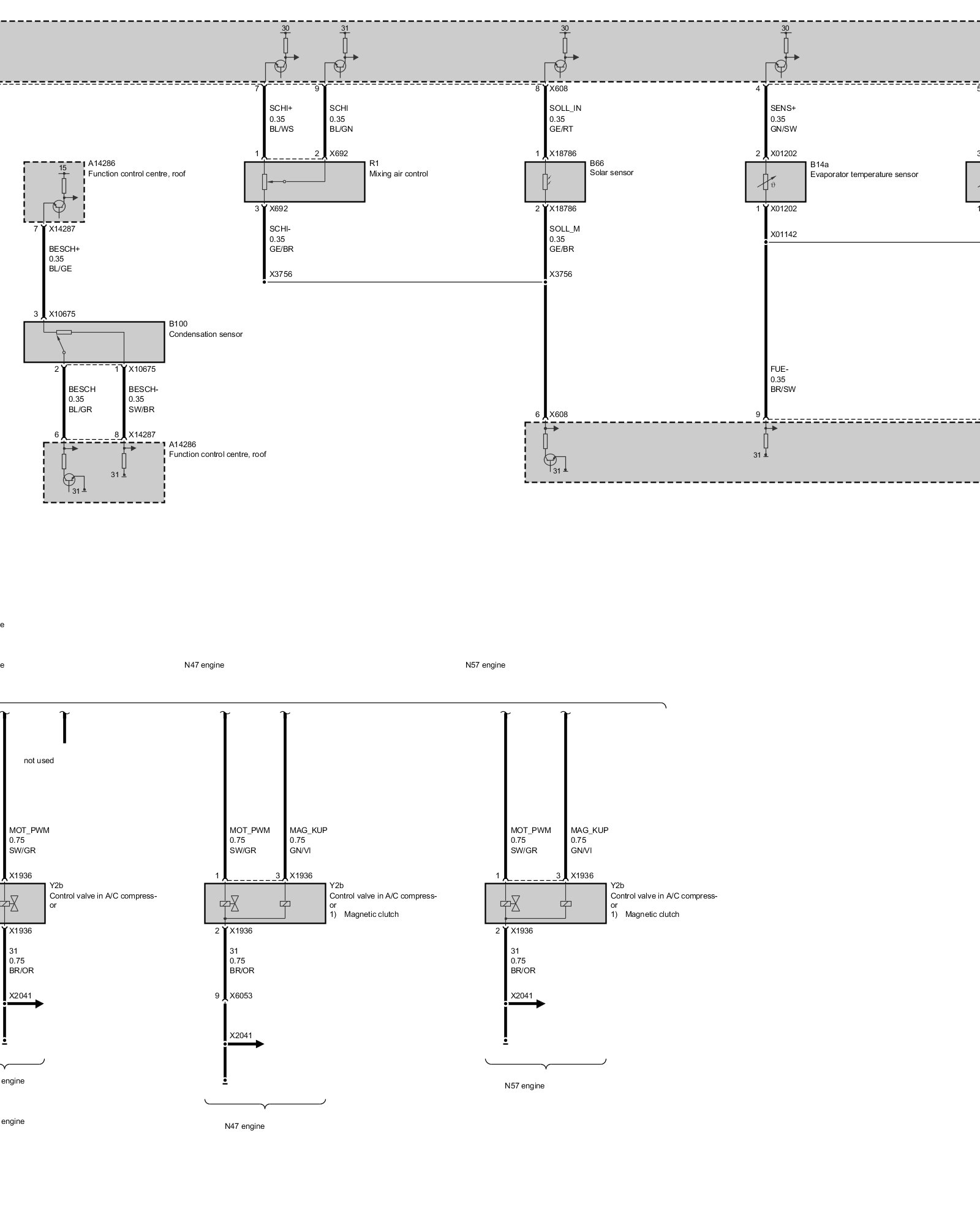

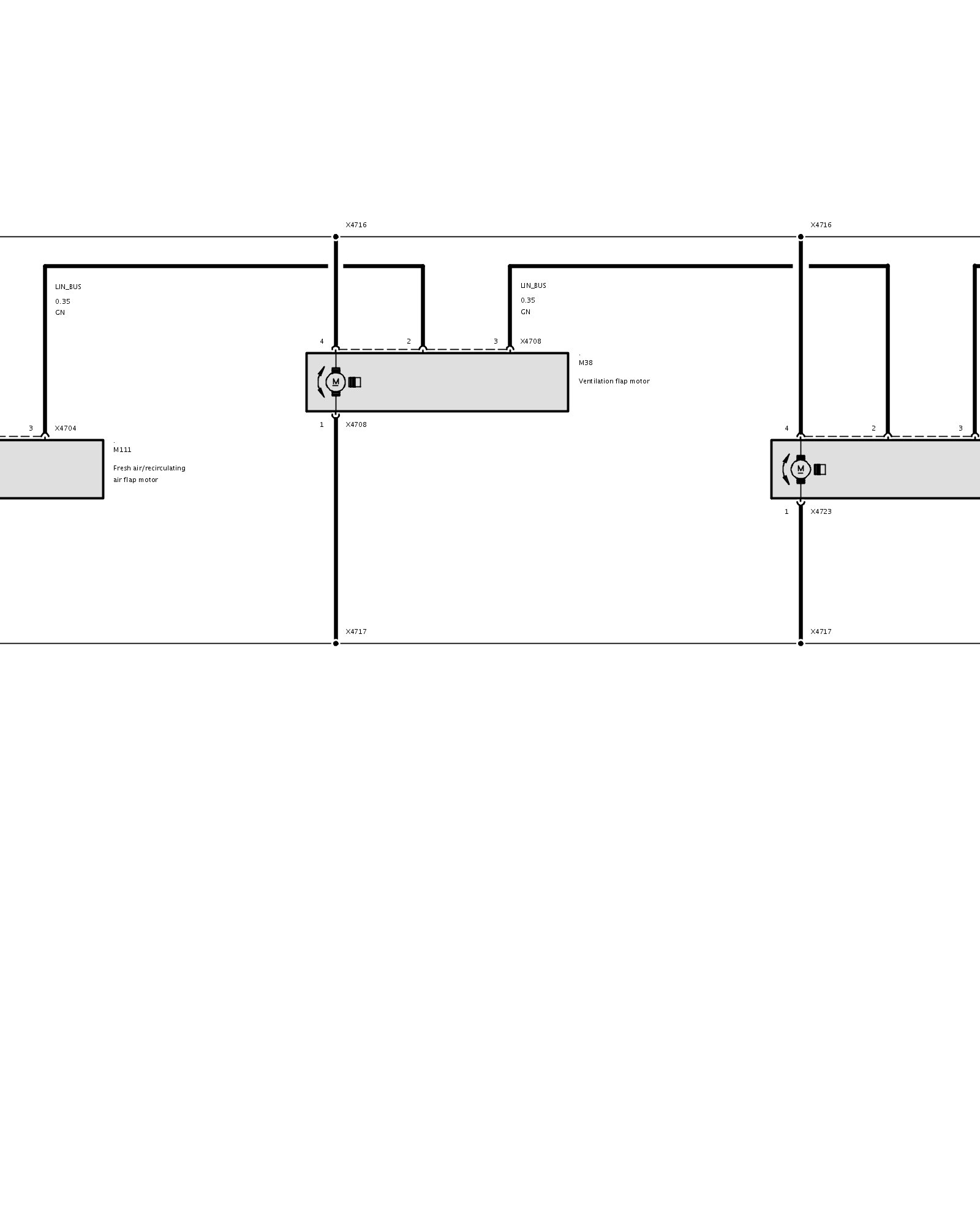

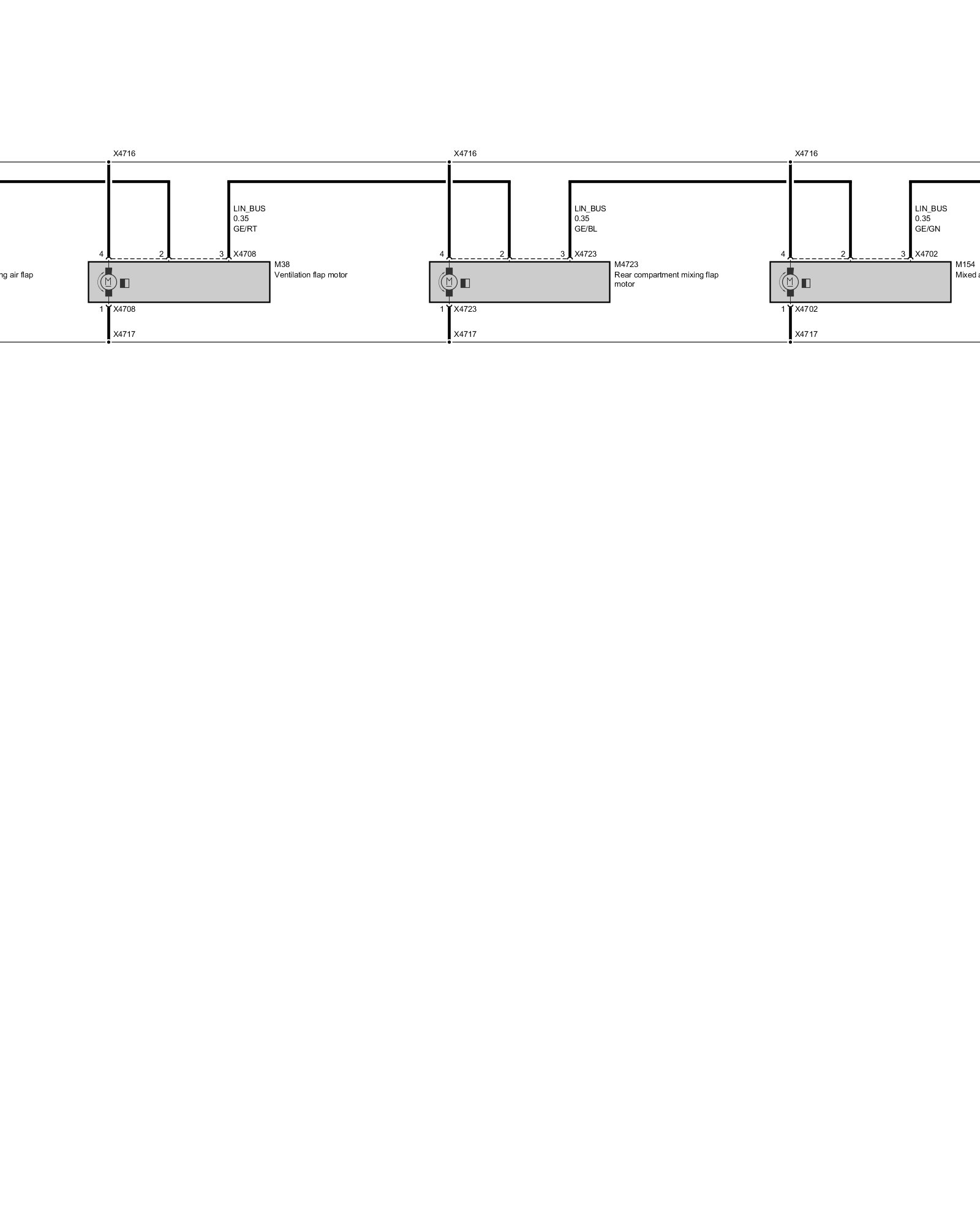

Heating and Air Conditioning Functions

As of 09/07
