34 33 071 Replacing Vacuum Hose for Brake Booster (on Brake Booster)

34 33 071 Replacing vacuum hose for brake booster (N52 on brake booster)





Necessary preliminary tasks:
^ Read and comply with General Information.
^ Remove lower section of microfilter housing

Important!
Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster.

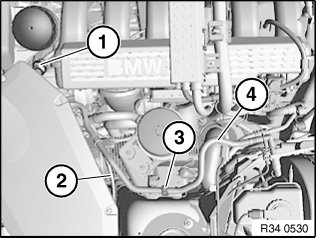

Unlock quick-release fastener (1) and pull out vacuum line (2).





Unfasten hose clip or quick-release fastener (1).

Installation:
Replace hose clip.

Pull off vacuum hose (2).

Unclip vacuum line (4) from fixture (3) and feed out
