51 11 X03 Removing and Installing/Replacing Cover Cap on Spray Nozzle For Headlight Washer System on Left or Right

51 11 X03 - Removing and installing/replacing cover cap on spray nozzle for headlight washer system on left or right





Special tools required:





Important!
Risk of damage!

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

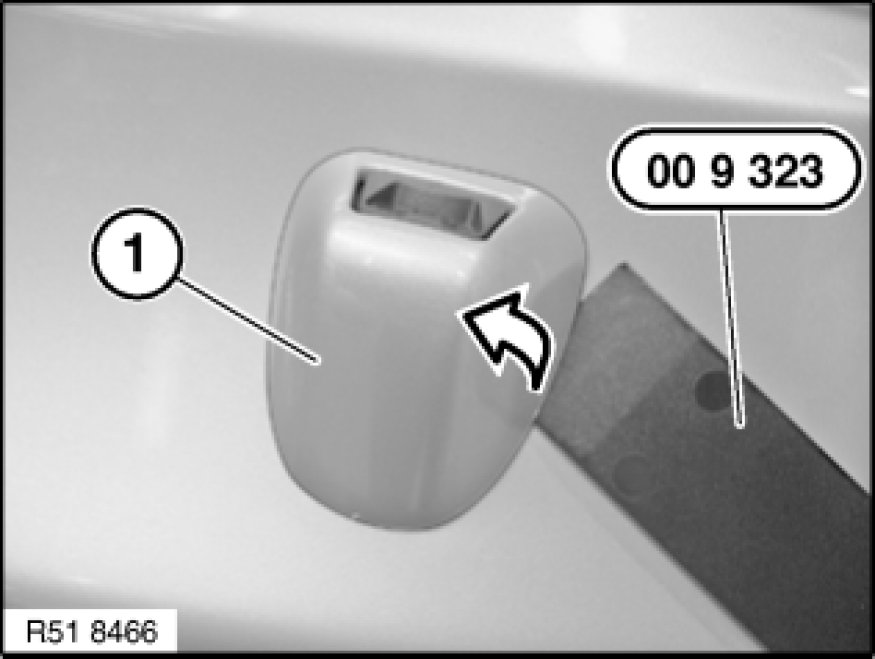

Release cover cap (1) with special tool 00 9 323 from catches and remove towards top.





Installation Note:

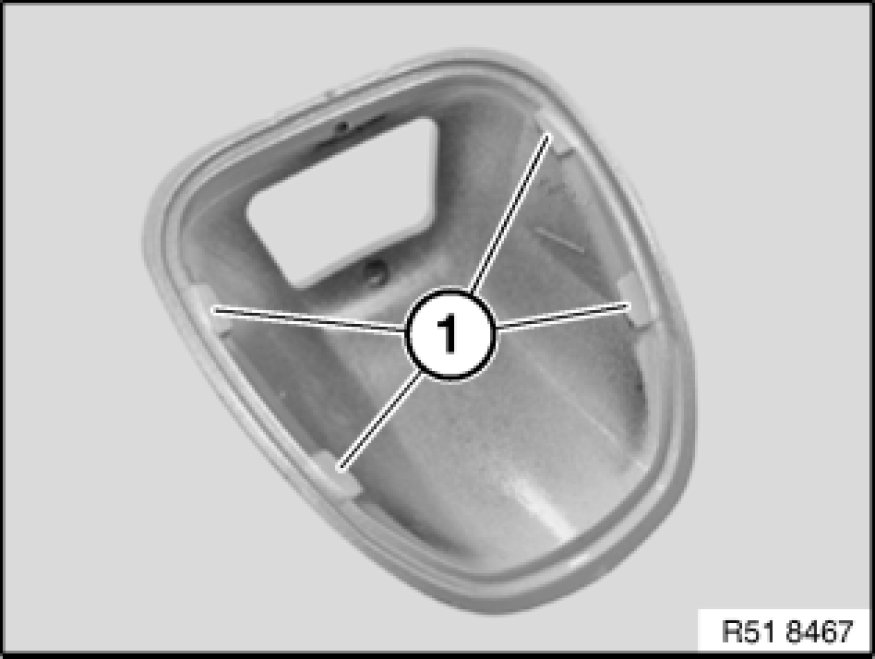

Catches (1) must not be damaged
