135i Convertible (E88) L6-3.0L Turbo (N55)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
>>

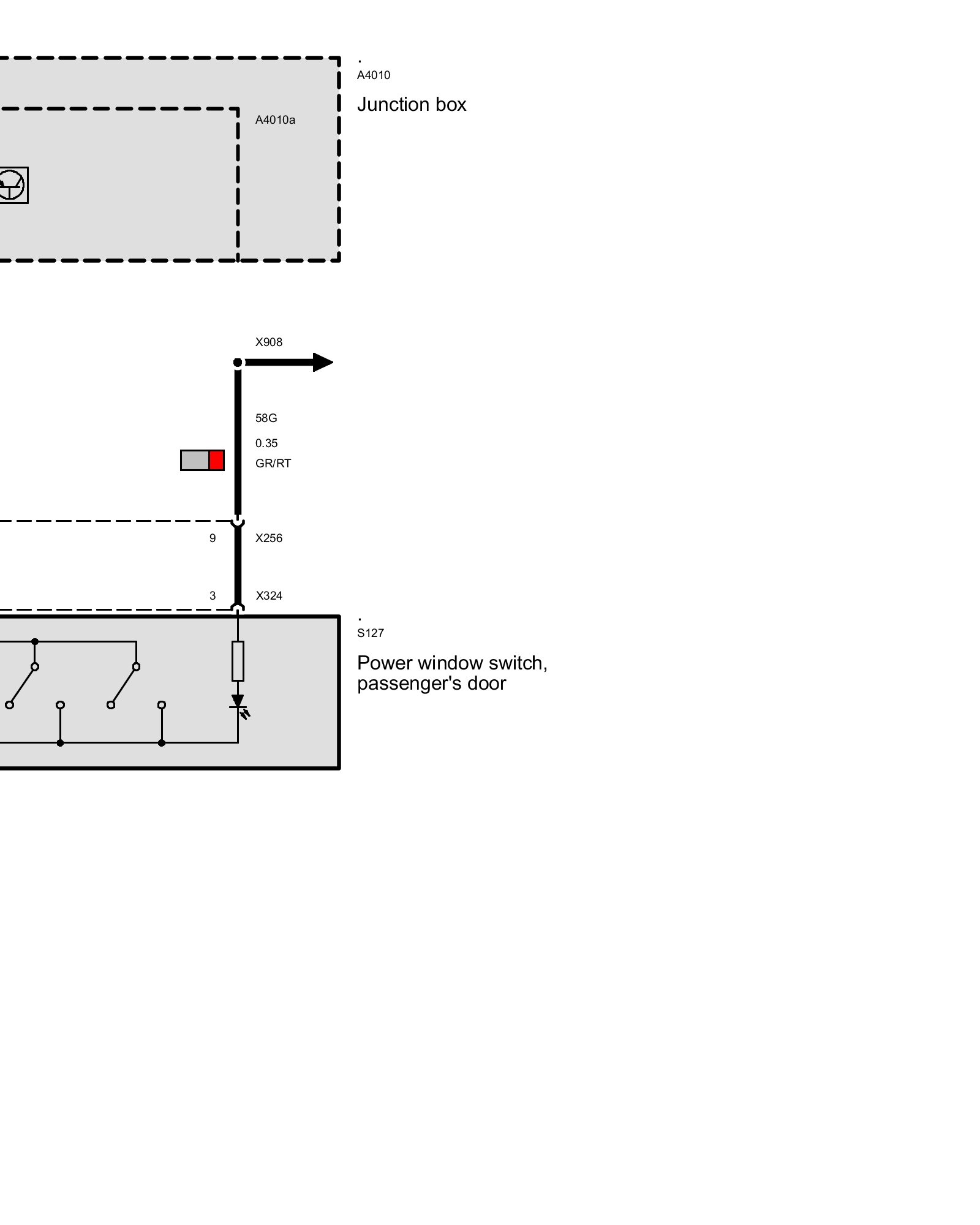

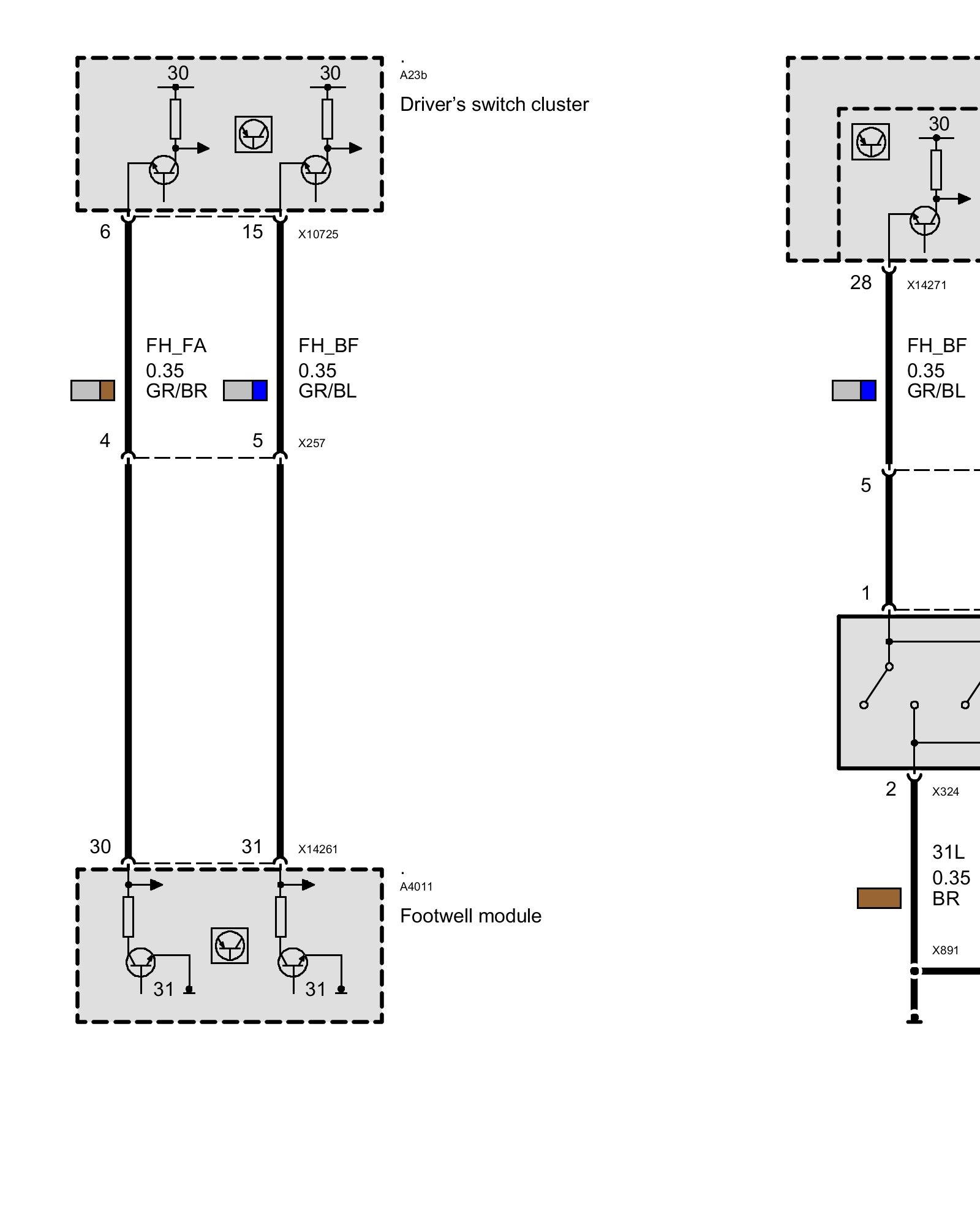

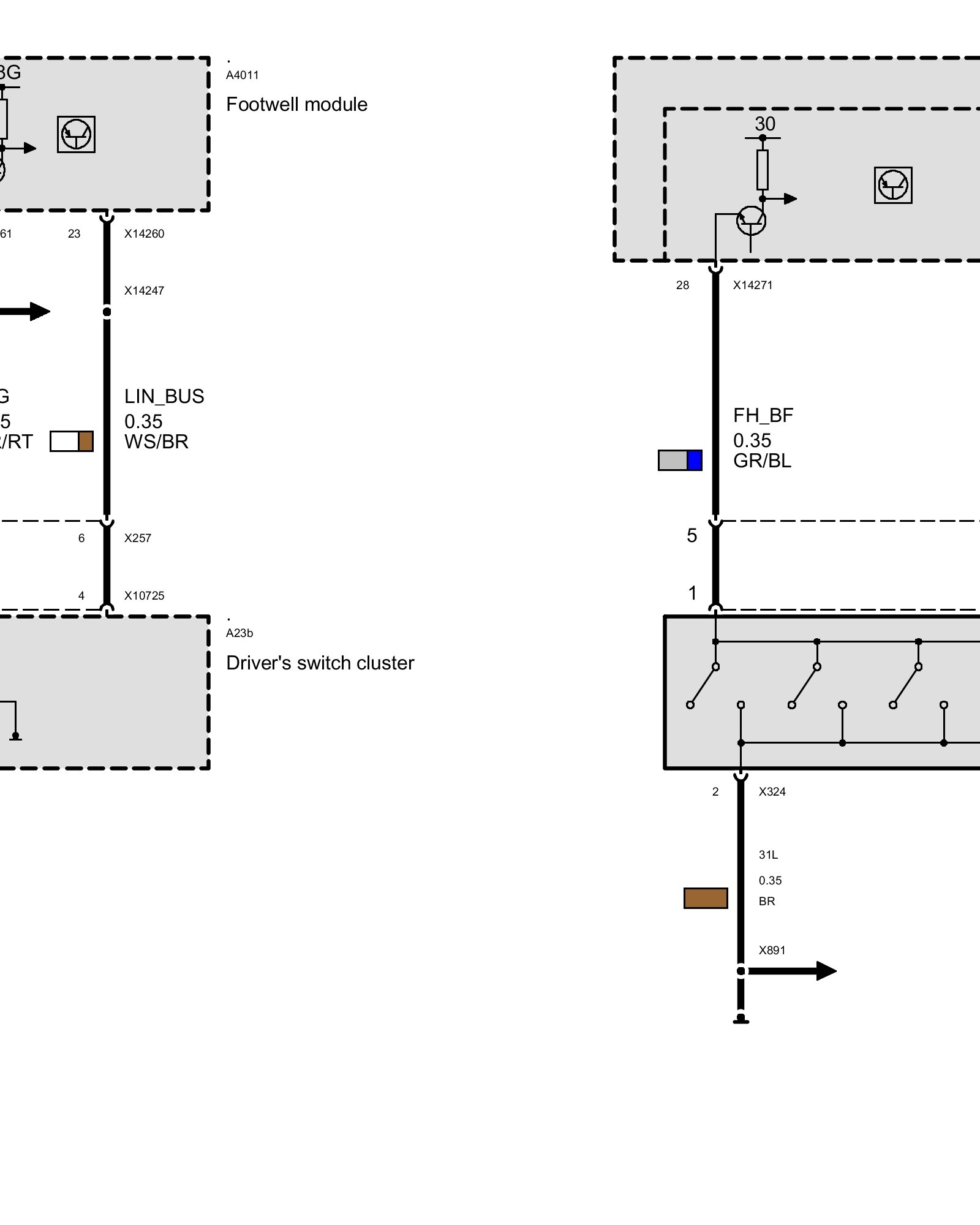

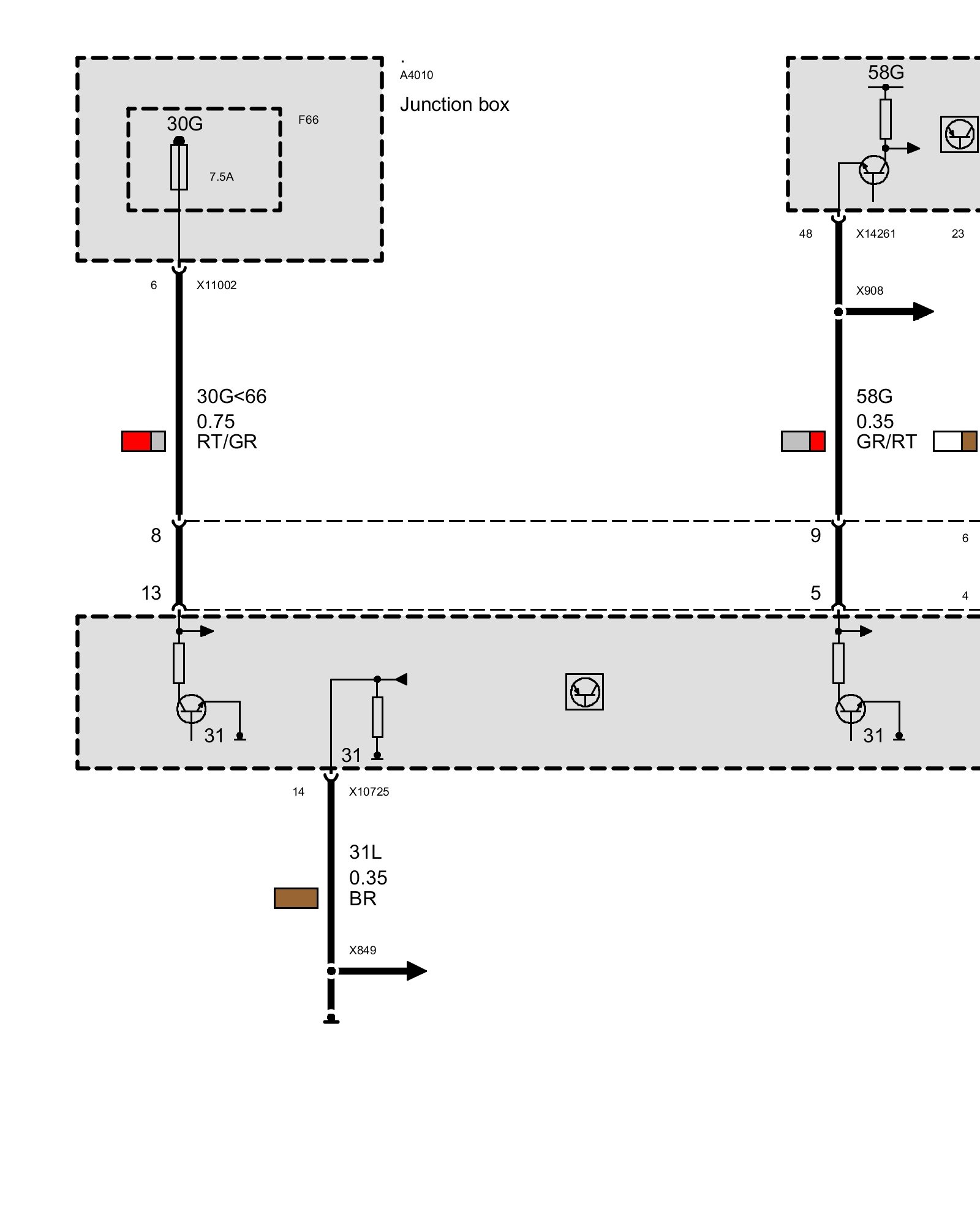

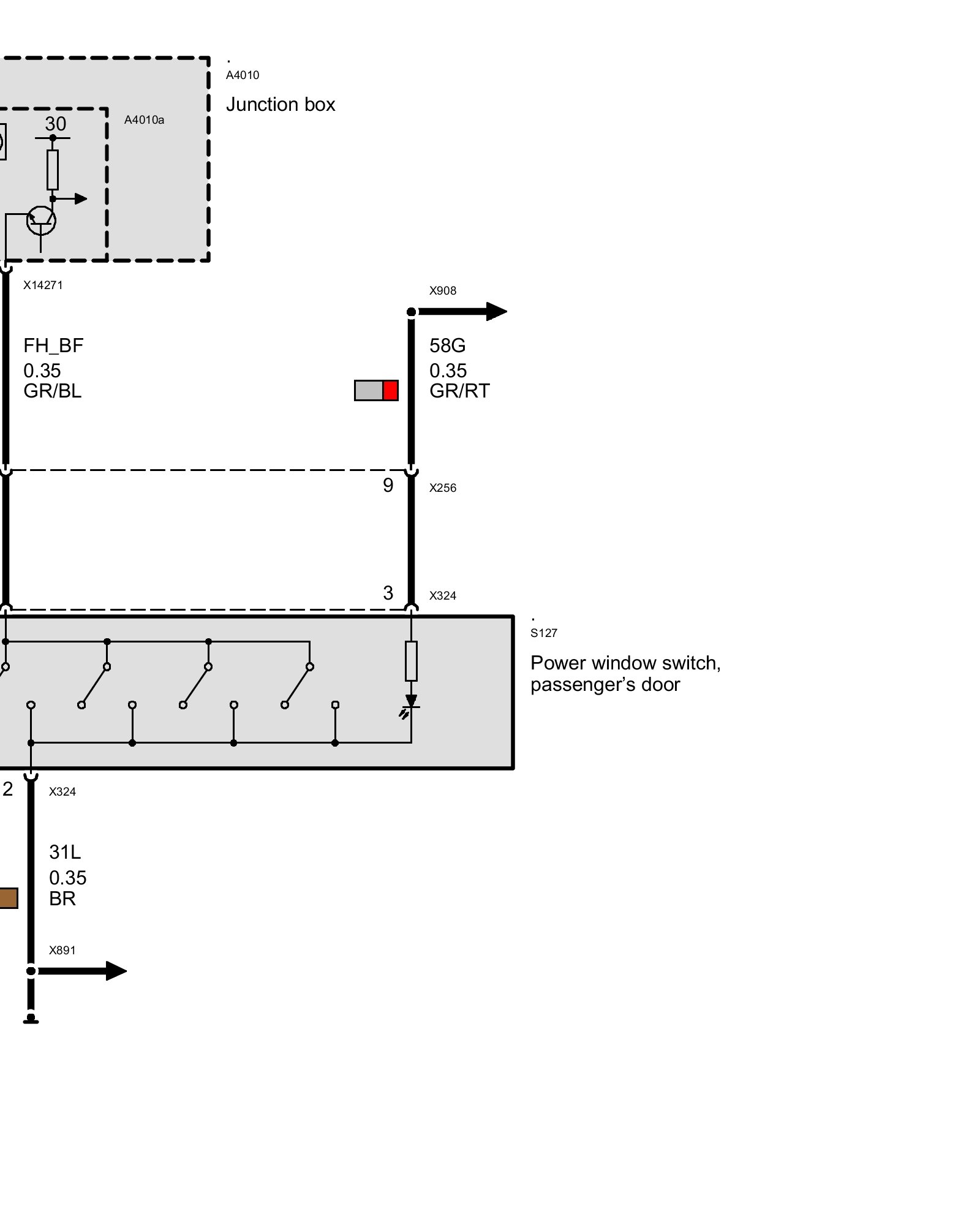

Power Window Inputs
Power Window Inputs
Power Window Inputs
Without Switch Block With LIN Bus
With Switch Block With LIN Bus As Of 09/07
